Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

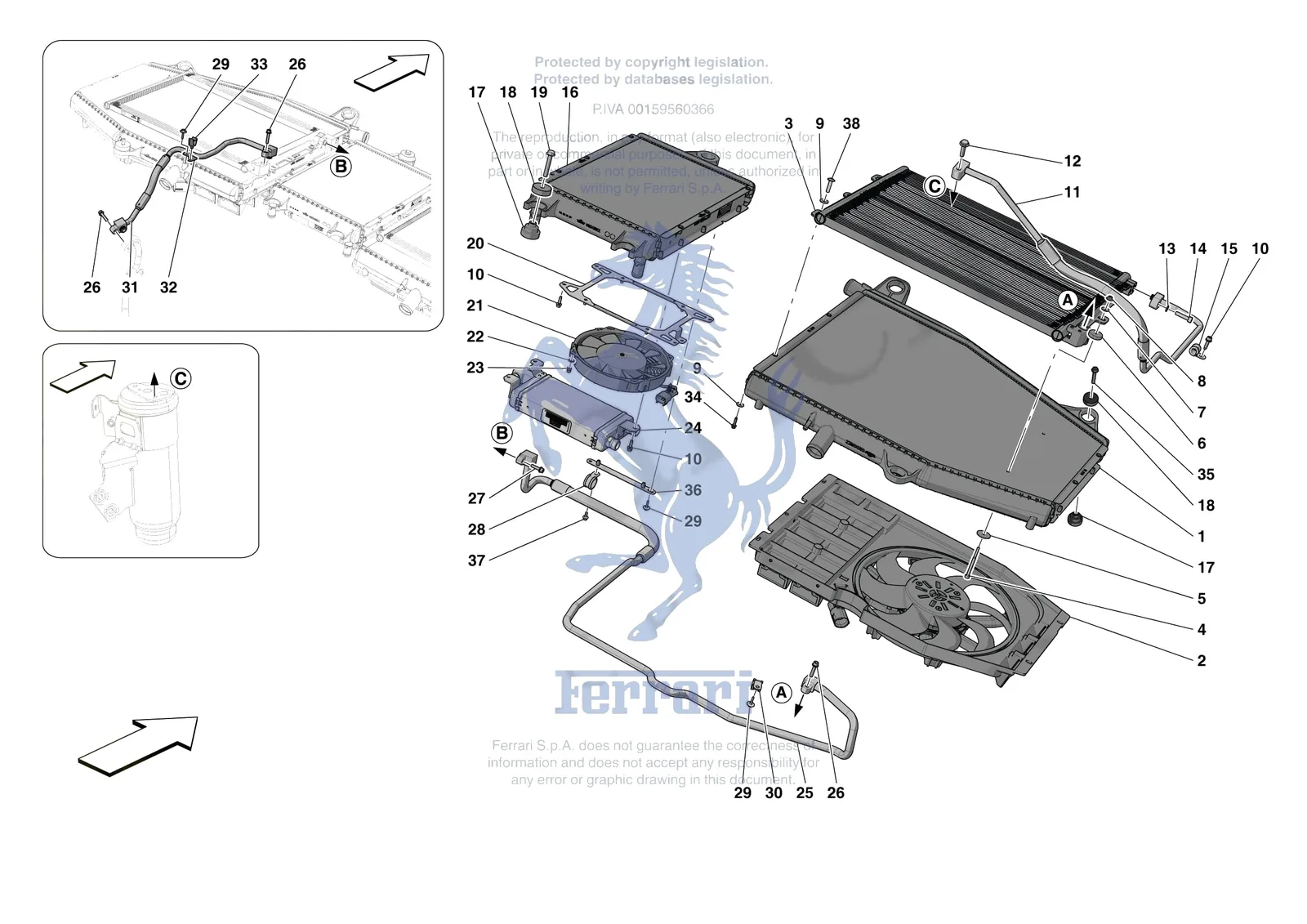

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari SF90 Spider, with 49 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1958284Ferrari Radiatore Acqua Dx - 958284$2,631.07Special order, ships in 7-14 days
1958281Ferrari Radiatore Acqua Sx - 958281$2,631.07Special order, ships in 7-14 days
2968998Ferrari Cappa Ventola Dx - 968998$1,378.85Special order, ships in 7-14 days
2968997Ferrari Cappa Ventola Sx - 968997$1,378.85Special order, ships in 7-14 days
3262836Ferrari A/C Condenser - 262836$1,308.23Available, ships in 3-6 days
3798958Ferrari Condensatore 2 Pass - 798958$874.21Special order, ships in 7-14 days
4866663Ferrari Allen Head Bolt M4 X 60 Gambo L - 866663$21.64Special order, ships in 7-14 days
5883284Ferrari Flat Washer 5.5 X 25 - 883284$3.03Special order, ships in 7-14 days
6883283Ferrari Distanziale 4 X 25 X - 883283$7.63Special order, ships in 7-14 days
712638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
8899480Ferrari Self-Locking Nut M4 - 899480$0.84Special order, ships in 7-14 days
913577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
1011566524Ferrari Screw M5X20 - 11566524$0.98Available, ships in 3-6 days
11860444Ferrari Tubo Da Condens. A Filtro D - 860444$320.06Special order, ships in 7-14 days
1211626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
1211612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
1314499378Ferrari Washer - 14499378$1.55Special order, ships in 7-14 days
1414305487Ferrari Allen Head Bolt M 6X 25 - 14305487$1.72Special order, ships in 7-14 days
1510441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
16824534Ferrari Radiatore H2O Raffr. Inverte - 824534$984.88Special order, ships in 7-14 days
17237478Ferrari Mounting - 237478$36.86Available, ships in 3-6 days
18247751Ferrari Washer - 247751$11.56Available, ships in 3-6 days
1916287734Ferrari Screw M8 x 50 - 16287734$2.59Available, ships in 3-6 days
20823872Ferrari Fan Mounting Bracket - 823872$68.92Special order, ships in 7-14 days
21319950Ferrari Electric Fan For Intercooler - 319950$664.78Special order, ships in 7-14 days
2214446624Ferrari Washer - 14446624$0.13Available, ships in 3-6 days
23168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
24940392Ferrari Gear Oil Radiator - 940392SupersededOrder 954662 instead
24954662Ferrari Gear Oil Radiator - 954662$960.25Special order, ships in 7-14 days
25860879Ferrari Tubo Collegamento Condensa - 860879$566.30Special order, ships in 7-14 days
26231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
27231620Ferrari/Maserati Screw - 231620$0.58In stock
2810441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
2915699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
3010441590Ferrari P Clip Bracket With Sheath 16mm - 10441590$0.98Available, ships in 3-6 days
31912288Ferrari Tubo Mandata Freon A Condens - 912288$344.69Special order, ships in 7-14 days
32952089Ferrari Bracket - Freon Delivery Pipe to Condensor - 952089$17.46Special order, ships in 7-14 days
33323388Ferrari Clip - 323388$6.10Special order, ships in 7-14 days
34747853Ferrari Screw - 747853$1.48Special order, ships in 7-14 days
3411566724Ferrari Screw 5X25 - 11566724$3.91Available, ships in 3-6 days
35986344Ferrari Flanged Screw M8 X 50 - 986344$4.56Special order, ships in 7-14 days
36871061Ferrari Piastra Fiss. Tubo Clima Su - 871061$29.52Special order, ships in 7-14 days
37256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
