Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0065)

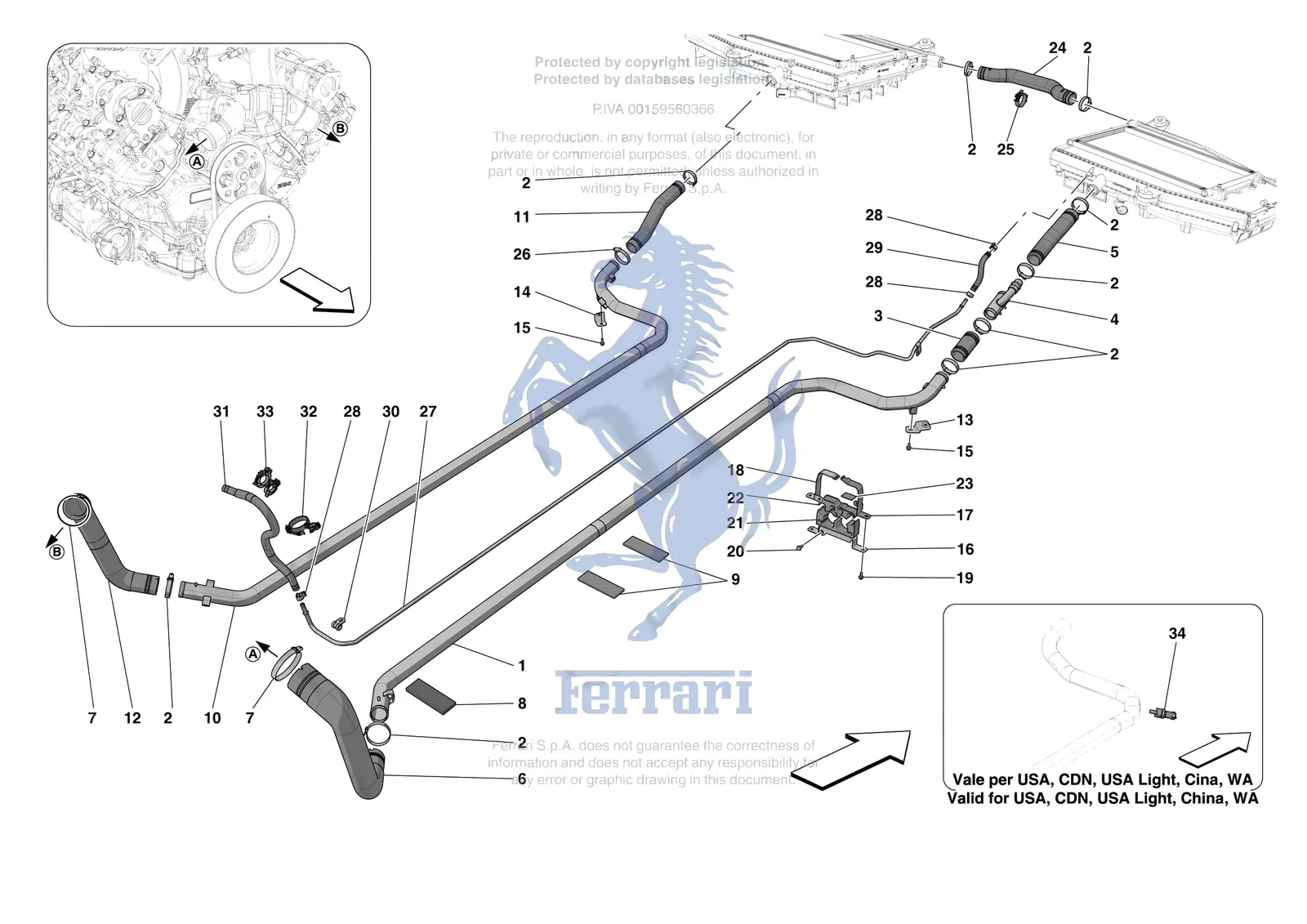

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari SF90 Spider, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0065.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10861470 | Ferrari Collar - 10861470 | Superseded | Order 262383 instead | |
| 10861570 | Ferrari Collar - 10861570 | Superseded | Order 262383 instead | |
| 1 | 848528 | Ferrari Tubo Ritorno H2O Sottopia - 848528 | $418.56 | Special order, ships in 7-14 days |
| 2 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 3 | 867587 | Ferrari Manicotto A Tubo Sottopia - 867587 | $61.52 | Special order, ships in 7-14 days |
| 4 | 867586 | Ferrari Tubazione Rigida 3 Vie - 867586 | $214.19 | Special order, ships in 7-14 days |
| 5 | 867585 | Ferrari Manicotto Uscita Radiator - 867585 | $91.08 | Special order, ships in 7-14 days |
| 6 | 790841 | Ferrari Manicotto Ritorno A Pompa - 790841 | $152.62 | Special order, ships in 7-14 days |
| 7 | 262383 | Ferrari Collar - 262383 | $6.10 | Available, ships in 3-6 days |
| 8 | 827819 | Ferrari Tampone 120X40X8 - 827819 | $5.14 | Special order, ships in 7-14 days |
| 8 | 895897 | Ferrari Tampone 120X40X8 - 895897 | $4.66 | Special order, ships in 7-14 days |
| 9 | 857838 | Ferrari Tampone 120X40X5 - 857838 | $4.16 | Special order, ships in 7-14 days |
| 10 | 899141 | Ferrari Tubo Mandata H2O Sottopianal - 899141 | $566.30 | Special order, ships in 7-14 days |
| 10 | 848510 | Ferrari Underbody Water Delivery Pipe - 848510 | $738.64 | Special order, ships in 7-14 days |
| 11 | 962070 | Ferrari Manicotto Ingresso Radiatore - 962070 | $78.76 | Special order, ships in 7-14 days |
| 12 | 790835 | Ferrari Manicotto Mandata Da Pompa - 790835 | $147.72 | Special order, ships in 7-14 days |
| 13 | 867646 | Ferrari Bracket For RH Underbody Wat - 867646 | $18.19 | Special order, ships in 7-14 days |
| 14 | 867645 | Ferrari Bracket For LH Underbody Wat - 867645 | $18.19 | Special order, ships in 7-14 days |
| 15 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 16 | 790848 | Ferrari Lower Bracket for Underbody Coolant Pipes - 790848 | $41.82 | Special order, ships in 7-14 days |
| 17 | 872507 | Ferrari Upper Male Bracket For Under - 872507 | $36.92 | Special order, ships in 7-14 days |
| 18 | 848900 | Ferrari Upper Female Bracket for Underbody Rertainer Block - 848900 | $31.99 | Special order, ships in 7-14 days |
| 19 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 19 | 16285124 | Ferrari Screw 5x16 - 16285124 | Superseded | Order 16286024 instead |
| 20 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 21 | 790850 | Ferrari Lower Retainer Block for Underbody Pipe - 790850 | $16.46 | Special order, ships in 7-14 days |
| 22 | 872509 | Ferrari Gogna Sup. X Tubaz. Sottopia - 872509 | $16.46 | Special order, ships in 7-14 days |
| 23 | 292835 | Ferrari Plug - 292835 | $1.86 | Special order, ships in 7-14 days |
| 24 | 770212 | Ferrari Manicotto Colleg. Radiator - 770212 | $83.68 | Special order, ships in 7-14 days |
| 25 | 292206 | Ferrari Pipe Retainer Clip - 292206 | $1.80 | Special order, ships in 7-14 days |
| 26 | 296782 | Ferrari Hose Clamp 32-50mm - 296782 | $17.67 | Available, ships in 3-6 days |
| 27 | 867589 | Ferrari Tubo Autospurgo Rad. Sottopi - 867589 | $196.96 | Special order, ships in 7-14 days |
| 28 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 29 | 790842 | Ferrari Manicotto Sfiato Da Radiator - 790842 | $56.60 | Special order, ships in 7-14 days |
| 29 | 817218 | Ferrari Manicotto Sfiato Da Radiator - 817218 | $118.16 | Special order, ships in 7-14 days |
| 30 | 10441190 | Ferrari P clip Bracket With Sheath D8mm - 10441190 | $0.90 | Available, ships in 3-6 days |
| 31 | 917171 | Ferrari Manicotto Sfiato Da Sez. A 3 - 917171 | $88.61 | Special order, ships in 7-14 days |
| 32 | 85141400 | Ferrari Clip - 85141400 | $1.36 | Special order, ships in 7-14 days |
| 33 | 159918 | Ferrari Clip Set - 159918 | $1.84 | Special order, ships in 7-14 days |
| 34 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
