Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.26 - FRONT TORSION BAR (diagram 0078)

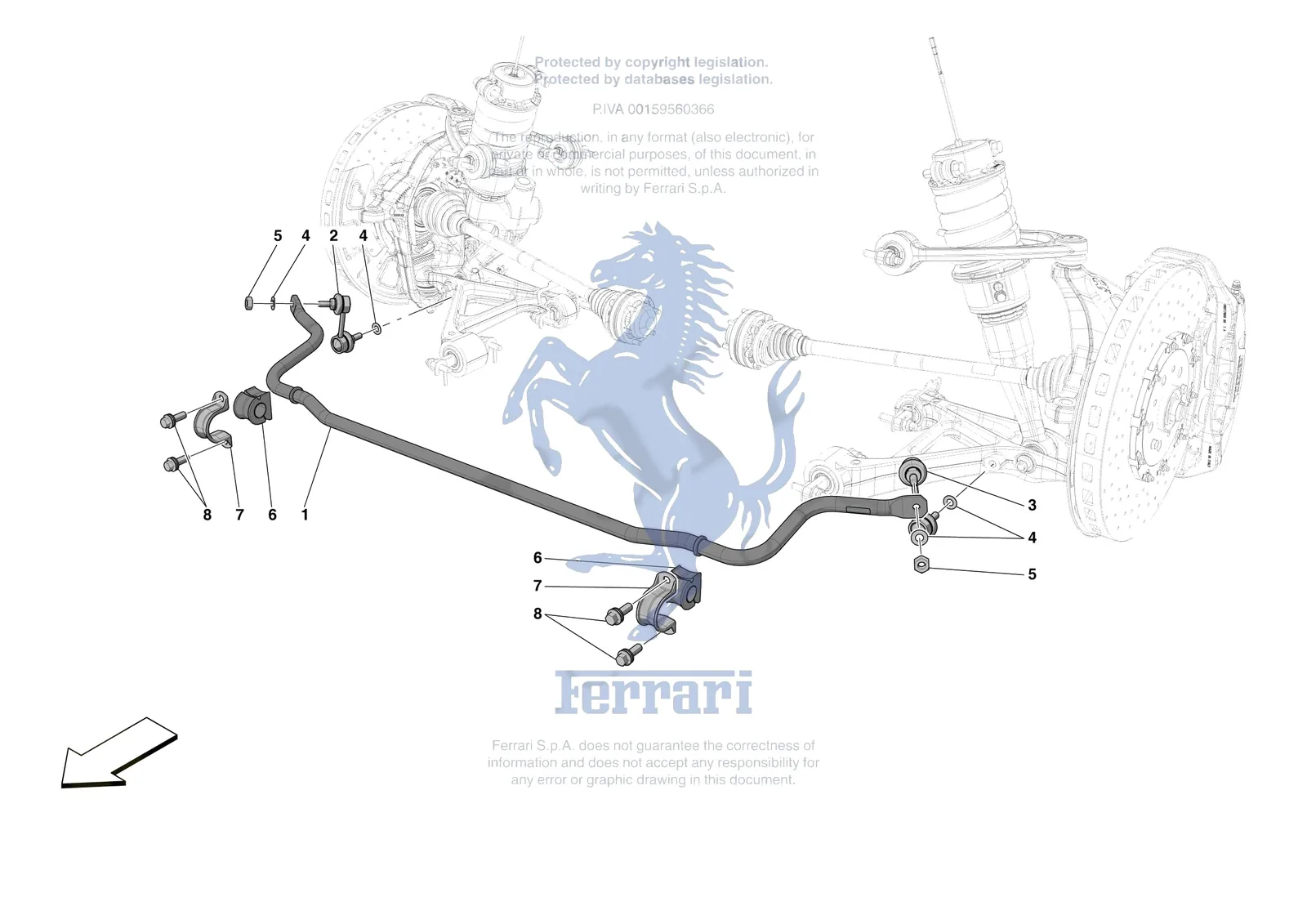

Exploded view of the [mechanical system] - d.26 - front torsion bar on the Ferrari SF90 Spider, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.26 - FRONT TORSION BAR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0078.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 106853 | Ferrari Spring Washer 10mm - 106853 | Superseded | Order 12601474 instead | |
| 10516873 | Ferrari Washer - 10516873 | Superseded | Order 12601474 instead | |
| 12601471 | Ferrari Washer - 12601471 | Superseded | Order 12601474 instead | |
| 1 | 791081 | Ferrari Barra Stabilizz. Antcava D=2 - 791081 | $689.41 | Special order, ships in 7-14 days |
| 2 | 820060 | Ferrari Tirante Sferico 150Deg L90 D - 820060 | $172.33 | Special order, ships in 7-14 days |
| 3 | 820059 | Ferrari Tirante Sferico 150Deg L90 S - 820059 | $172.33 | Special order, ships in 7-14 days |
| 4 | 12601474 | Ferrari Wavy Washer 10mm - 12601474 | $0.06 | Available, ships in 3-6 days |
| 5 | 12164714 | Ferrari Nut M10 x 1.25 x 8 - 12164714 | $0.82 | Available, ships in 3-6 days |
| 6 | 240824 | Ferrari Plug - 240824 | $31.93 | Available, ships in 3-6 days |
| 7 | 244778 | Ferrari Anti-Roll Bar Bush Bracket - 244778 | $36.86 | Special order, ships in 7-14 days |
| 8 | 245843 | Ferrari Screw TE M10 x 1.25 x 30 with washer - 245843 | $4.56 | Available, ships in 3-6 days |
