Ferrari SF90 Spider — [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS (diagram 0079)

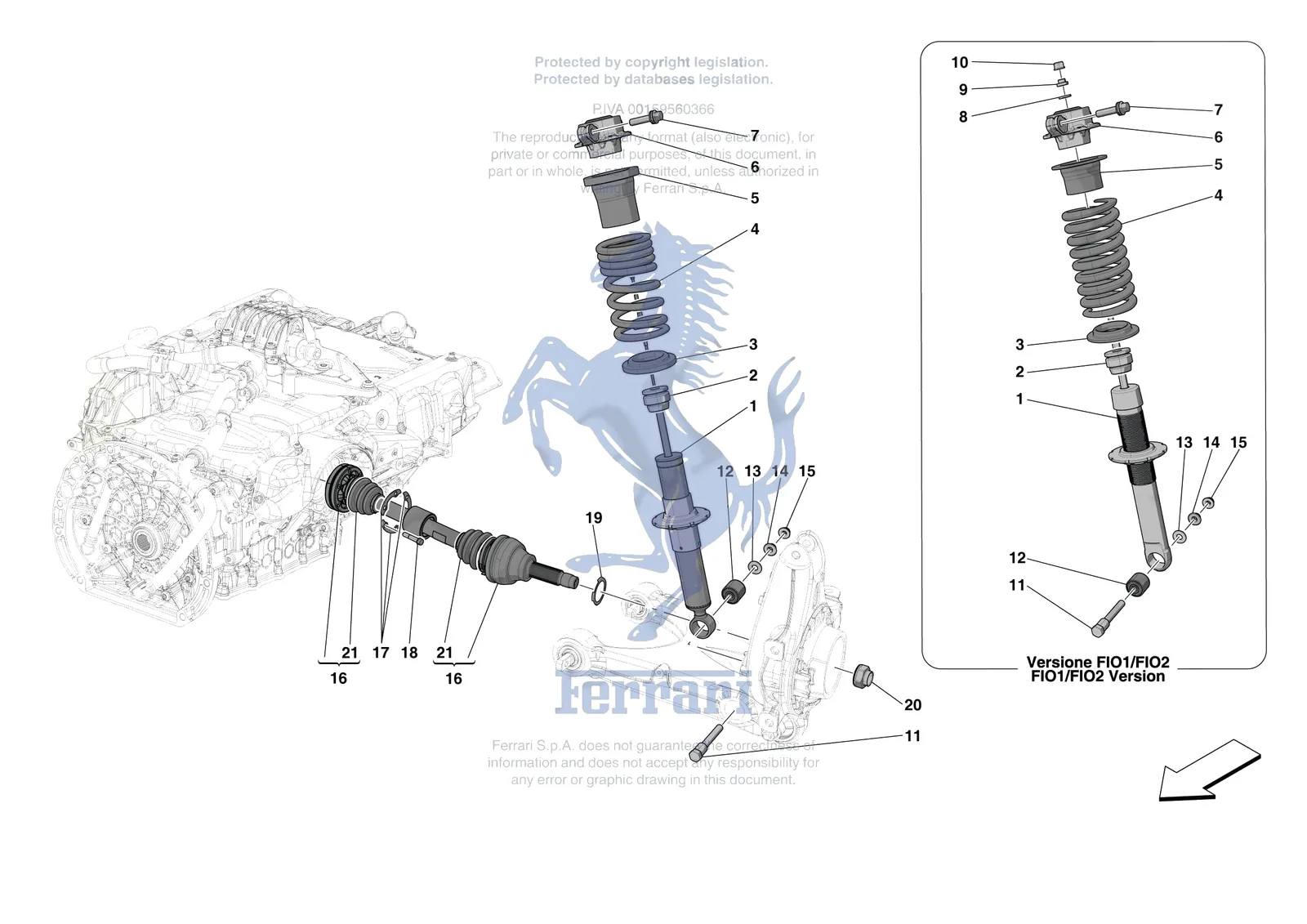

Exploded view of the [mechanical system] - d.27.01 - rear suspension - shock absorbers on the Ferrari SF90 Spider, with 31 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [MECHANICAL SYSTEM] - D.27.01 - REAR SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0079.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 938099 | Ferrari Rear AXLe Shaft - 938099 | Superseded | Order 871148 instead | |
| 1 | 771274 | Ferrari Rear Shock Absorber - 771274 | $2,592.26 | Special order, ships in 7-14 days |
| 1 | 959632 | Ferrari Rear Shock Absorber - 959632 | $4,375.77 | Special order, ships in 7-14 days |
| 2 | 281221 | Ferrari Endstop Bush - 281221 | $61.45 | Special order, ships in 7-14 days |
| 3 | 211236 | Ferrari Lower Spacer - 211236 | $49.14 | Special order, ships in 7-14 days |
| 3 | 293648 | Ferrari Lower Spring Spacer D.78-1 - 293648 | $15.28 | Special order, ships in 7-14 days |
| 4 | 790580 | Ferrari Rear Suspension Spring - 790580 | $295.43 | Special order, ships in 7-14 days |
| 4 | 797511 | Ferrari Rear Suspension Spring - 797511 | $6,587.13 | Special order, ships in 7-14 days |
| 4 | 987900 | Ferrari Rear Suspension Spring - 987900 | $6,591.80 | Special order, ships in 7-14 days |
| 5 | 330617 | Ferrari Upper Spacer - 330617 | Price on request | Contact us for price and availability |
| 5 | 917866 | Ferrari Upper Spacer - 917866 | $93.40 | Special order, ships in 7-14 days |
| 5 | 914073 | Ferrari Upper Spring Spacer D.84 - 914073 | $67.73 | Special order, ships in 7-14 days |
| 5 | 293649 | Ferrari Upper Spring Spacer Rubber - 293649 | $26.20 | Special order, ships in 7-14 days |
| 6 | 340250 | Ferrari Compl. Shock Absorber Retainer Cap - 340250 | $393.38 | Special order, ships in 7-14 days |
| 7 | 248790 | Ferrari Screw M12 x 1.25 x 50 - 248790 | $7.63 | Available, ships in 3-6 days |
| 8 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 9 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 10 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 11 | 246962 | Ferrari Special Screw M12 x 1.25 - 246962 | $58.98 | Special order, ships in 7-14 days |
| 12 | 157630 | Ferrari Front and Rear Shock Bushing PREKOM - 157630 | $87.45 | In stock |
| 13 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 14 | 237821 | Ferrari Bushing 18x15 - 237821 | $9.16 | Available, ships in 3-6 days |
| 15 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 16 | 871148 | Ferrari Rear Axle Shaft - 871148 | $2,063.59 | Special order, ships in 7-14 days |
| 16 | 810769 | Ferrari Semiasse Post F173 Damper 42 - 810769 | Superseded | Order 871148 instead |
| 17 | 220325 | Ferrari Shim Plate - 220325 | $7.40 | Special order, ships in 7-14 days |
| 18 | 237590 | Ferrari Axle Bolt - 237590 | $5.56 | In stock |
| 19 | 918121 | Ferrari Special Ring Bearing for Axle Shaft - 918121 | $34.40 | Special order, ships in 7-14 days |
| 20 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
