Ferrari SF90 Spider — [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE (diagram 0097)

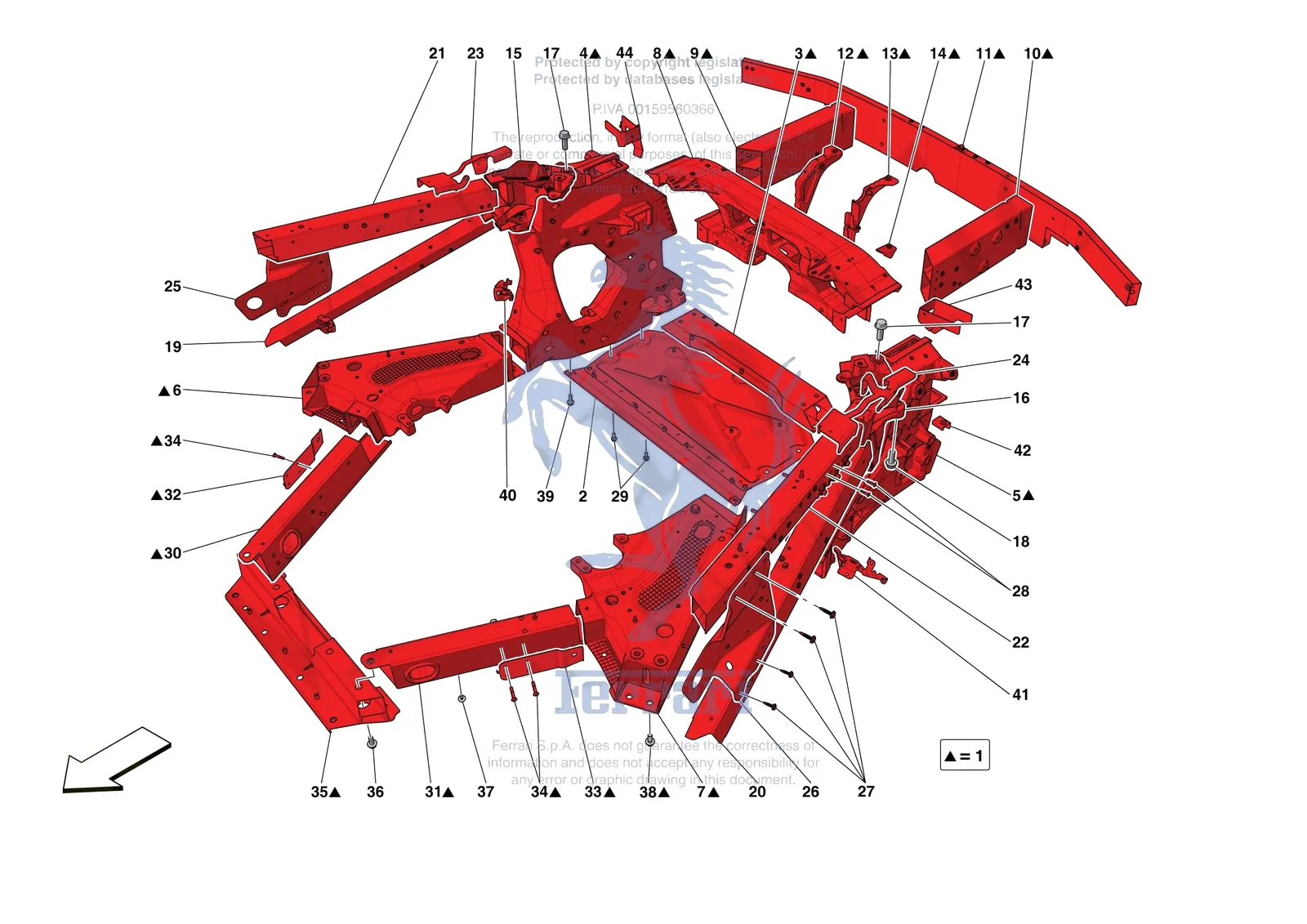

Exploded view of the [vehicle trim] - e.01.03 - structures and elements rear of vehicle on the Ferrari SF90 Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [VEHICLE TRIM] - E.01.03 - STRUCTURES AND ELEMENTS REAR OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1985883301Ferrari Rear Subframe - 985883301$71,063.12Contact us to order
2865055Ferrari Rear Structural Undertray - 865055$787.90Contact us to order
3985866351Ferrari Traversa Inf Supp Cambio Cpl - 985866351$1,329.59Special order, ships in 7-14 days
4985829433Ferrari COMPL. RH REAR SUSPENSION CASTING - 985829433Price on requestContact us for price and availability
5985829432Ferrari COMPL. LH REAR SUSPENSION CASTING - 985829432Price on requestContact us for price and availability
6985829436Ferrari Compl. RH Engine Strut Mount - 985829436$4,917.47Special order, ships in 7-14 days
7985829435Ferrari Supporto Zampa Motore Sx Cpl - 985829435$4,758.01Special order, ships in 7-14 days
8985829434Ferrari Compl. Gearbox Cross Member - 985829434$9,044.70Special order, ships in 7-14 days
9985865537Ferrari Puntone Posteriore Dx Cs F17 - 985865537$5,977.41Special order, ships in 7-14 days
10985877104Ferrari Puntone Posteriore Sx Cs F17 - 985877104$5,574.07Special order, ships in 7-14 days
11985874570Ferrari Rear Bumper Cross Member - 985874570$3,529.22Special order, ships in 7-14 days
12985830432Ferrari Compl. RH Lock Trellis Mounting Bracket - 985830432$935.64Special order, ships in 7-14 days
13985830426Ferrari Compl. LH Lock trellis Mounting Bracket - 985830426$935.64Special order, ships in 7-14 days
14820098Ferrari Staf Sald.Fiss.Tralic.Inver. - 820098$61.52Special order, ships in 7-14 days
15985827116Ferrari Fusione Att Rst Dx Cpl F173 - 985827116$3,315.82Special order, ships in 7-14 days
16985827113Ferrari Fusione Att Rst Sx Cpl F173 - 985827113$3,315.82Special order, ships in 7-14 days
17811998Ferrari Vite Tef M14X1.5X40 - 811998$19.42Special order, ships in 7-14 days
1816289934Ferrari Flanged Bolt M 12X1 2 - 16289934$16.60Special order, ships in 7-14 days
19985865541Ferrari Diagonale Laterale Post Dx C - 985865541$1,477.33Special order, ships in 7-14 days
20985865527Ferrari Diagonale Laterale Post Sx C - 985865527$1,403.46Special order, ships in 7-14 days
21985896528Ferrari RH Outer Upper Rear Diagonal - 985896528$1,477.33Special order, ships in 7-14 days
22985896524Ferrari LH Outer Upper Rear Diagonal - 985896524$1,674.30Special order, ships in 7-14 days
23985957947Ferrari LH Rear Substructure Mountin - 985957947$640.17Special order, ships in 7-14 days
24985957946Ferrari LH Rear Substructure Mountin - 985957946$640.17Special order, ships in 7-14 days
25985865591Ferrari RH Tank Guard Bracket - 985865591$1,107.99Special order, ships in 7-14 days
26985865525Ferrari LH Tank Guard Bracket - 985865525$1,107.99Special order, ships in 7-14 days
27330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
2814639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
2916287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
30985820842Ferrari Traversa Supp Zampa Ant Dx C - 985820842$1,895.91Special order, ships in 7-14 days
31985820839Ferrari Traversa Supp Zampa Ant Sx C - 985820839$1,899.43Special order, ships in 7-14 days
32985965201Ferrari RH Tank Guard Reinforcement - 985965201$418.56Special order, ships in 7-14 days
33985965200Ferrari LH Tank Guard Reinforcement - 985965200$418.56Special order, ships in 7-14 days
34204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
35985924638Ferrari Traversa Ant Telaio Post Cs - 985924638$2,412.99Special order, ships in 7-14 days
3616288474Ferrari Vite Tef M10X1.25X25 Gamb.In - 16288474$2.59Special order, ships in 7-14 days
37897538Ferrari Screw M6 x 18 - 897538$3.26Special order, ships in 7-14 days
3781591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
3816288434Ferrari Screw 10X1.25X - 16288434$1.23Special order, ships in 7-14 days
39918937Ferrari Screw - 918937$1.84Special order, ships in 7-14 days
40928000Ferrari Rear RH Brake Bracket - 928000$184.65Special order, ships in 7-14 days
41927999Ferrari Rear LH Brake Bracket - 927999$184.65Special order, ships in 7-14 days
42865534Ferrari Complete Rear Bracket - Magnaride - 865534$113.24Special order, ships in 7-14 days
43865532Ferrari Lower Bracket for Rear LH Node - 865532$147.72Special order, ships in 7-14 days
44837374Ferrari Lower Bracket for Rear RH Node - 837374$224.04Special order, ships in 7-14 days

All SF90 Spider diagrams
