Ferrari SF90 Spider — [VEHICLE TRIM] - E.07 - REAR SUBSTRUCTURE (diagram 0103)

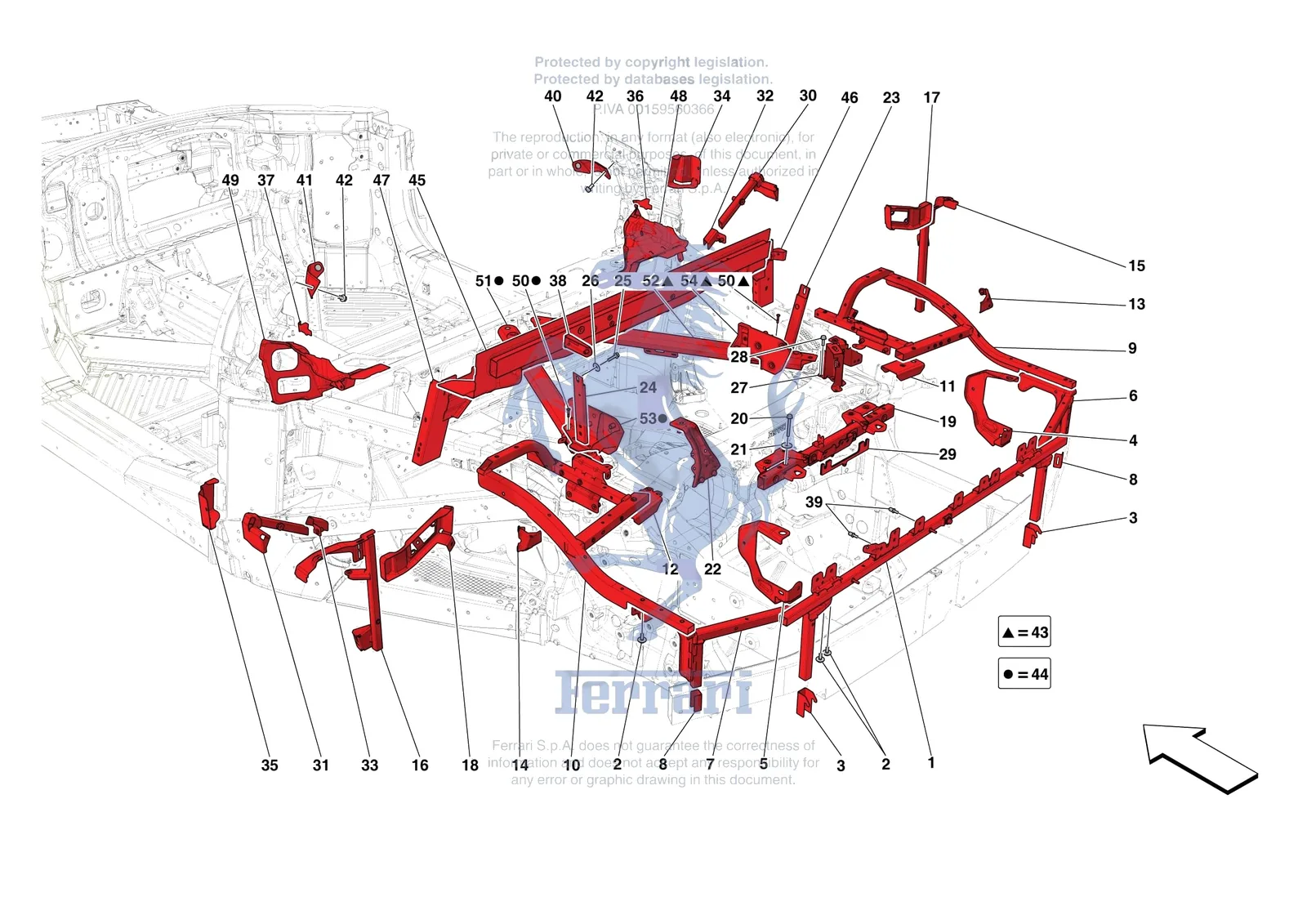

Exploded view of the [vehicle trim] - e.07 - rear substructure on the Ferrari SF90 Spider, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [VEHICLE TRIM] - E.07 - REAR SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
1985877479Ferrari Traliccio Post. Centr. Cpl C - 985877479$1,206.48Special order, ships in 7-14 days
281591700Ferrari Screw TE M6 x 18 with washer - 81591700$4.12Available, ships in 3-6 days
3830363Ferrari Part Search Results - 830363$18.44Special order, ships in 7-14 days
4985830369Ferrari Staffetta Fix Fondello Dx Ca - 985830369$219.11Special order, ships in 7-14 days
5985830361Ferrari Staffetta Fix Fondello Sx Ca - 985830361$219.11Special order, ships in 7-14 days
6985877493Ferrari Traliccio Post. Dx Cpl Cat - 985877493$443.17Special order, ships in 7-14 days
7985877492Ferrari Traliccio Post. Sx Cpl Cat - 985877492$443.17Special order, ships in 7-14 days
8830381Ferrari Bicchiere Traliccio Vertical - 830381$17.46Special order, ships in 7-14 days
9985877477Ferrari Traliccio Fiancata Post. Dx - 985877477$1,428.09Special order, ships in 7-14 days
10985877476Ferrari Traliccio Fiancata Post. Sx - 985877476$1,428.09Special order, ships in 7-14 days
11830370Ferrari Upper Bracket for RH Rear Node - 830370$18.44Special order, ships in 7-14 days
12877549Ferrari Upper Bracket for LH Rear Node - 877549$34.44Special order, ships in 7-14 days
13925914Ferrari Compl. RH Bracket - RH Rear Flank Trellis - 925914$103.38Special order, ships in 7-14 days
14925913Ferrari Compl. LH Bracket - LH Rear Flank Trellis - 925913$103.38Special order, ships in 7-14 days
15985877497Ferrari Supporto Filtro Aria Dx Cpl - 985877497$664.78Special order, ships in 7-14 days
16985877494Ferrari Supporto Filtro Aria Sx Cpl - 985877494$664.78Special order, ships in 7-14 days
17985830424Ferrari RH Wheelhouse Bracket - 985830424$219.11Special order, ships in 7-14 days
18985830415Ferrari LH Wheelhouse Bracket - 985830415$219.11Special order, ships in 7-14 days
19985877500Ferrari Supporto Serr.Cofano Motor C - 985877500$1,231.11Special order, ships in 7-14 days
2014304824Ferrari Allen Screw 6x55 - 14304824$0.50Available, ships in 3-6 days
2016286721Ferrari Screw - 16286721SupersededOrder 14304824 instead
2112640624Ferrari Plain Washer 6mm - 12640624$0.31Available, ships in 3-6 days
22877504Ferrari Complete Mounting Bracket for LH Rear Cover - 877504$64.00Special order, ships in 7-14 days
23896312Ferrari RH Flank Inner Carrier Profi - 896312$59.07Special order, ships in 7-14 days
24896310Ferrari LH Flank Inner Carrier Profi - 896310$59.07Special order, ships in 7-14 days
2516286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
2612647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
27909590Ferrari Complete Strut Mounting Bracket - 909590$243.74Special order, ships in 7-14 days
2816286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
29830401Ferrari Lock Bracket - Thickness 1mm - 830401$16.45Special order, ships in 7-14 days
30985877489Ferrari Tubo Sost. Intercooler Dx Cp - 985877489$467.80Special order, ships in 7-14 days
31985877488Ferrari Tubo Sost. Intercooler Sx Cp - 985877488$467.80Special order, ships in 7-14 days
32877491Ferrari Bicchiere Per Regolazione Dx - 877491$29.52Special order, ships in 7-14 days
33877490Ferrari Bicchiere Per Regolazione Sx - 877490$29.52Special order, ships in 7-14 days
34830360Ferrari RH Flank Adjustment Bracket - 830360$56.60Special order, ships in 7-14 days
35830359Ferrari LH Flank Adjustment Bracket - 830359$56.60Special order, ships in 7-14 days
36910807Ferrari Lamierino Per Chiusura Vano - 910807$23.86Special order, ships in 7-14 days
37910805Ferrari Lamierino Per Chiusura Vano - 910805$23.86Special order, ships in 7-14 days
38831878Ferrari Fixing Bracket - Bulkhead Engine Compartment - 831878$56.60Special order, ships in 7-14 days
39243188Ferrari PIN - 243188Price on requestContact us for price and availability
40905399Ferrari Compl. RH B Pillar Reinforce - 905399$88.61Special order, ships in 7-14 days
41905398Ferrari Compl. LH B Pillar Reinforce - 905398$88.61Special order, ships in 7-14 days
4216297934Ferrari Flanged Screw M8 x 18 - 16297934$1.30Special order, ships in 7-14 days
45985896282Ferrari Rear Roof Tub Cross-Member - 985896282$1,304.98Special order, ships in 7-14 days
46985896277Ferrari RH Vertical Extruded Element - 985896277$664.78Special order, ships in 7-14 days
47985896273Ferrari LH Vertical Extruded Element - 985896273$566.30Special order, ships in 7-14 days
48985896293Ferrari Compl. RH Front Roof Tub Bra - 985896293SupersededOrder 985901889 instead
48985901889Ferrari Compl. RH Front Roof Tub Bra - 985901889$664.78Special order, ships in 7-14 days
49985896288Ferrari Compl. LH Front Roof Tub Bra - 985896288SupersededOrder 985901877 instead
49985901877Ferrari Compl. LH Front Roof Tub Bra - 985901877$664.78Special order, ships in 7-14 days
5014639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
51985745302Ferrari LH Engine Compartment Diagon - 985745302$1,526.57Special order, ships in 7-14 days
52985745315Ferrari RH Engine Compartment Diagon - 985745315$1,526.57Special order, ships in 7-14 days
53896303Ferrari Compl. LH Flank Reinforcemen - 896303$640.17Special order, ships in 7-14 days
54896305Ferrari Compl. RH Flank Reinforcemen - 896305$640.17Special order, ships in 7-14 days
