Ferrari SF90 Spider — [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE (diagram 0106)
Exploded view of the [vehicle trim] - e.10 - rear lid substructure on the Ferrari SF90 Spider, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

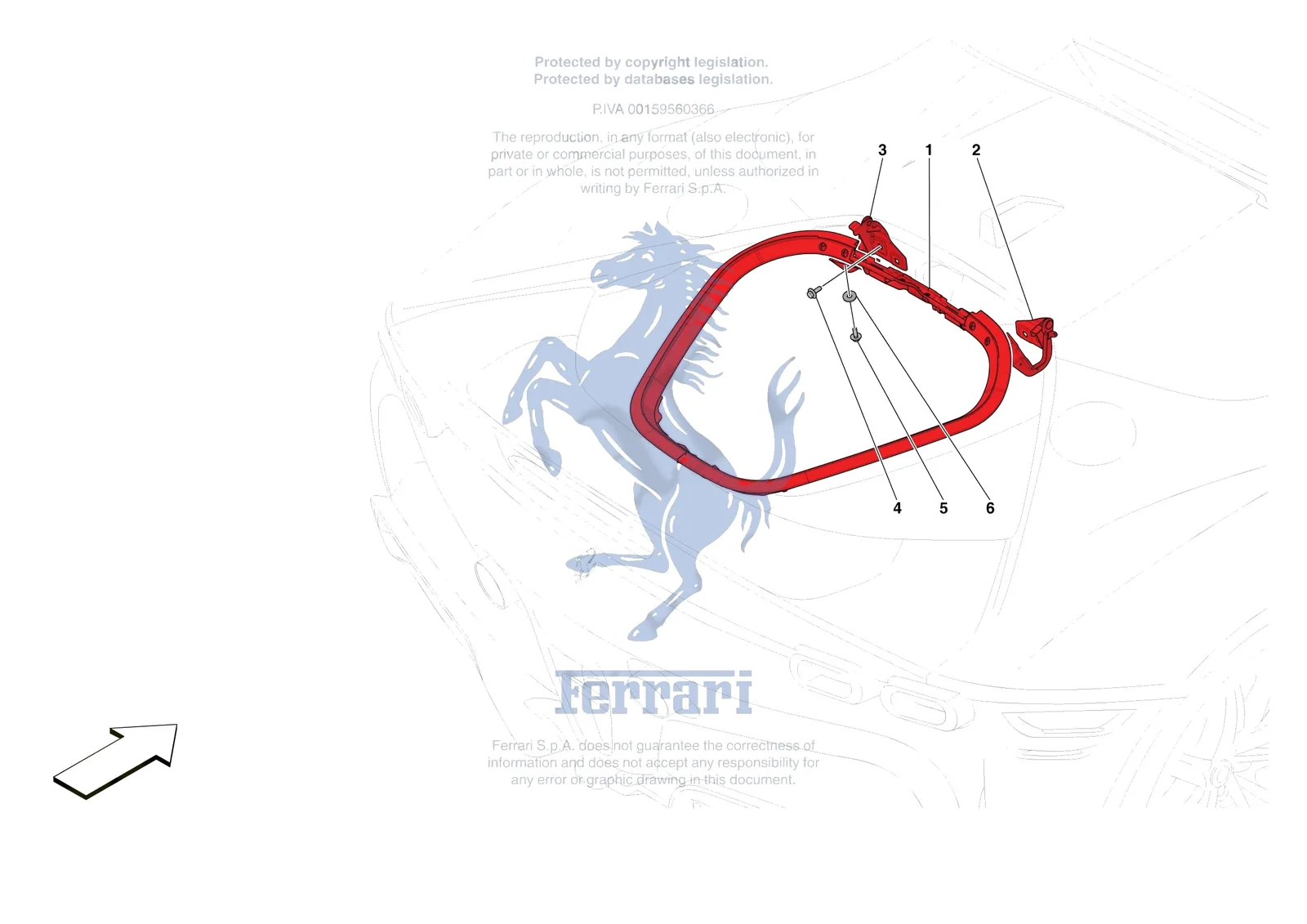

![Ferrari SF90 Spider [VEHICLE TRIM] - E.10 - REAR LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0106.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 985895825 | Ferrari Complete Profile - 985895825 | $2,485.70 | Special order, ships in 7-14 days |
| 2 | 776527 | Ferrari Cerniera Cofano Motore Dx Ba - 776527 | $689.41 | Special order, ships in 7-14 days |
| 3 | 776520 | Ferrari Cerniera Cofano Motore Sx Cp - 776520 | $640.17 | Special order, ships in 7-14 days |
| 4 | 82271400 | Ferrari Screw with Washer M8 x 25 TE - 82271400 | $2.59 | Available, ships in 3-6 days |
| 5 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 6 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
