Ferrari SF90 Spider — [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS (diagram 0110)

Exploded view of the [vehicle trim] - e.13.02 - roof - kinematics on the Ferrari SF90 Spider, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

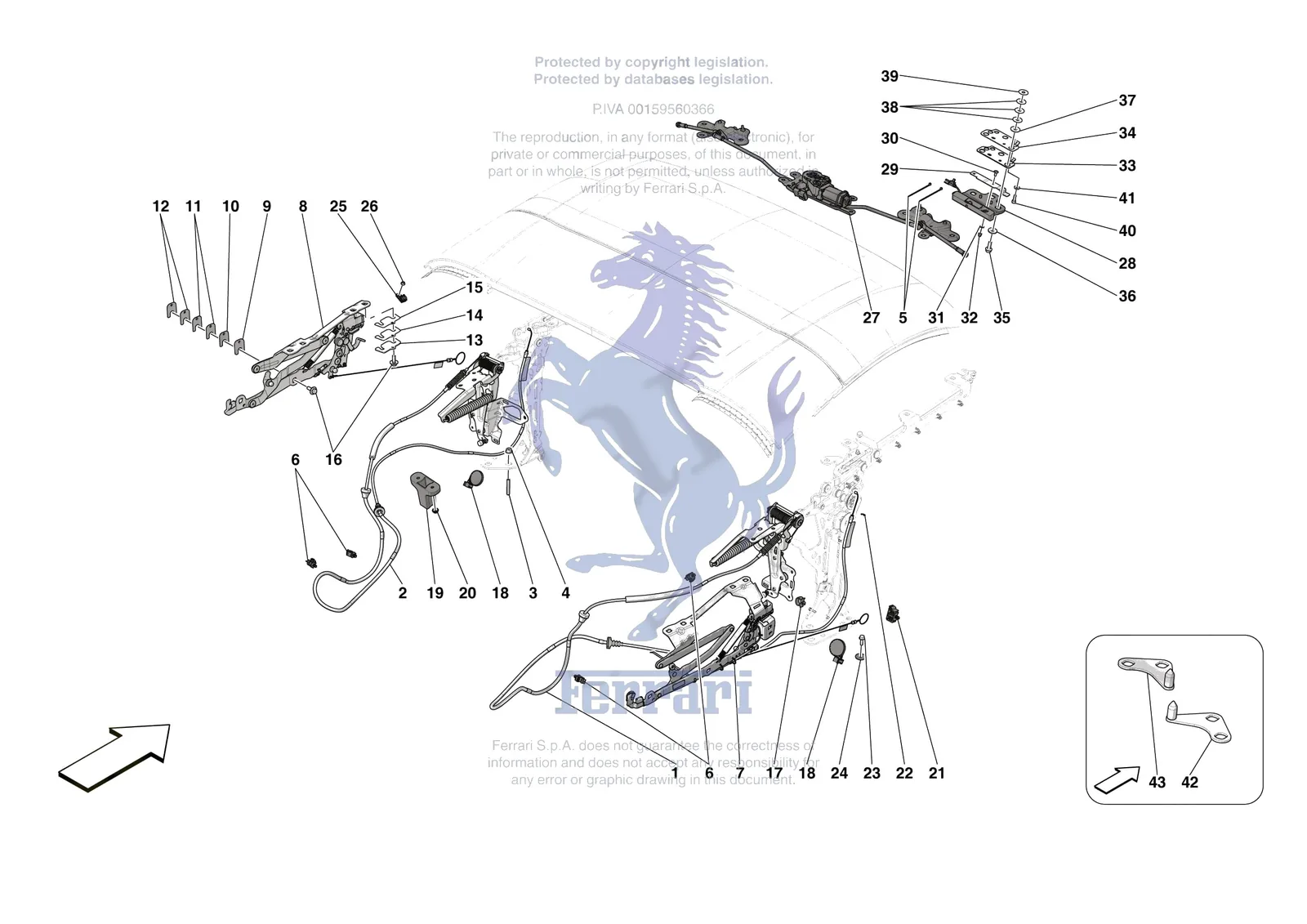

Ferrari SF90 Spider [VEHICLE TRIM] - E.13.02 - ROOF - KINEMATICS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
124338Ferrari Washer D. 8 - 25 x 3 - 124338$14.55Available, ships in 3-6 days
1878248Ferrari Flap Dx - 878248$1,698.93Special order, ships in 7-14 days
2878247Ferrari Flap Sx - 878247$1,698.93Special order, ships in 7-14 days
313791321Ferrari Screw - 13791321$1.92Special order, ships in 7-14 days
413046224Ferrari Nut - 13046224$0.73Available, ships in 3-6 days
5110381Ferrari Cable Tie D1.6-16mm 100mm - 110381$0.17Available, ships in 3-6 days
684093700Ferrari Clip - 84093700$2.82Special order, ships in 7-14 days
7968592Ferrari RH Tonneau Cover Kinematics - 968592$2,201.19Special order, ships in 7-14 days
8968589Ferrari LH Tonneau Cover Kinematics - 968589$2,248.03Special order, ships in 7-14 days
985422400Ferrari Tub Lifting Mechanism Fastener Shim 4.0mm - 85422400$6.31Special order, ships in 7-14 days
1084508500Ferrari Tub Lifting Mechanism Fastener Shim 0.5mm - 84508500$9.16Special order, ships in 7-14 days
1184508600Ferrari Tub Lifting Mechanism Fastener Shim 1.0mm - 84508600$9.16Special order, ships in 7-14 days
1284508700Ferrari Tub Lifting Mechanism Fastener Shim 1.5mm - 84508700$13.74Special order, ships in 7-14 days
1384842000Ferrari Spacer 3.0mm - 84842000$10.81Available, ships in 3-6 days
1484807100Ferrari Spacer 1.0mm - 84807100$8.82Available, ships in 3-6 days
1584807000Ferrari Spacer 0.5mm - 84807000$8.82Available, ships in 3-6 days
1682271400Ferrari Screw with Washer M8 x 25 TE - 82271400$2.59Available, ships in 3-6 days
17919383Ferrari Clip Omega - 919383$1.55Special order, ships in 7-14 days
18242384Ferrari Clip - 242384$0.59Available, ships in 3-6 days
19878245Ferrari Bumper Cpl - 878245$20.66Special order, ships in 7-14 days
2013046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
21301062Ferrari Clip - 301062Price on requestContact us for price and availability
21312163Ferrari Clip - 312163$1.99Special order, ships in 7-14 days
2211087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
2316286127Ferrari Screw 6x20 - 16286127$0.82Available, ships in 3-6 days
2412640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
25250733Ferrari Clip - 250733$1.67Special order, ships in 7-14 days
25262380Ferrari Clip - 262380$3.47Special order, ships in 7-14 days
2614058311Ferrari Flanged Nut M5 x 5 - 14058311$0.46Available, ships in 3-6 days
2783977800Ferrari Latch System Complete - 83977800$3,788.88Special order, ships in 7-14 days
2883977900Ferrari LH Striker Complete - 83977900$549.71Available, ships in 3-6 days
28749652Ferrari RH Striker - 749652$958.91Special order, ships in 7-14 days
2883978000Ferrari RH Striker Complete - 83978000$663.86Special order, ships in 7-14 days
2984643400Ferrari LH Bracket - 84643400$21.14Special order, ships in 7-14 days
2984643500Ferrari RH Bracket - 84643500$21.14Special order, ships in 7-14 days
3085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
3112637878Ferrari Washer - 12637878$0.19Available, ships in 3-6 days
32168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
3384503800Ferrari Shim Kit For Adjusting Roof Relative To Windscreen - 84503800$78.66Special order, ships in 7-14 days
34866265Ferrari WINDSCREEN STRIKER PLATE - 866265$34.40Special order, ships in 7-14 days
3511617624Ferrari Screw - 11617624SupersededOrder 16287224 instead
3516287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
36219344Ferrari Washer D8.5x24x - 219344SupersededOrder 124338 instead
3712642001Ferrari Washer - 12642001$0.27Available, ships in 3-6 days
3883595100Ferrari Flat Washer D. 8.15X - 83595100$2.82Special order, ships in 7-14 days
3983595200Ferrari Flat Washer D. 8.15X - 83595200$2.59Special order, ships in 7-14 days
4014305334Ferrari Screw M6 x 20 - 14305334$0.38Available, ships in 3-6 days
4112646624Ferrari Washer 6.15-15x1.5 - 12646624$0.40Available, ships in 3-6 days
42877193Ferrari Complete RH RHT Centering Bracket - 877193$98.32Special order, ships in 7-14 days
43877194Ferrari Complete LH RHT Centering Bracket - 877194$98.32Special order, ships in 7-14 days
