Ferrari SF90 Spider — [VEHICLE TRIM] - E.19 - INTERNAL CABIN INSULATION (diagram 0118)

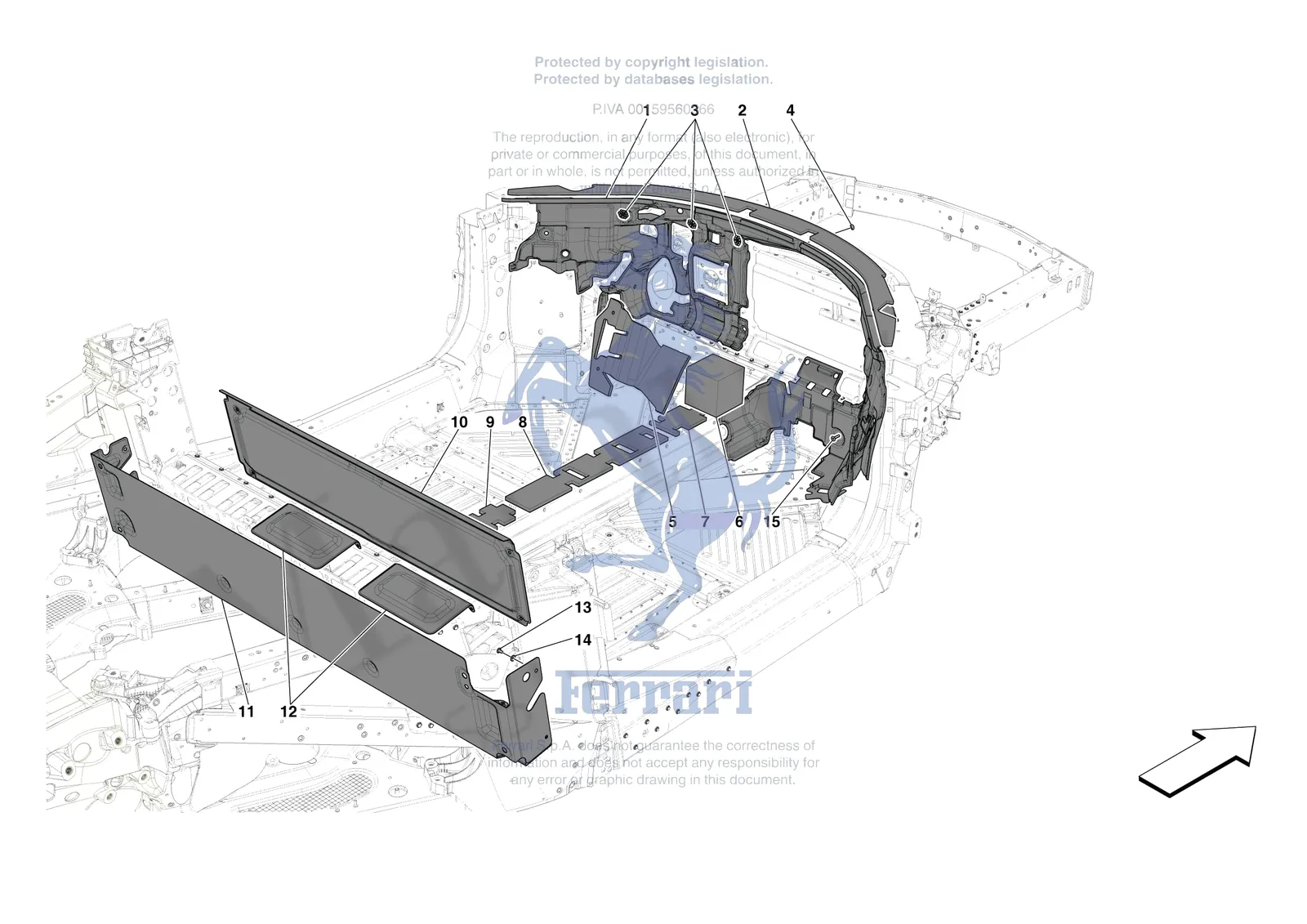

Exploded view of the [vehicle trim] - e.19 - internal cabin insulation on the Ferrari SF90 Spider, with 23 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [VEHICLE TRIM] - E.19 - INTERNAL CABIN INSULATION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0118.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 905415 | Ferrari Firewall Insulation - 905415 | $590.91 | Special order, ships in 7-14 days |
| 1 | 951111 | Ferrari Firewall Insulation - 951111 | $443.17 | Special order, ships in 7-14 days |
| 1 | 955007 | Ferrari FIREWALL INSULATION - 955007 | Price on request | Contact us for price and availability |
| 1 | 824422 | Ferrari Isolante Parafiamma - 824422 | $443.17 | Special order, ships in 7-14 days |
| 2 | 824423 | Ferrari Isolante Curvano - 824423 | $96.01 | Special order, ships in 7-14 days |
| 3 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
| 4 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 5 | 903500 | Ferrari Isolante Pedana Poggia Piedi - 903500 | $34.44 | Special order, ships in 7-14 days |
| 6 | 911129 | Ferrari Accelerator Bracket Insulation - 911129 | $31.93 | Special order, ships in 7-14 days |
| 7 | 824424 | Ferrari Isolante Tunnel Ant - 824424 | $64.00 | Special order, ships in 7-14 days |
| 8 | 864962 | Ferrari Isolante Tunnel Centrale - 864962 | $36.92 | Special order, ships in 7-14 days |
| 9 | 843776 | Ferrari Isolante Tunnel Post - 843776 | $31.99 | Special order, ships in 7-14 days |
| 10 | 938722 | Ferrari HV Battery Cover Insulation - Spider - 938722 | $270.83 | Special order, ships in 7-14 days |
| 11 | 899167 | Ferrari Insulation Under Hv Battery - 899167 | $270.83 | Special order, ships in 7-14 days |
| 12 | 899168 | Ferrari Backed Insulation Under Batt - 899168 | $128.01 | Special order, ships in 7-14 days |
| 13 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 14 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 15 | 256490 | Ferrari Screw TBEI M5 x 16 - 256490 | $3.91 | Available, ships in 3-6 days |
