Ferrari SF90 Spider — [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- (diagram 0150)

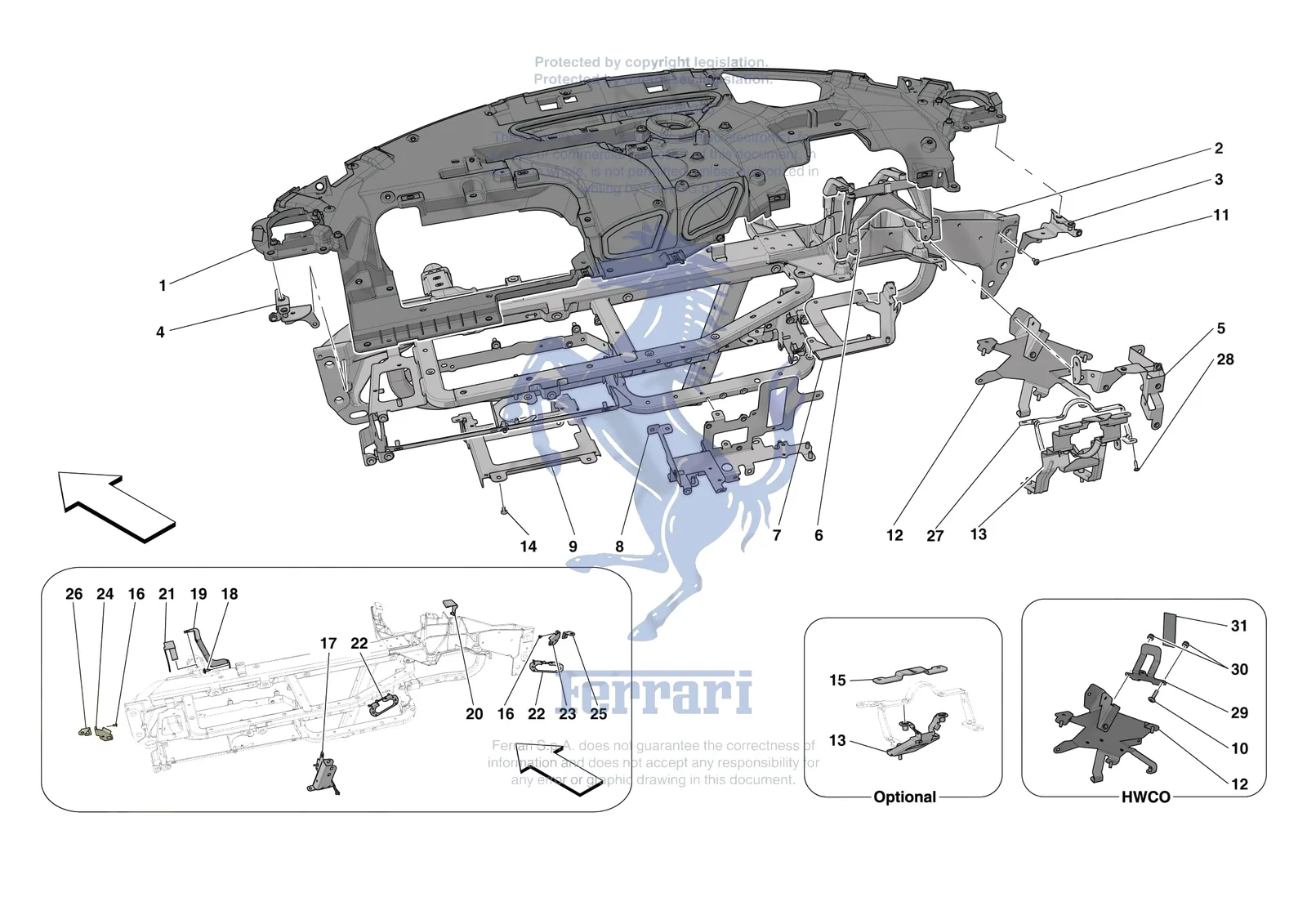

Exploded view of the [vehicle trim] - e.47.02 - dashboard - substructure -applicable for rhd- on the Ferrari SF90 Spider, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [VEHICLE TRIM] - E.47.02 - DASHBOARD - SUBSTRUCTURE -Applicable for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0150.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 290589 | Ferrari Screw 4x8 - 290589 | Superseded | Order 309629 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 838413 | Ferrari Compl. Dashboard Substructur - 838413 | $2,964.08 | Special order, ships in 7-14 days |
| 2 | 838312 | Ferrari Dashboard Cross Member - 838312 | $7,325.79 | Special order, ships in 7-14 days |
| 3 | 884673 | Ferrari RH Demister Duct Bracket - 884673 | $98.46 | Special order, ships in 7-14 days |
| 4 | 884674 | Ferrari LH Demister Duct Bracket - 884674 | $98.46 | Special order, ships in 7-14 days |
| 5 | 936816 | Ferrari RH Mount Bracket - 936816 | $172.33 | Special order, ships in 7-14 days |
| 6 | 805519 | Ferrari Bracket - Instrument Panel - 805519 | $204.34 | Special order, ships in 7-14 days |
| 7 | 936815 | Ferrari Driver Side Underdashboard T - 936815 | $182.18 | Special order, ships in 7-14 days |
| 8 | 979177 | Ferrari Centre Mounting Bracket - 979177 | $219.11 | Special order, ships in 7-14 days |
| 9 | 838436 | Ferrari NIT Fastener Bracket Gdx - 838436 | $135.39 | Special order, ships in 7-14 days |
| 10 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 11 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 12 | 936817 | Ferrari Body Computer Bracket - 936817 | $295.43 | Special order, ships in 7-14 days |
| 12 | 946972 | Ferrari Body Computer Bracket - 946972 | $320.06 | Special order, ships in 7-14 days |
| 13 | 837920 | Ferrari Lower Bracket for Steering Column Trim - 837920 | $155.10 | Special order, ships in 7-14 days |
| 13 | 86592000 | Ferrari Lower Bracket For Steering Column Trim - 86592000 | $83.57 | Special order, ships in 7-14 days |
| 14 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 15 | 837930 | Ferrari Upper Steering Column Trim Bracket - 837930 | $22.60 | Special order, ships in 7-14 days |
| 16 | 309629 | Ferrari Screw 4x8 - 309629 | $4.77 | Special order, ships in 7-14 days |
| 17 | 838478 | Ferrari Bracket Fastening Extrusion to Tunnel - 838478 | $177.25 | Special order, ships in 7-14 days |
| 18 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 19 | 838346 | Ferrari Lateral HVAC Unit Fastener Bracket RH - 838346 | $91.08 | Special order, ships in 7-14 days |
| 20 | 913353 | Ferrari RH Dashboard Mounting Bracke - 913353 | $56.60 | Special order, ships in 7-14 days |
| 21 | 838347 | Ferrari LH Dashboard Mounting Bracket - 838347 | $41.82 | Special order, ships in 7-14 days |
| 22 | 835864 | Ferrari Haptic Control Mounting Bracket - 835864 | $56.60 | Special order, ships in 7-14 days |
| 23 | 862953 | Ferrari RH Lateral Trim Fastener Bracket - 862953 | $18.44 | Special order, ships in 7-14 days |
| 24 | 862952 | Ferrari LH Lateral Trim Fastener Bracket - 862952 | $18.44 | Special order, ships in 7-14 days |
| 25 | 838390 | Ferrari Bracket Fastening RH Satellite to Chassis - 838390 | $18.44 | Special order, ships in 7-14 days |
| 26 | 838446 | Ferrari Bracket Fastening LH Satellite to Chassis - 838446 | $23.86 | Special order, ships in 7-14 days |
| 27 | 830574 | Ferrari Upper Bracket For Lower Stee - 830574 | $36.92 | Special order, ships in 7-14 days |
| 28 | 63343400 | Ferrari Screw 4x15 - 63343400 | $5.02 | Available, ships in 3-6 days |
| 28 | 15688801 | Ferrari Screw M3.5 x 13 - 15688801 | Superseded | Order 63343400 instead |
| 29 | 946066 | Ferrari Myferrari Connect ECU Bracke - 946066 | $56.60 | Special order, ships in 7-14 days |
| 30 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 30 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 31 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
