Ferrari SF90 Spider — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0153)

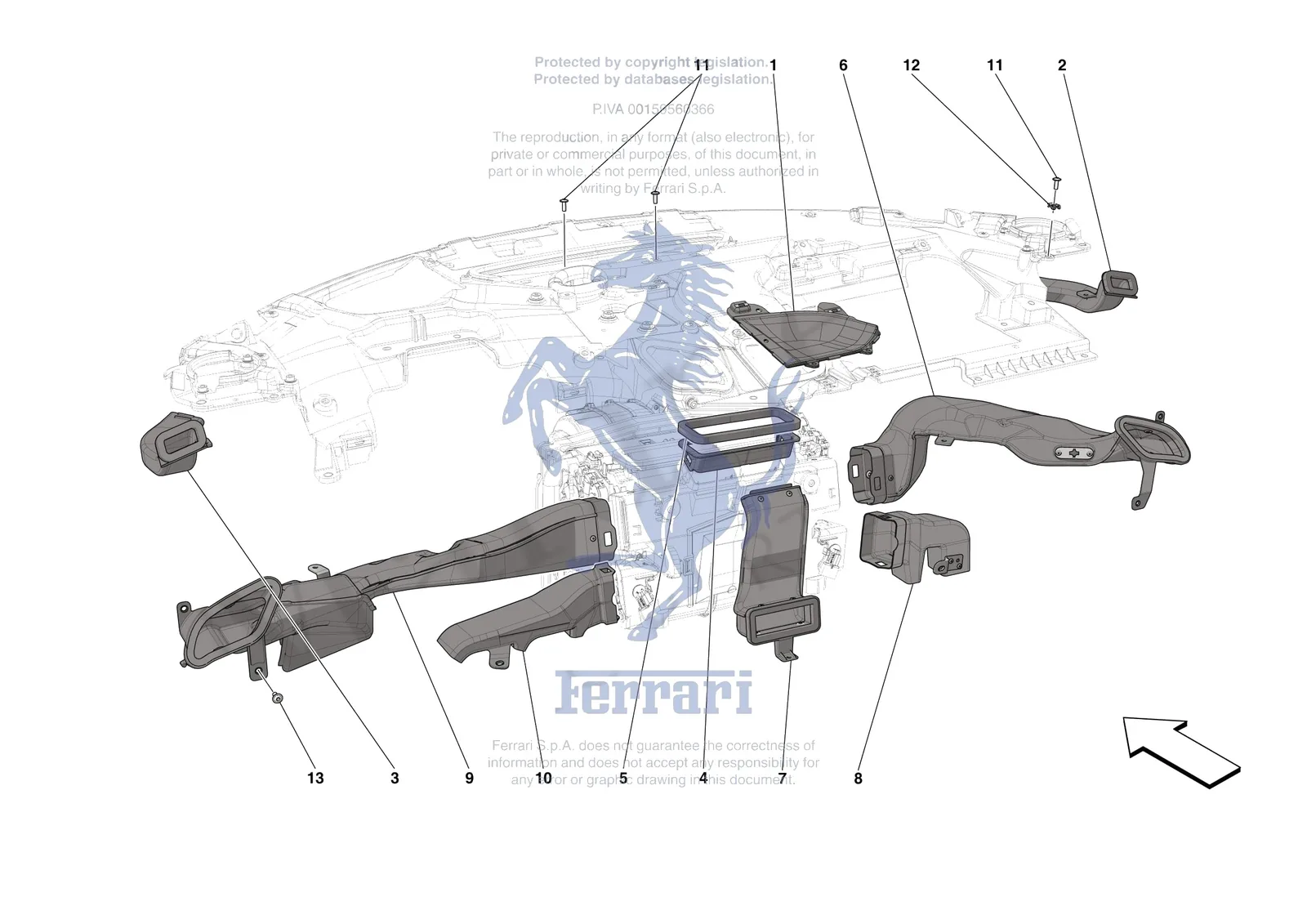

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari SF90 Spider, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0153.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 815346 | Ferrari Mostrina Diffusore Cpl - 815346 | $295.43 | Special order, ships in 7-14 days |
| 2 | 852357 | Ferrari Condotto Demister Dx Cpl - 852357 | $86.15 | Special order, ships in 7-14 days |
| 3 | 852360 | Ferrari Condotto Demister Sx Cpl - 852360 | $86.15 | Special order, ships in 7-14 days |
| 4 | 805508 | Ferrari Centre HVAC/Ventilation Connector - 805508 | $14.97 | Special order, ships in 7-14 days |
| 5 | 805509 | Ferrari Guarnizione Raccordohvac - 805509 | $15.93 | Special order, ships in 7-14 days |
| 6 | 805428 | Ferrari Condotto Vent.Dx Pass. Cpl - 805428 | $241.27 | Special order, ships in 7-14 days |
| 7 | 808087 | Ferrari Condotto Vent.Sx Pass.Cpl - 808087 | $187.10 | Special order, ships in 7-14 days |
| 8 | 892666 | Ferrari Condotto Aria Piedi Passegge - 892666 | $86.15 | Special order, ships in 7-14 days |
| 9 | 852352 | Ferrari Condotto Vent. Sx Guida Cpl - 852352 | $320.06 | Special order, ships in 7-14 days |
| 10 | 805432 | Ferrari Condotto Aria Piedi Guidator - 805432 | $88.49 | Special order, ships in 7-14 days |
| 11 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 12 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 13 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
