Ferrari SF90 Spider — [VEHICLE TRIM] - E.51.03 - FRONT SEATS - RACING SEAT (diagram 0163)

Exploded view of the [vehicle trim] - e.51.03 - front seats - racing seat on the Ferrari SF90 Spider, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

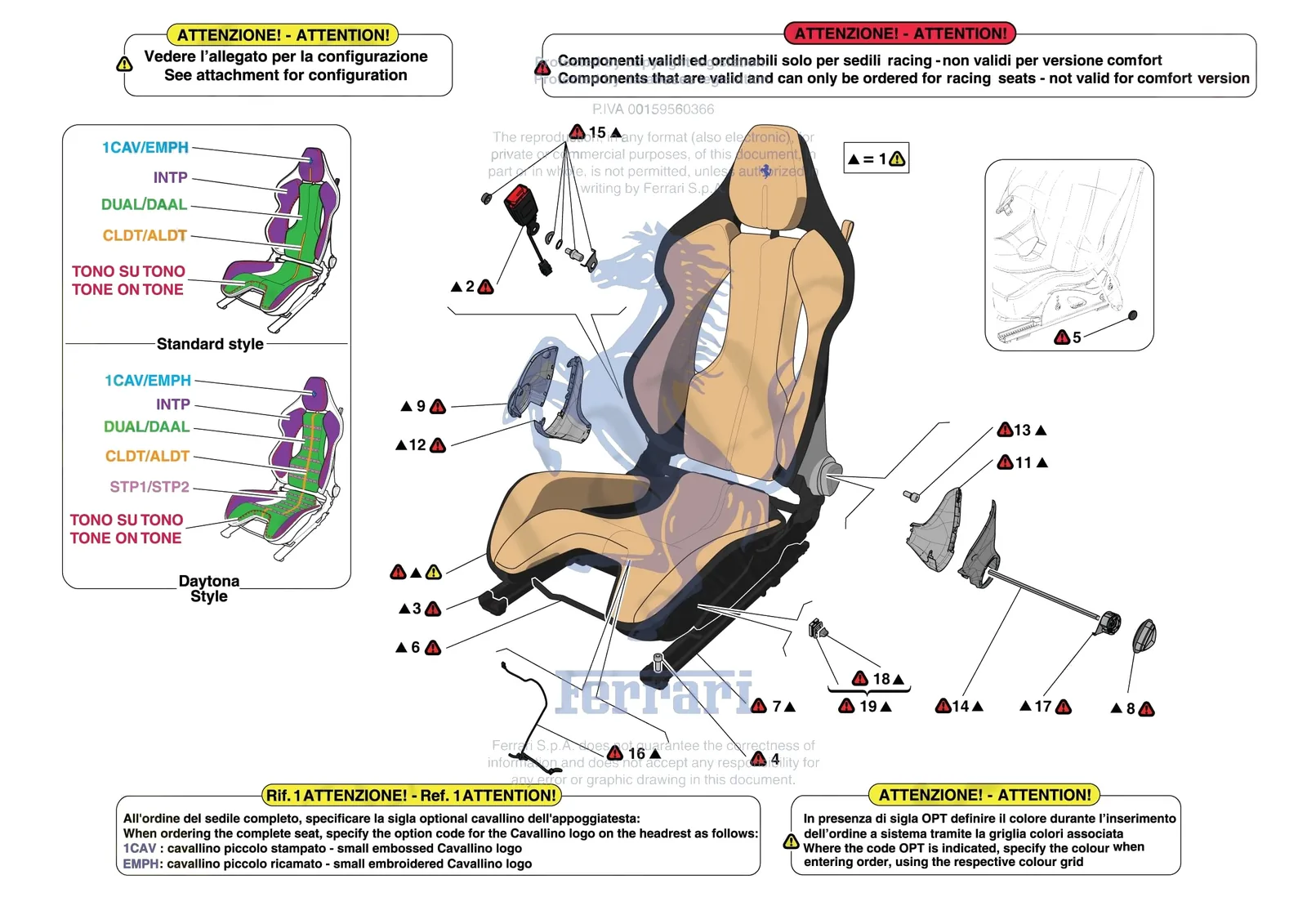

Ferrari SF90 Spider [VEHICLE TRIM] - E.51.03 - FRONT SEATS - RACING SEAT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1916576Ferrari COMPL. LH RACING SEAT - 916576Price on requestContact us to order
1917046Ferrari COMPL. LH RACING SEAT - 917046Price on requestContact us to order
1925504Ferrari COMPL. LH RACING SEAT - 925504Price on requestContact us to order
1925366Ferrari COMPL. RH RACING SEAT - 925366Price on requestContact us to order
1925377Ferrari COMPL. RH RACING SEAT - 925377Price on requestContact us to order
1925379Ferrari COMPL. RH RACING SEAT - 925379Price on requestContact us to order
1925381Ferrari COMPL. RH RACING SEAT - 925381Price on requestContact us to order
1925383Ferrari COMPL. RH RACING SEAT - 925383Price on requestContact us to order
1917033Ferrari LH Seat Complete With Guide - 917033$43,086.71Contact us to order
1917034Ferrari LH Seat Complete With Guide - 917034$43,890.58Contact us to order
1917035Ferrari LH Seat Complete With Guide - 917035$44,889.96Contact us to order
1917036Ferrari LH Seat Complete With Guide - 917036$43,086.71Contact us to order
1917037Ferrari LH Seat Complete With Guide - 917037$44,889.96Contact us to order
1917050Ferrari LH Seat Complete With Guide - 917050$46,124.00Contact us to order
1917053Ferrari LH Seat Complete With Guide - 917053$49,193.85Contact us to order
1917054Ferrari LH Seat Complete With Guide - 917054$52,589.62Contact us to order
1917055Ferrari LH Seat Complete With Guide - 917055$47,927.25Contact us to order
1917057Ferrari LH Seat Complete With Guide - 917057$49,193.85Contact us to order
1925501Ferrari LH Seat Complete With Guide - 925501$43,940.54Contact us to order
1925502Ferrari LH Seat Complete With Guide - 925502$45,885.00Contact us to order
1925503Ferrari LH Seat Complete With Guide - 925503$51,651.05Contact us to order
1925505Ferrari LH Seat Complete With Guide - 925505$48,976.61Contact us to order
1925506Ferrari LH Seat Complete With Guide - 925506$44,216.47Contact us to order
1917104Ferrari RH Seat Complete With Guide - 917104$42,962.88Contact us to order
1917105Ferrari RH Seat Complete With Guide - 917105$43,940.54Contact us to order
1917107Ferrari RH Seat Complete With Guide - 917107$43,940.54Contact us to order
1917111Ferrari RH Seat Complete With Guide - 917111$49,962.95Contact us to order
1917112Ferrari RH Seat Complete With Guide - 917112$46,979.99Contact us to order
1917113Ferrari RH Seat Complete With Guide - 917113$49,193.85Contact us to order
1925368Ferrari RH Seat Complete With Guide - 925368$43,086.71Contact us to order
1925369Ferrari RH Seat Complete With Guide - 925369$44,889.96Contact us to order
1925375Ferrari RH Seat Complete With Guide - 925375$50,406.16Contact us to order
1925378Ferrari RH Seat Complete With Guide - 925378$51,651.05Contact us to order
1925380Ferrari RH Seat Complete With Guide - 925380$48,118.44Contact us to order
1925385Ferrari RH Seat Complete With Guide - 925385$50,473.52Contact us to order
1925384Ferrari RH Seat Complete With Guide Rails - 925384$49,889.08Contact us to order
2917032Ferrari Buckle Section - 917032$467.80Special order, ships in 7-14 days
3894026Ferrari Scuff Guard - 894026$21.85Special order, ships in 7-14 days
4884801Ferrari Special Screw M10 x 1.25 - 884801$3.47Special order, ships in 7-14 days
583717300Ferrari SCREW HEAD COVER - 83717300$10.25Special order, ships in 7-14 days
6900726Ferrari Seat Arch - 900726$663.86Special order, ships in 7-14 days
7900727Ferrari Racing Seat Guide Rail - 900727$3,932.56Special order, ships in 7-14 days
8900603Ferrari Seat Adjustment Knob - 900603$442.56Special order, ships in 7-14 days
9900604Ferrari RH Cover Panel For LH Seat B - 900604$179.46Special order, ships in 7-14 days
9900605Ferrari RH Cover Panel For RH Seat B - 900605$159.79Special order, ships in 7-14 days
10900606Ferrari LH Cover Panel For LH Seat B - 900606$159.79Special order, ships in 7-14 days
10900679Ferrari LH Cover Panel For RH Seat B - 900679$179.46Special order, ships in 7-14 days
11900688Ferrari LH Rear Backrest Casing - 900688$270.44Special order, ships in 7-14 days
12900705Ferrari RH Rear Backrest Casing - 900705$270.44Special order, ships in 7-14 days
13900706Ferrari Casing Fastener Screw Kit - 900706$137.67Special order, ships in 7-14 days
14900709Ferrari BACKREST ADJUSTMENT ROD - 900709Price on requestContact us for price and availability
15900720Ferrari Buckle Stalk Fastener Kit - 900720$319.62Special order, ships in 7-14 days
16900724Ferrari COMPLETE RH SEAT WIRING HARNESS - 900724Price on requestContact us for price and availability
1655021533Ferrari Complete Seat Wiring Harness - 55021533$1,106.43Special order, ships in 7-14 days
16900723Ferrari LH Seat Tilt Mechanism Elect - 900723$218.81Special order, ships in 7-14 days
17947642Ferrari Seat Rod Stop - 947642$56.52Special order, ships in 7-14 days
1855030696Ferrari Outer Cover Of Seat Tilt Mec - 55030696$442.56Special order, ships in 7-14 days

All SF90 Spider diagrams
