Ferrari SF90 Spider — [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR (diagram 0169)

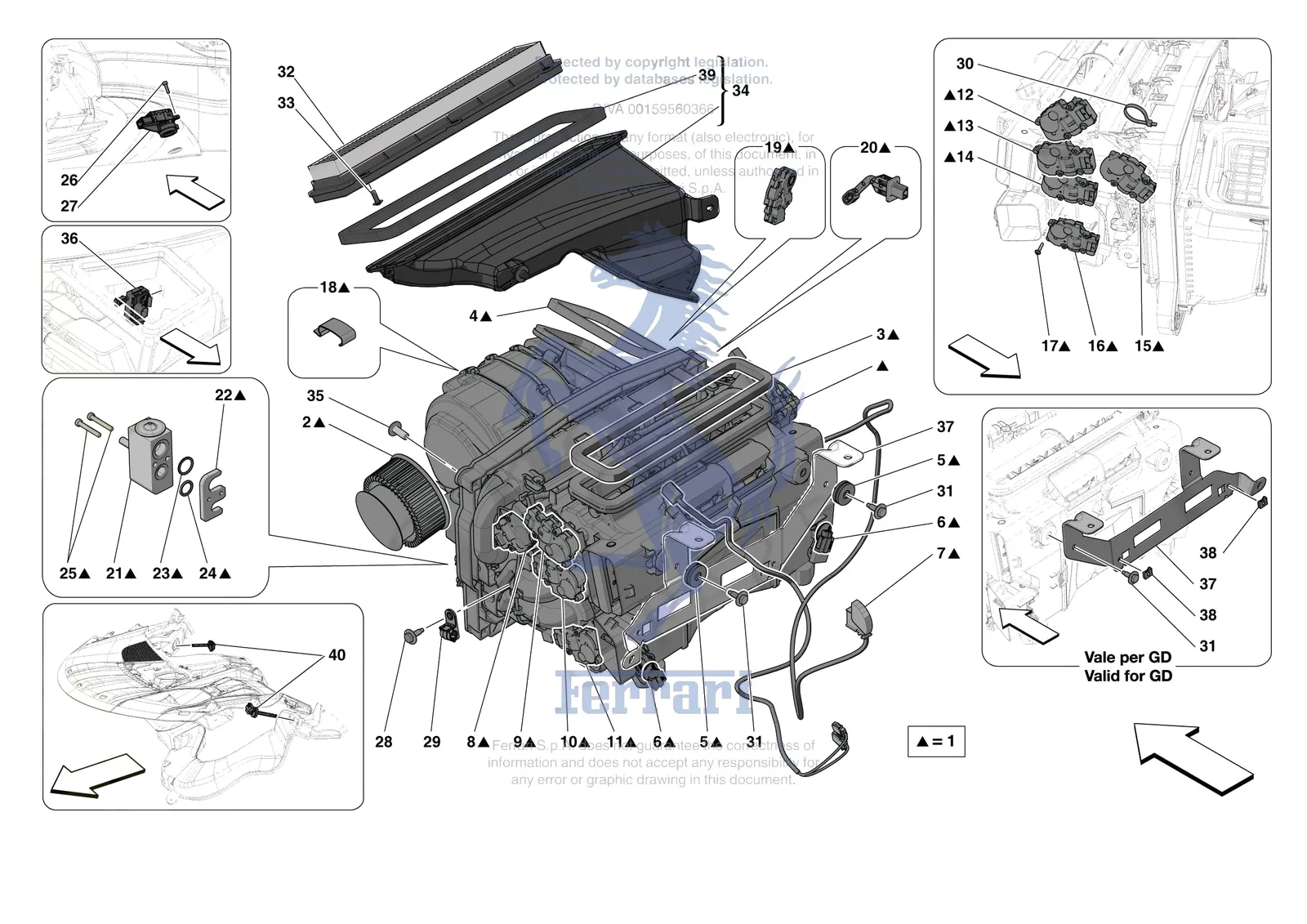

Exploded view of the [vehicle trim] - e.57.01 - ac system - evaporator on the Ferrari SF90 Spider, with 44 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [VEHICLE TRIM] - E.57.01 - AC SYSTEM - EVAPORATOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0169.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 965060 | Ferrari Hvac Airmix Tko Front Airinl - 965060 | Superseded | Order 988473 instead |
| 1 | 988473 | Ferrari Hvac Airmix Tko Front Airinl - 988473 | $5,395.33 | Special order, ships in 7-14 days |
| 2 | 819890 | Ferrari Fan - 819890 | $1,524.44 | Special order, ships in 7-14 days |
| 3 | 819859 | Ferrari Seal Tape - 819859 | $23.33 | Special order, ships in 7-14 days |
| 4 | 917971 | Ferrari Air Flange Sealing Strip - 917971 | $13.51 | Special order, ships in 7-14 days |
| 5 | 68389800 | Ferrari Rubber Pad - 68389800 | $12.52 | Special order, ships in 7-14 days |
| 6 | 88712600 | Ferrari Temperature Sensor - 88712600 | $34.94 | Special order, ships in 7-14 days |
| 7 | 917970 | Ferrari Cable Harness Cabin Side - 917970 | $295.03 | Special order, ships in 7-14 days |
| 7 | 917969 | Ferrari Cable Harness Engine Side - 917969 | $137.67 | Special order, ships in 7-14 days |
| 8 | 819848 | Ferrari LH Temperature Actuator - 819848 | $214.17 | Special order, ships in 7-14 days |
| 9 | 819846 | Ferrari LH Central Vent Actuator - 819846 | $214.17 | Special order, ships in 7-14 days |
| 10 | 819839 | Ferrari LH Lateral Vent Actuator - 819839 | $203.24 | Special order, ships in 7-14 days |
| 11 | 819843 | Ferrari LH Heater Actuator - 819843 | $214.17 | Special order, ships in 7-14 days |
| 12 | 819845 | Ferrari Defroster Actuator - 819845 | $214.17 | Special order, ships in 7-14 days |
| 13 | 819847 | Ferrari RH Central Vent Actuator - 819847 | $214.17 | Available, ships in 3-6 days |
| 14 | 819840 | Ferrari RH Lateral Vent Actuator - 819840 | $214.17 | Special order, ships in 7-14 days |
| 15 | 819849 | Ferrari RH Temperature Actuator - 819849 | $213.21 | Special order, ships in 7-14 days |
| 16 | 819844 | Ferrari RH Heater Actuator - 819844 | $214.17 | Special order, ships in 7-14 days |
| 17 | 819837 | Ferrari Screw - 819837 | $9.16 | Special order, ships in 7-14 days |
| 18 | 819860 | Ferrari Clip - 819860 | $8.05 | Special order, ships in 7-14 days |
| 19 | 917968 | Ferrari Recirculation Actuator - 917968 | $91.77 | Special order, ships in 7-14 days |
| 20 | 819834 | Ferrari Evaporator Sensor - 819834 | $19.20 | Special order, ships in 7-14 days |
| 21 | 917976 | Ferrari Expansion Valve W Shut-Off - 917976 | $371.53 | Special order, ships in 7-14 days |
| 22 | 819881 | Ferrari Plate - 819881 | $37.13 | Special order, ships in 7-14 days |
| 23 | 819882 | Ferrari Washer - 819882 | $10.68 | Special order, ships in 7-14 days |
| 24 | 819883 | Ferrari Washer - 819883 | $45.87 | Special order, ships in 7-14 days |
| 25 | 819885 | Ferrari Screw - 819885 | $83.03 | Special order, ships in 7-14 days |
| 26 | 14303123 | Ferrari Screw - 14303123 | $0.12 | Available, ships in 3-6 days |
| 26 | 14303124 | Ferrari SCREW - 14303124 | Superseded | Order 14303123 instead |
| 27 | 89274100 | Ferrari Sensore Temperatura - 89274100 | $157.34 | Special order, ships in 7-14 days |
| 28 | 81045300 | Ferrari Screw 6x16 - 81045300 | $1.36 | Special order, ships in 7-14 days |
| 29 | 262380 | Ferrari Clip - 262380 | $3.47 | Special order, ships in 7-14 days |
| 30 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 32 | 891392 | Ferrari GTC4 Lusso Cabin Filter - 891392 | $168.80 | In stock |
| 33 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 34 | 867908 | Ferrari Complete AC Unit Mobile Duct - 867908 | $236.02 | Special order, ships in 7-14 days |
| 34 | 865720 | Ferrari Complete AC Unit Mobile Duct Gd - 865720 | $245.85 | Special order, ships in 7-14 days |
| 35 | 89109800 | Ferrari Screw - 89109800 | $15.06 | Special order, ships in 7-14 days |
| 36 | 839918 | Ferrari Ac Air Quality Sensor - 839918 | $163.89 | Special order, ships in 7-14 days |
| 37 | 808173 | Ferrari Hvac Unit Mounting Bracket - 808173 | $125.54 | Special order, ships in 7-14 days |
| 37 | 838367 | Ferrari HVAC Unit Mounting Bracket RHD - 838367 | $103.38 | Special order, ships in 7-14 days |
| 38 | 67278400 | Ferrari BRACKET - 67278400 | $21.60 | Special order, ships in 7-14 days |
| 39 | 879465 | Ferrari Upper Air Duct Seal - 879465 | $32.79 | Special order, ships in 7-14 days |
