Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.01 - BATTERIES (diagram 0176)

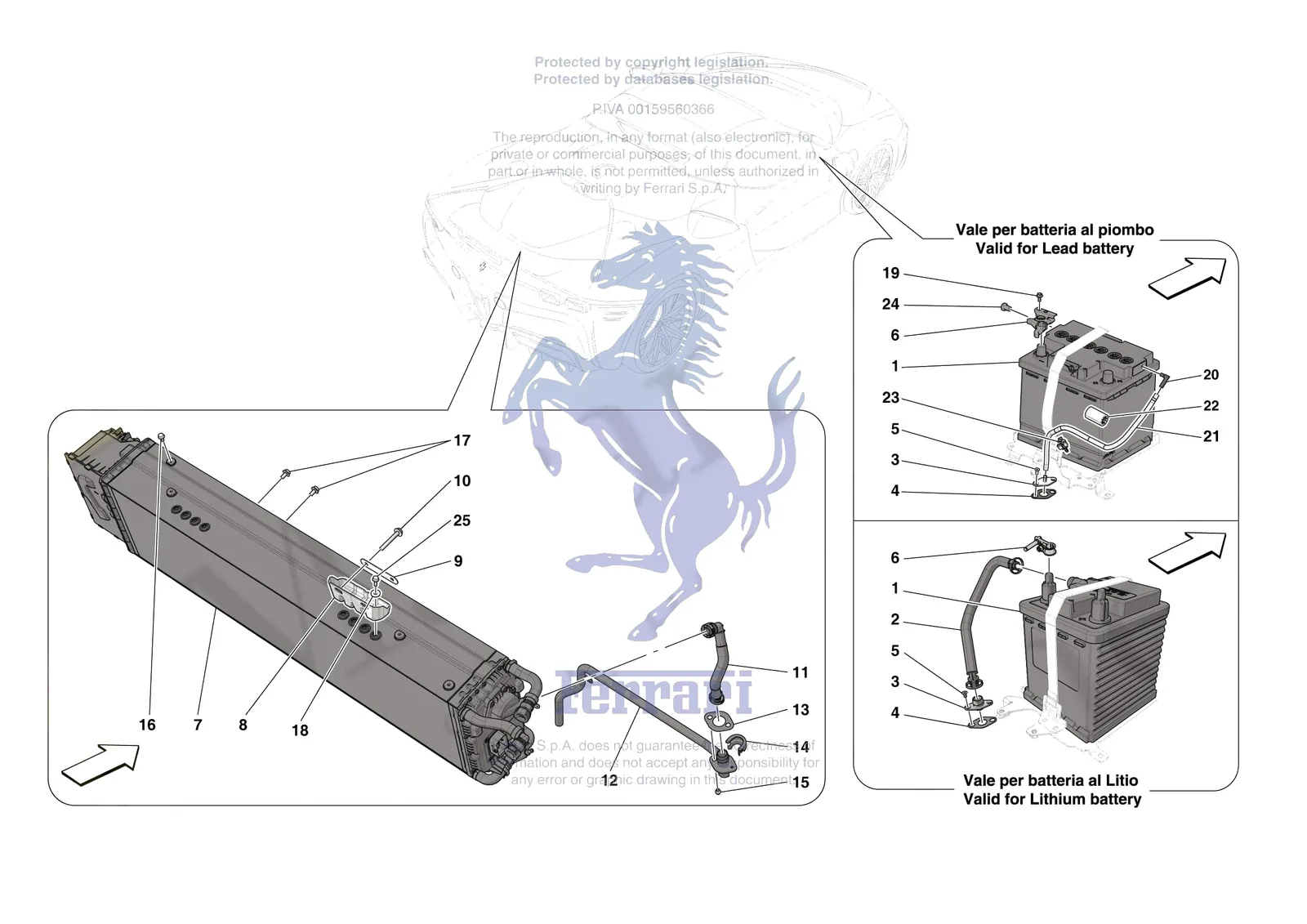

Exploded view of the [electrical system] - f.01 - batteries on the Ferrari SF90 Spider, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.01 - BATTERIES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0176.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 920814 | Ferrari Lithium Battery - 920814 | Superseded | Order 966818 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 949042 | Ferrari Battery 50Ah - 949042 | $1,376.91 | Available, ships in 3-6 days |
| 1 | 966818 | Ferrari Lithium Battery - 966818 | $6,373.59 | Special order, ships in 7-14 days |
| 2 | 871710 | Ferrari Tubo Venting Corrugato Lvb - 871710 | $231.42 | Special order, ships in 7-14 days |
| 2 | 763184 | Ferrari Venting Pipe - 763184 | $214.19 | Special order, ships in 7-14 days |
| 2 | 934244 | Ferrari Venting Pipe - 934244 | $226.49 | Special order, ships in 7-14 days |
| 2 | 955843 | Ferrari Venting Pipe - 955843 | $231.42 | Special order, ships in 7-14 days |
| 3 | 950721 | Ferrari Battery Vent Block - 950721 | $130.47 | Special order, ships in 7-14 days |
| 3 | 935783 | Ferrari Blocchetto Sfiato Venting Lv - 935783 | $117.99 | Special order, ships in 7-14 days |
| 4 | 817742 | Ferrari Pipe Flange Gasket - 817742 | $65.55 | Special order, ships in 7-14 days |
| 5 | 14440634 | Ferrari SCREW - 14440634 | $0.31 | Available, ships in 3-6 days |
| 6 | 11163594 | Ferrari Battery Disconnector Terminal Clamp With Lever - 11163594 | $66.45 | Special order, ships in 7-14 days |
| 6 | 814570 | Ferrari Negative Battery Terminal - 814570 | $68.83 | Special order, ships in 7-14 days |
| 6 | 909078 | Ferrari Negative Battery Terminal - 909078 | $100.78 | Special order, ships in 7-14 days |
| 7 | 924449 | Ferrari Hvb Battery - 924449 | $41,439.66 | Contact us to order |
| 7 | 954475 | Ferrari HVB Battery - 954475 | $29,466.26 | Contact us to order |
| 8 | 898280 | Ferrari Upper HVB Fastener Bracket - 898280 | $135.39 | Special order, ships in 7-14 days |
| 9 | 898690 | Ferrari Spacer - 898690 | $34.44 | Special order, ships in 7-14 days |
| 10 | 872471 | Ferrari Hex Head Screw M8X60 + R. Imp.D8X2 - 872471 | $8.30 | Special order, ships in 7-14 days |
| 11 | 936890 | Ferrari Tubo Venting Corrug.Preforma - 936890 | $145.25 | Special order, ships in 7-14 days |
| 12 | 863266 | Ferrari Tubo Venting Hvb Esterno Avv - 863266 | $243.74 | Special order, ships in 7-14 days |
| 13 | 829093 | Ferrari Guarnizione Tubo Venting Hvb - 829093 | $24.05 | Special order, ships in 7-14 days |
| 14 | 926481 | Ferrari Secondary Lock Tubo Di Venti - 926481 | $19.19 | Special order, ships in 7-14 days |
| 15 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 16 | 16285924 | Ferrari Screw - 16285924 | $0.40 | Available, ships in 3-6 days |
| 17 | 872469 | Ferrari Vite Tef M8X18+R.I Imp. D8X - 872469 | $2.82 | Special order, ships in 7-14 days |
| 18 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 19 | 13836211 | Ferrari Screw - 13836211 | $0.54 | Available, ships in 3-6 days |
| 19 | 16296924 | Ferrari Screw M6 x 14 TE - 16296924 | $0.54 | Available, ships in 3-6 days |
| 20 | 199631 | Ferrari Union - 199631 | $0.82 | Available, ships in 3-6 days |
| 21 | 743561 | Ferrari Battery Purge Pipe - 743561 | $98.46 | Special order, ships in 7-14 days |
| 21 | 951140 | Ferrari Battery Purge Pipe - 951140 | $100.93 | Special order, ships in 7-14 days |
| 22 | 322605 | Ferrari Spacer - 322605 | $4.35 | Special order, ships in 7-14 days |
| 23 | 310112 | Ferrari Clip - 310112 | $1.30 | Special order, ships in 7-14 days |
| 24 | 834740 | Ferrari Battery Breather Cap - 834740 | $2.01 | Special order, ships in 7-14 days |
