Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.04 - OTHER ELECTRICAL CONTROLS (diagram 0179)
Exploded view of the [electrical system] - f.04 - other electrical controls on the Ferrari SF90 Spider, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

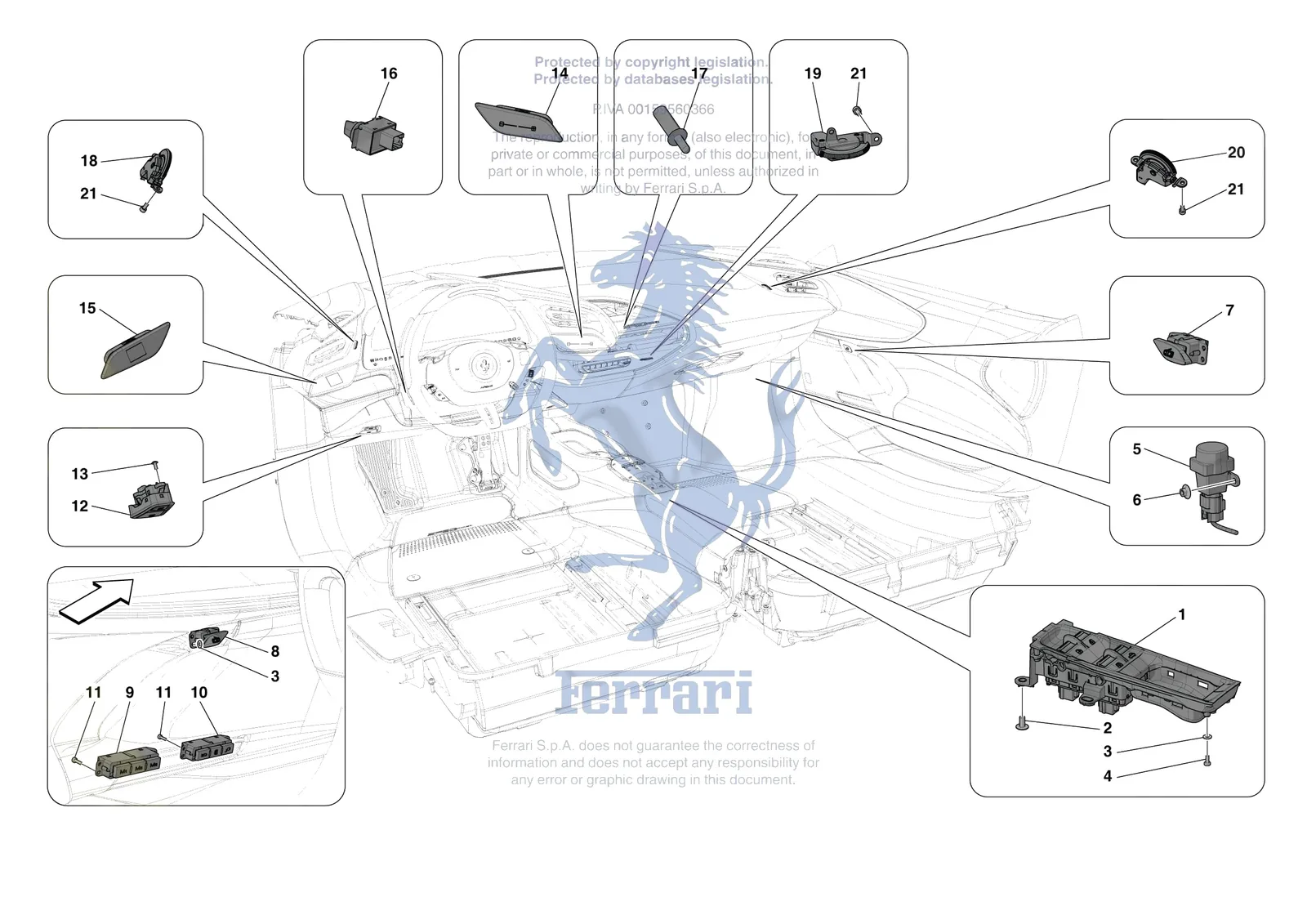

![Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.04 - OTHER ELECTRICAL CONTROLS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0179.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 922357 | Ferrari LH Drivers Side Satellite Control - 922357 | Superseded | Order 965151 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 1 | 981516 | Ferrari Compl. Power Window Button B - 981516 | $1,401.51 | Special order, ships in 7-14 days |
| 2 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 3 | 12639901 | Ferrari Washer - 12639901 | $0.17 | Available, ships in 3-6 days |
| 4 | 13270417 | Ferrari Screw 3x8 - 13270417 | $0.13 | Special order, ships in 7-14 days |
| 5 | 163675 | Ferrari Inertia Switch - 163675 | $39.46 | Available, ships in 3-6 days |
| 6 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 6 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 7 | 815829 | Ferrari Comando E-Latch Interno_Port - 815829 | $320.06 | Special order, ships in 7-14 days |
| 8 | 797739 | Ferrari Comando E-Latch Interno_Port - 797739 | $320.06 | Special order, ships in 7-14 days |
| 9 | 923516 | Ferrari Seat Memory Buttons - 923516 | $562.96 | Special order, ships in 7-14 days |
| 10 | 923517 | Ferrari Luggage Compartment Lid And - 923517 | $2,642.81 | Contact us to order |
| 11 | 14418131 | Ferrari Screw M3 x 10 TCEI - 14418131 | $0.38 | Available, ships in 3-6 days |
| 12 | 319555 | Ferrari EPB Switch With Autopark Disable - 319555 | $417.97 | Special order, ships in 7-14 days |
| 13 | 65752800 | Ferrari Screw M4 x 10 TBEI - 65752800 | $4.12 | Available, ships in 3-6 days |
| 14 | 769368 | Ferrari LH Driver Side Satellite Con - 769368 | $2,458.79 | Special order, ships in 7-14 days |
| 14 | 769355 | Ferrari RH Driver Side Satellite Con - 769355 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965147 | Ferrari LH Driver Side Satellite Con - 965147 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965148 | Ferrari LH Driver Side Satellite Con - 965148 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965149 | Ferrari LH Driver Side Satellite Con - 965149 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965150 | Ferrari LH Driver Side Satellite Con - 965150 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 926151 | Ferrari LH Drivers Side Satellite Control - 926151 | $2,433.03 | Special order, ships in 7-14 days |
| 15 | 965151 | Ferrari LH Drivers Side Satellite Control - 965151 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965152 | Ferrari LH Drivers Side Satellite Control - 965152 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965153 | Ferrari LH Drivers Side Satellite Control - 965153 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965160 | Ferrari RH Driver Side Satellite Con - 965160 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 934275 | Ferrari RH Driver Side Satellite Control - 934275 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965154 | Ferrari RH Driver Side Satellite Control - 965154 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965155 | Ferrari RH Driver Side Satellite Control - 965155 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965156 | Ferrari RH Driver Side Satellite Control - 965156 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965157 | Ferrari RH Driver Side Satellite Control - 965157 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965158 | Ferrari RH Driver Side Satellite Control - 965158 | $2,458.79 | Special order, ships in 7-14 days |
| 15 | 965159 | Ferrari RH Driver Side Satellite Control - 965159 | $2,458.79 | Special order, ships in 7-14 days |
| 16 | 193862 | Ferrari Steering Column Adjustment Control - 193862 | $93.17 | Available, ships in 3-6 days |
| 17 | 188266 | Ferrari GLOVE COMPARTMENT LIGHT BUTTON - 188266 | $49.14 | Special order, ships in 7-14 days |
| 18 | 286443 | Ferrari Centre Air Vent Control - 286443 | $228.64 | Special order, ships in 7-14 days |
| 19 | 285313 | Ferrari LH Vent Control LHD - 285313 | $228.97 | Special order, ships in 7-14 days |
| 19 | 286444 | Ferrari RH Vent Control - 286444 | $228.64 | Special order, ships in 7-14 days |
| 20 | 82893600 | Ferrari Lower Central Air Vent Control - 82893600 | $228.64 | Special order, ships in 7-14 days |
| 21 | 14418924 | Ferrari Screw M4 x 8 TCEI - 14418924 | $1.04 | Available, ships in 3-6 days |
