Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS (diagram 0184)

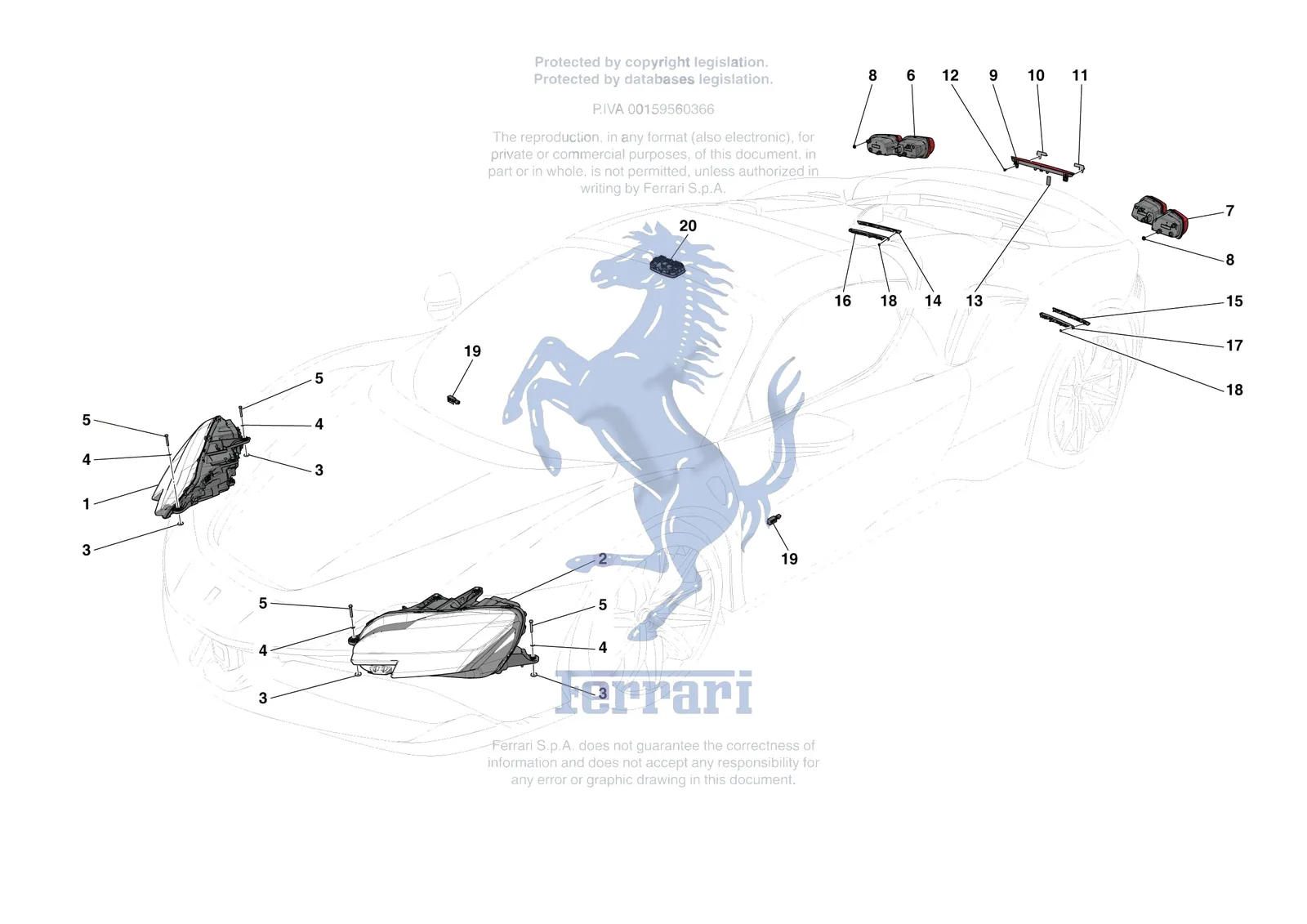

Exploded view of the [electrical system] - f.09 - lighting systems on the Ferrari SF90 Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.09 - LIGHTING SYSTEMS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0184.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10413870 | Ferrari Belleville Washer - 10413870 | Superseded | Order 12646724 instead | |
| 10903221 | Ferrari Bolt - 10903221 | Superseded | Order 10903224 instead | |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12601570 | Ferrari Washer - 12601570 | Superseded | Order 12646724 instead | |
| 12601571 | Ferrari Washer - 12601571 | Superseded | Order 12646724 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 12646721 | Ferrari Washer - 12646721 | Superseded | Order 12646724 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 882834 | Ferrari Proiettore Dx -Ece/China Med - 882834 | $7,237.21 | Special order, ships in 7-14 days |
| 1 | 816045 | Ferrari RH Headlamp - 816045 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 841108 | Ferrari RH Headlamp - 841108 | $7,166.34 | Special order, ships in 7-14 days |
| 1 | 882836 | Ferrari RH Headlamp - 882836 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 882838 | Ferrari RH Headlamp - 882838 | $7,241.39 | Special order, ships in 7-14 days |
| 1 | 882840 | Ferrari RH Headlamp - 882840 | $7,164.24 | Special order, ships in 7-14 days |
| 2 | 816044 | Ferrari LH Headlamp - 816044 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 841109 | Ferrari LH Headlamp - 841109 | $7,166.34 | Special order, ships in 7-14 days |
| 2 | 882837 | Ferrari LH Headlamp - 882837 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 882839 | Ferrari LH Headlamp - 882839 | $7,241.39 | Special order, ships in 7-14 days |
| 2 | 882841 | Ferrari LH Headlamp - 882841 | $7,164.24 | Special order, ships in 7-14 days |
| 2 | 882835 | Ferrari Proiettore Sx -Ece/China Med - 882835 | $7,237.21 | Special order, ships in 7-14 days |
| 3 | 68040000 | Ferrari Washer 6X20x2 - 68040000 | $0.27 | Available, ships in 3-6 days |
| 3 | 12646724 | Ferrari Washer 8.45-20x2 - 12646724 | $0.19 | Available, ships in 3-6 days |
| 4 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 5 | 10903224 | Ferrari Screw M6 x 40 - 10903224 | $0.50 | Available, ships in 3-6 days |
| 6 | 802939 | Ferrari Fanale Dx - 802939 | $1,816.58 | Special order, ships in 7-14 days |
| 6 | 848880 | Ferrari RH Tail Light USA - 848880 | $1,838.47 | Special order, ships in 7-14 days |
| 7 | 802938 | Ferrari Fanale Sx - 802938 | $1,816.58 | Special order, ships in 7-14 days |
| 7 | 848879 | Ferrari LH Tail Light USA - 848879 | $1,838.47 | Special order, ships in 7-14 days |
| 8 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 9 | 934868 | Ferrari Terzo Stop - 934868 | $393.93 | Special order, ships in 7-14 days |
| 10 | 961495 | Ferrari RH Third Brake Light Reinforcement Bracket - 961495 | $49.22 | Special order, ships in 7-14 days |
| 11 | 961494 | Ferrari LH Third Brake Light Reinforcement Bracket - 961494 | $49.22 | Special order, ships in 7-14 days |
| 12 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 13 | 823926 | Ferrari Third Stop Light Rubber Spac - 823926 | $8.72 | Special order, ships in 7-14 days |
| 14 | 84806800 | Ferrari Right Rear Reflector - 84806800 | $29.40 | In stock |
| 15 | 84806900 | Ferrari Left Rear Reflector - 84806900 | $29.75 | In stock |
| 16 | 813788 | Ferrari Bracket For RH Reflector - 813788 | $44.29 | Special order, ships in 7-14 days |
| 17 | 813796 | Ferrari Bracket For LH Reflector - 813796 | $44.29 | Special order, ships in 7-14 days |
| 18 | 84784600 | Ferrari Washer For Pin - 84784600 | $43.68 | Special order, ships in 7-14 days |
| 19 | 318013 | Ferrari Light Unit - 318013 | $61.45 | Special order, ships in 7-14 days |
| 20 | 744262 | Ferrari Plafoniera Padiglione - 744262 | $1,770.31 | Special order, ships in 7-14 days |
