Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES (diagram 0189)

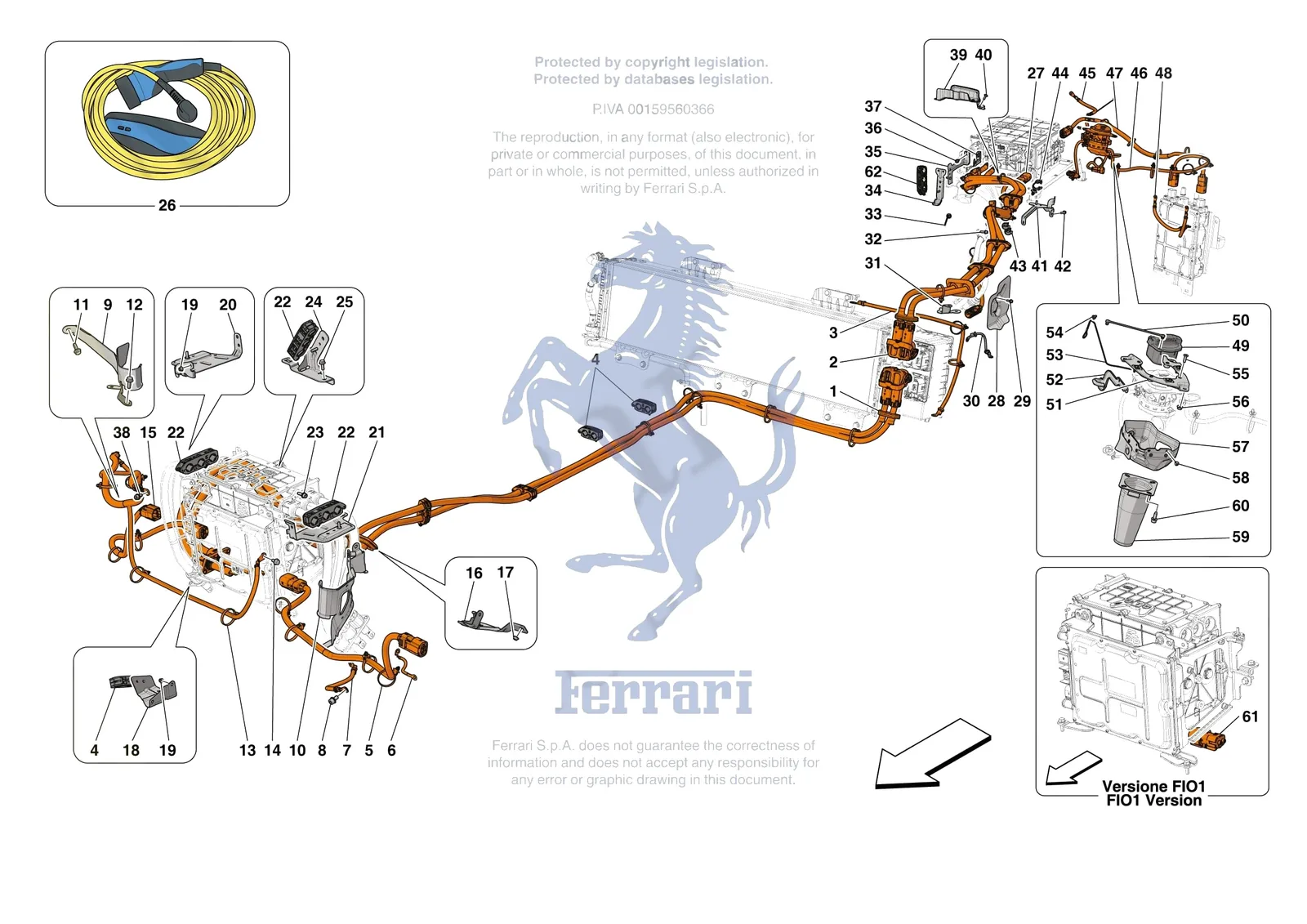

Exploded view of the [electrical system] - f.14 - high voltage wiring harnesses on the Ferrari SF90 Spider, with 85 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
873338Ferrari Cavo Da Inverter P4 A Dcdc - 873338SupersededOrder 783409 instead
935643Ferrari Cavo Sblocco Emergenza Att P - 935643SupersededOrder 811962 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
809597Ferrari RH Hv Cable Holder Bracket - 809597SupersededOrder 850764 instead
1871523Ferrari Cavo Hv Da Hvb A Inv P4 Rev. - 871523$2,563.08Special order, ships in 7-14 days
1935813Ferrari Hv Cable From Hvb To P4 Inve - 935813$2,563.08Special order, ships in 7-14 days
2927181Ferrari Cable from HVB Battery to P2 Inverter - 927181$2,345.00Special order, ships in 7-14 days
3879698Ferrari Cavo Massa Hvb - 879698$66.45Special order, ships in 7-14 days
4917256Ferrari Gogna 2 Vani Con Rinforzo Cn - 917256SupersededOrder 961295 instead
4961295Ferrari Gogna 2 Vani Con Rinforzo Cn - 961295$10.91Special order, ships in 7-14 days
5873339Ferrari Cavo Da Inv P4 A Heater - 873339$738.64Special order, ships in 7-14 days
6873336Ferrari Cavo Massa Riscaldatore Elet - 873336$27.06Special order, ships in 7-14 days
7914122Ferrari Cavo Massa Assale Con Pdm M8 - 914122$41.82Special order, ships in 7-14 days
8280460Ferrari Screw M8 x 14 TCEI with Washer - 280460$9.16Available, ships in 3-6 days
9850764Ferrari RH HV Cable Holder Bracket - 850764$590.91Special order, ships in 7-14 days
10793224Ferrari LH Hv Cable Holder Bracket - 793224$418.56Special order, ships in 7-14 days
10809598Ferrari LH Hv Cable Holder Bracket - 809598$418.56Special order, ships in 7-14 days
1116296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
13958956Ferrari Cavo Massa Inverter P4/Dcdc - 958956$179.73Special order, ships in 7-14 days
1416285924Ferrari Screw - 16285924$0.40Available, ships in 3-6 days
15850612Ferrari Cable From P4 Inverter To Dc - 850612$886.38Special order, ships in 7-14 days
15783409Ferrari Cavo Da Inverter P4 A Dcdc - 783409$714.03Special order, ships in 7-14 days
16934889Ferrari Firewall Bracket For Hvb Cab - 934889$91.08Special order, ships in 7-14 days
16915132Ferrari Firewall Bracket for HVB Cables to P4 Inverter - 915132$64.00Special order, ships in 7-14 days
1713046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
18855351Ferrari Compl. Lower RH P4 HV Cable Bracket - 855351$59.07Special order, ships in 7-14 days
20897127Ferrari Compl. RH P4 HV Cable Bracket - 897127$93.53Special order, ships in 7-14 days
21918553Ferrari Complete LH High Voltage Cable Bracket - 918553$93.53Special order, ships in 7-14 days
22983081Ferrari Triple Retainer Block - High Voltage Loom - 983081$86.15Special order, ships in 7-14 days
23323668Ferrari Screw - 323668$0.65Special order, ships in 7-14 days
24890901Ferrari Compl. HVB DC-DC Cable Bracket - 890901$71.38Special order, ships in 7-14 days
24934708Ferrari Compl. Hvb Dcdc Cable Bracke - 934708$83.68Special order, ships in 7-14 days
2516281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
26811457Ferrari HVB Battery Charger - 811457$1,147.41Special order, ships in 7-14 days
26830475Ferrari HVB Battery Charger - 830475$1,873.35Special order, ships in 7-14 days
26879949Ferrari HVB Battery Charger - 879949$1,049.07Special order, ships in 7-14 days
26879950Ferrari HVB Battery Charger - 879950$1,212.98Special order, ships in 7-14 days
26879951Ferrari HVB Battery Charger - 879951$1,147.41Special order, ships in 7-14 days
26905975Ferrari HVB Battery Charger - 905975$1,606.40Special order, ships in 7-14 days
26924665Ferrari HVB Battery Charger - 924665$1,049.07Special order, ships in 7-14 days
26966429Ferrari HVB Battery Charger - 966429$1,049.07Special order, ships in 7-14 days
26966430Ferrari HVB Battery Charger - 966430$1,212.98Special order, ships in 7-14 days
26924664Ferrari Mrk HVB Battery Charger - UK - 924664$1,049.07Available, ships in 3-6 days
27873341Ferrari Cavo Da Inv P2 A Compressore - 873341$714.03Special order, ships in 7-14 days
28985240Ferrari Riparo Calore Compr. Ac - 985240$201.88Special order, ships in 7-14 days
29256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
30917360Ferrari Cavo Massa Compressore Hv - 917360$39.37Special order, ships in 7-14 days
31938656Ferrari HVC6 Cable Bracket on RHT Plate - 938656$56.60Special order, ships in 7-14 days
32231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
33918784Ferrari Clamp Hellermann Pa4.6 15 - 918784$0.82Special order, ships in 7-14 days
34856636Ferrari P2 Three Phase Cable Bracket - 856636$44.29Special order, ships in 7-14 days
35856635Ferrari P2 Three Phase Connector Bracket - 856635$49.22Special order, ships in 7-14 days
36323665Ferrari Allen Head Bolt with Washer M6X14 - 323665$0.63Special order, ships in 7-14 days
37924294Ferrari Bracket - High Voltage Cable HVC6 - 924294$44.29Special order, ships in 7-14 days
38231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
39933899Ferrari Riparo Calore Cavi Hv Trav. - 933899$320.06Special order, ships in 7-14 days
4085833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
41912176Ferrari P2 Inverter Two Phase Cable Bracket - 912176$73.85Special order, ships in 7-14 days
4216286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
4216285124Ferrari Screw 5x16 - 16285124SupersededOrder 16286024 instead
43292861Ferrari Clip - 292861$2.38Special order, ships in 7-14 days
44981342Ferrari Clip D.14-18.5 - 981342$4.79Special order, ships in 7-14 days
45958955Ferrari P2 Inverter Ground Cable - 958955$73.85Special order, ships in 7-14 days
46877010Ferrari Cable from OBC to Charging Socket - 877010$2,087.03Special order, ships in 7-14 days
46910644Ferrari Cavo Da Obc A Presa Di Ricar - 910644$1,748.17Special order, ships in 7-14 days
46877009Ferrari Cavo Obc A Presa Di Ricarica - 877009$2,063.59Special order, ships in 7-14 days
47873340Ferrari Cavo Da Obc A Inverter P2 - 873340$738.64Special order, ships in 7-14 days
48966277Ferrari Cavo Massa Obc - 966277$49.22Special order, ships in 7-14 days
49890449Ferrari Tappo Ferrari Presa Ric. Eur - 890449$110.61Special order, ships in 7-14 days
50905181Ferrari Charge Socket Cord - 905181$39.31Special order, ships in 7-14 days
51904473Ferrari Adattatore Presa Ric. Eur Ty - 904473$56.60Special order, ships in 7-14 days
51877012Ferrari Adattatore Presa Ricarica Na - 877012$73.85Special order, ships in 7-14 days
51890843Ferrari Charging Socket Adapter - 890843$73.85Special order, ships in 7-14 days
52914433Ferrari Manual Release Bracket Socket - 914433$103.38Special order, ships in 7-14 days
53811962Ferrari Emergency Release Cable - Charging Socket - 811962$2.93Special order, ships in 7-14 days
5486009300Ferrari Passacavo D.3.6-6Mm - 86009300$1.50Special order, ships in 7-14 days
54748925Ferrari Rubber Cable Grommet - 748925$4.16Special order, ships in 7-14 days
5514440724Ferrari Screw M5 x 16 TSEI - 14440724$0.65Available, ships in 3-6 days
5614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
57914283Ferrari Riparo Calore Presa Ric Tyco - 914283$369.30Special order, ships in 7-14 days
5816083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
59772957Ferrari Heat Shield - 772957$226.49Special order, ships in 7-14 days
6011568024Ferrari Screw - 11568024$1.97Special order, ships in 7-14 days
61923399Ferrari HV P4 INVERTER-HEATER CONNECTOR COVER - 923399Price on requestContact us for price and availability
62961316Ferrari Clip - 961316$14.84Available, ships in 3-6 days
