Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.18 - ELECTRIC AXLE COOLING (diagram 0193)

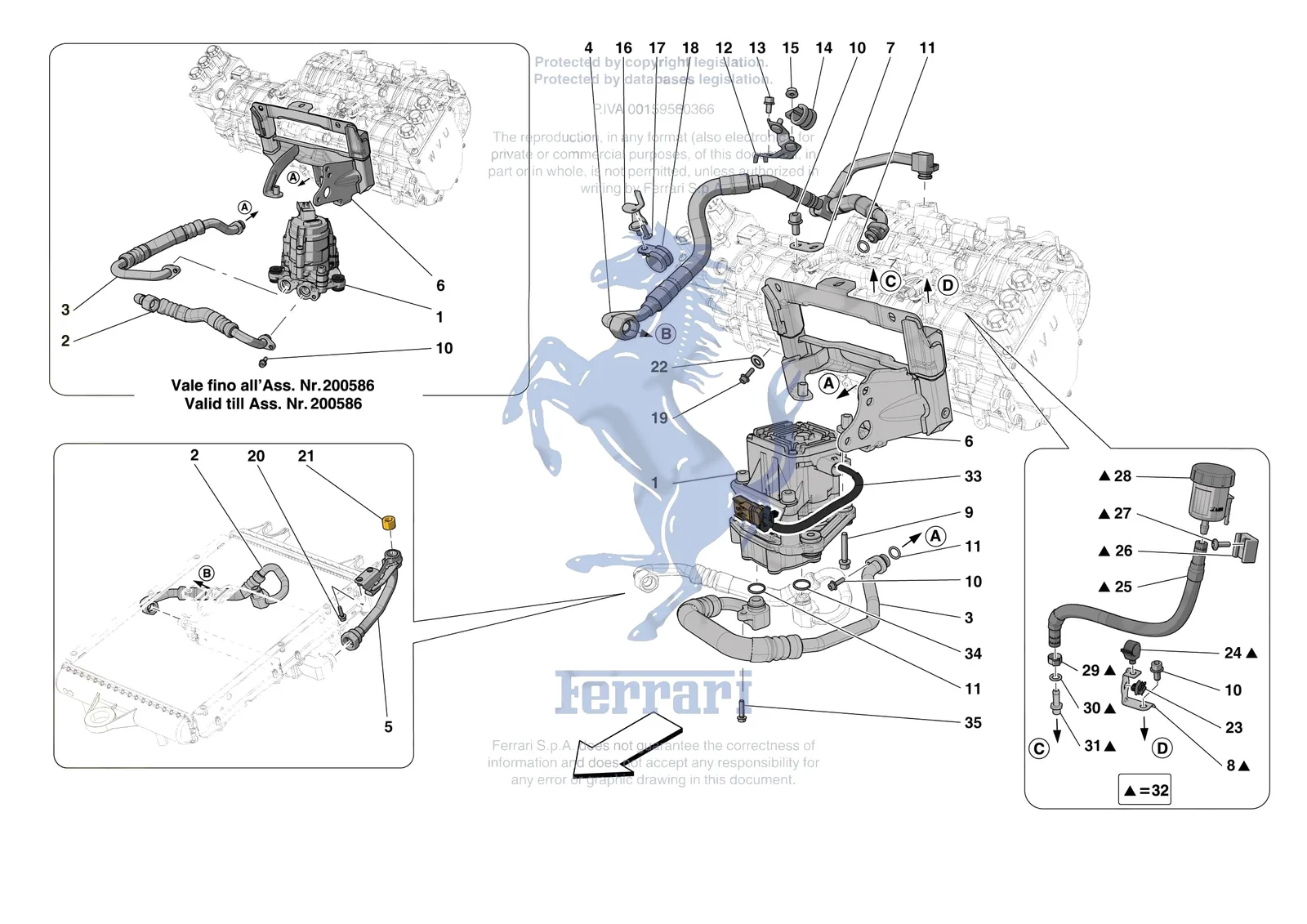

Exploded view of the [electrical system] - f.18 - electric axle cooling on the Ferrari SF90 Spider, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.18 - ELECTRIC AXLE COOLING exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0193.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 206536 | Ferrari Clip D.14 - 206536 | $0.92 | Special order, ships in 7-14 days | |
| 862859 | Ferrari LH Bracket - Vent Pipe for Axle Cooling - 862859 | Superseded | Order 766349 instead | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 55004829 | Ferrari Compl. Pump With Plate - 55004829 | $1,946.33 | Special order, ships in 7-14 days |
| 1 | 788210 | Ferrari Compl. Pump With Plate - 788210 | Superseded | Order 55004829 instead |
| 1 | 894450 | Ferrari Pompa Con Piastra Cpl. - 894450 | $4,319.49 | Special order, ships in 7-14 days |
| 1 | 904921 | Ferrari Pompa Con Piastra Cpl. - 904921 | Superseded | Order 894450 instead |
| 1 | 968766 | Ferrari Pompa Con Piastra Cpl. - 968766 | Superseded | Order 894450 instead |
| 2 | 830570 | Ferrari Oil Delivery Pipe - 830570 | $566.30 | Available, ships in 3-6 days |
| 2 | 867682 | Ferrari Tubo Mand. Olio Da Pompa A - 867682 | $467.80 | Special order, ships in 7-14 days |
| 3 | 830571 | Ferrari Oil Suction Pipe - 830571 | $615.54 | Available, ships in 3-6 days |
| 3 | 867683 | Ferrari Tubo Aspiraz.Olio Daassale A - 867683 | $467.80 | Special order, ships in 7-14 days |
| 4 | 878031 | Ferrari Tubo Ritorno Olio Daradiat.A - 878031 | $1,206.48 | Special order, ships in 7-14 days |
| 5 | 918097 | Ferrari Tubo Per Riempimento Cpl - 918097 | $467.80 | Special order, ships in 7-14 days |
| 6 | 822274 | Ferrari Subframe - 822274 | $590.91 | Available, ships in 3-6 days |
| 6 | 980011 | Ferrari Telaio Supporto Pompa Magna - 980011 | $492.43 | Special order, ships in 7-14 days |
| 7 | 862860 | Ferrari RH Bracket Oil Return Pipe - 862860 | $18.44 | Special order, ships in 7-14 days |
| 8 | 766349 | Ferrari LH Bracket - 766349 | $88.61 | Special order, ships in 7-14 days |
| 9 | 231622 | Ferrari Screw M6 x 35 - 231622 | $0.65 | Available, ships in 3-6 days |
| 10 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 11 | 286421 | Ferrari Gasket - 286421 | $1.88 | Available, ships in 3-6 days |
| 12 | 883407 | Ferrari Bracket - 883407 | $66.45 | Special order, ships in 7-14 days |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 14 | 10441690 | Ferrari P Clip D18mm - 10441690 | $3.91 | Special order, ships in 7-14 days |
| 15 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 16 | 879099 | Ferrari Bracket - 879099 | $61.52 | Special order, ships in 7-14 days |
| 17 | 85077900 | Ferrari Screw - 85077900 | $0.34 | Special order, ships in 7-14 days |
| 18 | 10441890 | Ferrari P Clip Bracket With Sheath D22 - 10441890 | $1.17 | Available, ships in 3-6 days |
| 19 | 14306334 | Ferrari Bolt - 14306334 | Superseded | Order 14306374 instead |
| 20 | 11566524 | Ferrari Screw M5X20 - 11566524 | $0.98 | Available, ships in 3-6 days |
| 21 | 14325140 | Ferrari Threaded Plug - 14325140 | $3.70 | Available, ships in 3-6 days |
| 22 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 22 | 12638521 | Ferrari Washer - 12638521 | Superseded | Order 12638524 instead |
| 23 | 896514 | Ferrari Clip Raymond Per Connetto - 896514 | $0.82 | Special order, ships in 7-14 days |
| 24 | 198253 | Ferrari Clip - 198253 | $7.40 | Special order, ships in 7-14 days |
| 25 | 335820 | Ferrari Dct Vent Pipe - 335820 | $492.43 | Special order, ships in 7-14 days |
| 26 | 301886 | Ferrari Tank Breather Mount - 301886 | $172.10 | Special order, ships in 7-14 days |
| 27 | 85629300 | Ferrari Screw M6 x 20 - 85629300 | $1.17 | Available, ships in 3-6 days |
| 28 | 301881 | Ferrari DCT Expansion Tank - 301881 | $49.28 | Special order, ships in 7-14 days |
| 29 | 13434670 | Ferrari Screw Collar D16.2mm - 13434670 | $1.44 | Available, ships in 3-6 days |
| 30 | 10284460 | Ferrari Washer - 10284460 | $0.31 | Available, ships in 3-6 days |
| 31 | 968342 | Ferrari Connector - 968342 | $167.40 | Special order, ships in 7-14 days |
| 32 | 896337 | Ferrari Electric AXLe Breather Kit - 896337 | $935.64 | Special order, ships in 7-14 days |
| 33 | 857738 | Ferrari P2/P4 Pump Connector Wiring - 857738 | $51.67 | Special order, ships in 7-14 days |
| 34 | 216851 | Ferrari O-Ring - 216851 | $5.44 | Special order, ships in 7-14 days |
| 35 | 797726 | Ferrari Screw - 797726 | $1.05 | Special order, ships in 7-14 days |
