Ferrari SF90 Spider — [ELECTRICAL SYSTEM] - F.19 - ELECTRIC MACHINE (diagram 0194)

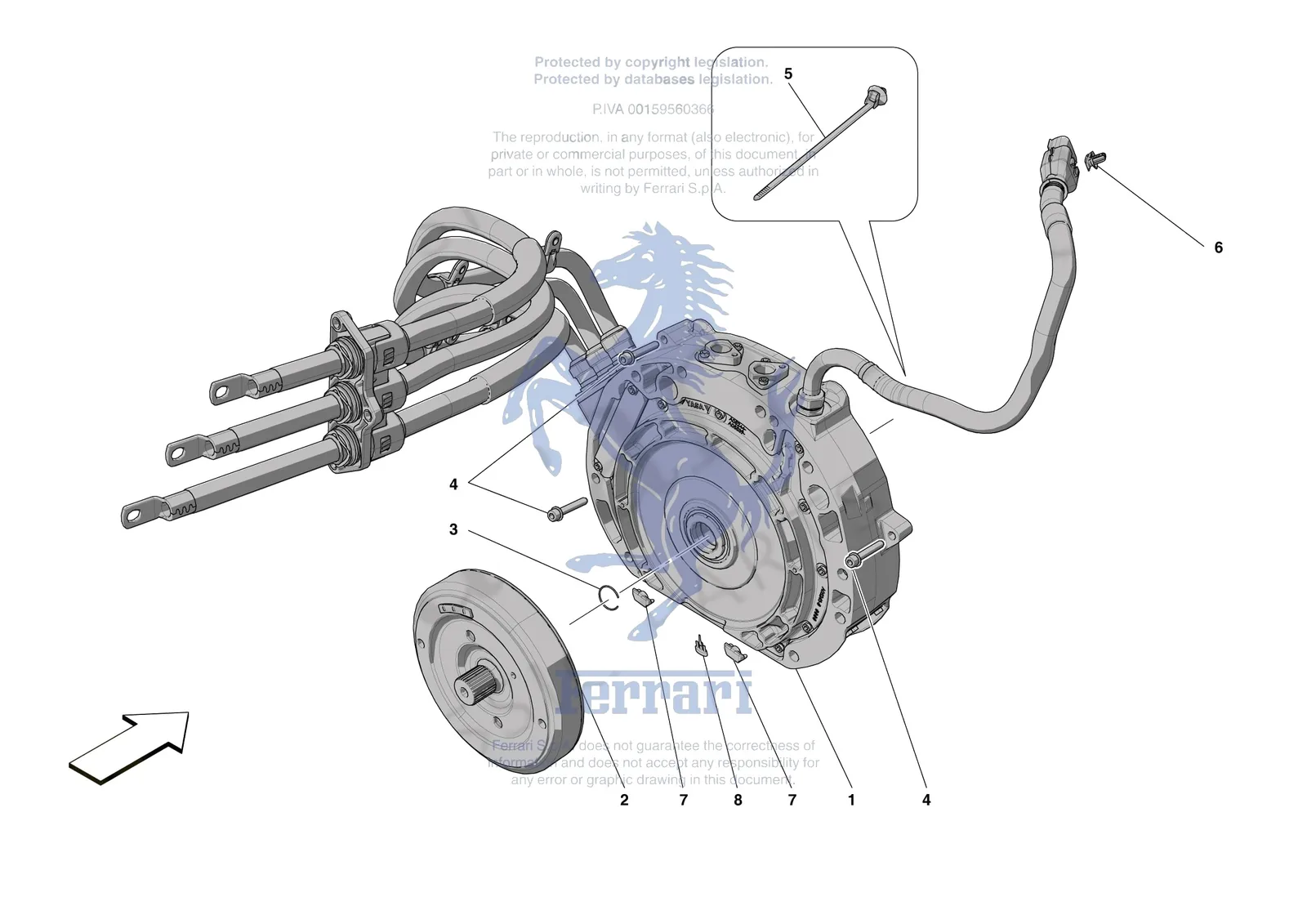

Exploded view of the [electrical system] - f.19 - electric machine on the Ferrari SF90 Spider, with 11 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Spider [ELECTRICAL SYSTEM] - F.19 - ELECTRIC MACHINE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-spider/0194.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14306824 | Ferrari Bolt M8 x 45 TCEI - 14306824 | $1.04 | Available, ships in 3-6 days | |
| 836023 | Ferrari Compl. Electric Machine - 836023 | Superseded | Order 880420 instead | |
| 1 | 744278 | Ferrari Compl. Electric Machine - 744278 | $18,010.20 | Contact us to order |
| 1 | 880420 | Ferrari Compl. Electric Machine - 880420 | $17,911.20 | Contact us to order |
| 2 | 878693 | Ferrari Volano Motore Dct - 878693 | $7,194.47 | Contact us to order |
| 3 | 828423 | Ferrari Snap Ring D.30.5X1.7 - 828423 | $17.71 | Special order, ships in 7-14 days |
| 4 | 285494 | Ferrari Screw 8x50 - 285494 | $1.99 | Available, ships in 3-6 days |
| 5 | 918784 | Ferrari Clamp Hellermann Pa4.6 15 - 918784 | $0.82 | Special order, ships in 7-14 days |
| 6 | 918833 | Ferrari Clip Hellermann Per Connetto - 918833 | $0.52 | Special order, ships in 7-14 days |
| 7 | 957818 | Ferrari Hole Plug - 957818 | $64.00 | Special order, ships in 7-14 days |
| 8 | 963205 | Ferrari Drainage Valve - 963205 | $51.67 | Special order, ships in 7-14 days |
