Ferrari SF90 Stradale — [ENGINE] - B.01 - CRANKCASE (diagram 0004)

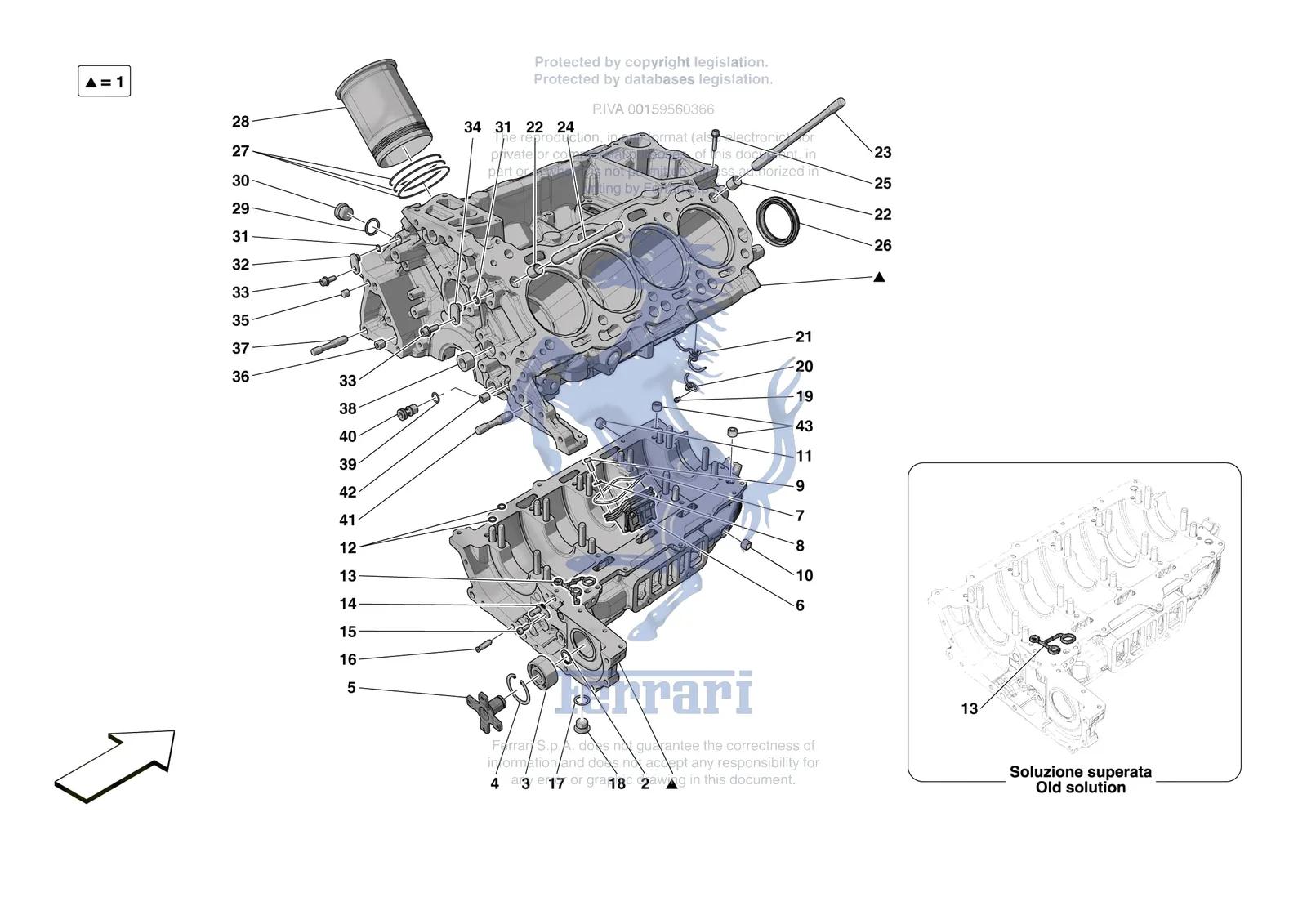

Exploded view of the [engine] - b.01 - crankcase on the Ferrari SF90 Stradale, with 53 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [ENGINE] - B.01 - CRANKCASE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
302154Ferrari Cap - 302154$13.03Special order, ships in 7-14 days
300499Ferrari Screw - 300499$1.44Special order, ships in 7-14 days
11066875Ferrari Snap Ring - 11066875SupersededOrder 11066876 instead
183447Ferrari Threaded Plug - 183447$18.48Available, ships in 3-6 days
194490Ferrari Threaded Plug - 194490SupersededOrder 164400 instead
194495Ferrari Threaded Plug - 194495SupersededOrder 282755 instead
14326001Ferrari Threaded Plug D 10x1.25 - 14326001SupersededOrder 282755 instead
11197779Ferrari Washer - 11197779SupersededOrder 11197774 instead
1817509Ferrari Assemblato Bas Sottobasament - 817509SupersededOrder 925899 instead
1925899Ferrari Assemblato Bas Sottobasament - 925899$7,829.33Special order, ships in 7-14 days
211066876Ferrari Circlip 20E - 11066876$0.13Available, ships in 3-6 days
3247049Ferrari Bearing - 247049$87.40Special order, ships in 7-14 days
411060276Ferrari Circlip - 11060276$0.92Available, ships in 3-6 days
5304697Ferrari Drive Joint - 304697$295.43Special order, ships in 7-14 days
6881112Ferrari Porta Valvole Cpl - 881112$344.69Special order, ships in 7-14 days
7103994Ferrari Gasket - 103994$9.33Special order, ships in 7-14 days
811197774Ferrari Conic Washer 6.4x12x1.2 - 11197774$0.12Available, ships in 3-6 days
913027024Ferrari Screw TCEI M6 x 16 - 13027024$0.38Special order, ships in 7-14 days
10164400Ferrari Threaded Plug - 164400$6.96Special order, ships in 7-14 days
11127635Ferrari Threaded Plug M18 x 11 x 1.5 - 127635$6.75Available, ships in 3-6 days
12134705Ferrari O-Ring - 134705$0.76In stock
13925945Ferrari Gasket - 925945$15.06Special order, ships in 7-14 days
13867186Ferrari Guarnizione Canali In Pres - 867186$19.22Special order, ships in 7-14 days
14339523Ferrari Assieme Sald.Ugello Raffred - 339523$108.31Special order, ships in 7-14 days
15282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
16766469Ferrari Pin for Tensioner - 766469$12.86Special order, ships in 7-14 days
1710259960Ferrari Copper Washer - 10259960$1.21In stock
18306145Ferrari 488 Crankcase Drain Plug - 306145$11.99In stock
19315493Ferrari Screw - 315493$2.13Special order, ships in 7-14 days
20298859Ferrari Piston Cooling Nozzle Assembly - 298859$44.29Special order, ships in 7-14 days
21298858Ferrari Piston Cooling Nozzle Assembly - 298858$64.00Special order, ships in 7-14 days
22185360Ferrari Centering Dowel - 185360$5.44Special order, ships in 7-14 days
23897847Ferrari Prigioniero M14X1.5 Gambo M1 - 897847$41.55Special order, ships in 7-14 days
24897848Ferrari Prigioniero M14X1.5 Gambo M1 - 897848$39.37Special order, ships in 7-14 days
25231620Ferrari/Maserati Screw - 231620$0.58In stock
26271598Ferrari/Maserati Front Crankshaft Oil Seal - 271598$62.78In stock
27338795Ferrari Guarnizione O-Ring (87 X 2) - 338795$7.63Special order, ships in 7-14 days
28334275Ferrari Canna Cilindri (Alesagg - 334275$441.81Special order, ships in 7-14 days
2910263460Ferrari/Maserati Copper Washer - 10263460$1.93In stock
30307477Ferrari/Maserati Crankcase Threaded Plug - 307477$5.35In stock
31291544Ferrari O-Ring 1.50X7 - 291544$0.79Special order, ships in 7-14 days
32753181Ferrari Tappo - 753181$15.29Special order, ships in 7-14 days
33282393Ferrari Screw 6x16 - 282393$1.48Available, ships in 3-6 days
34781384Ferrari Tappo - 781384$15.29Special order, ships in 7-14 days
35311001Ferrari Alignment Dowel - 311001$6.10Special order, ships in 7-14 days
36291078Ferrari Threaded Plug 12x11 - 291078$5.02Special order, ships in 7-14 days
37278120Ferrari Stud Bolt - 278120$39.37Special order, ships in 7-14 days
38282753Ferrari Cover - Threaded Plug - 282753$13.09Special order, ships in 7-14 days
39137192Ferrari/Maserati O-Ring - 137192$1.25In stock
40901018Ferrari Tappo Passaggio Olio - 901018$41.82Special order, ships in 7-14 days
41342332Ferrari Prigioniero M11X1.5 Gambo M - 342332$32.79Special order, ships in 7-14 days
42282755Ferrari Threaded Plug D 10x1.25 - 282755$4.35Available, ships in 3-6 days
43939188Ferrari Bushing - 939188$10.25Special order, ships in 7-14 days
