Ferrari SF90 Stradale — [ENGINE] - B.05 - PISTONS AND CONNECTING RODS (diagram 0008)

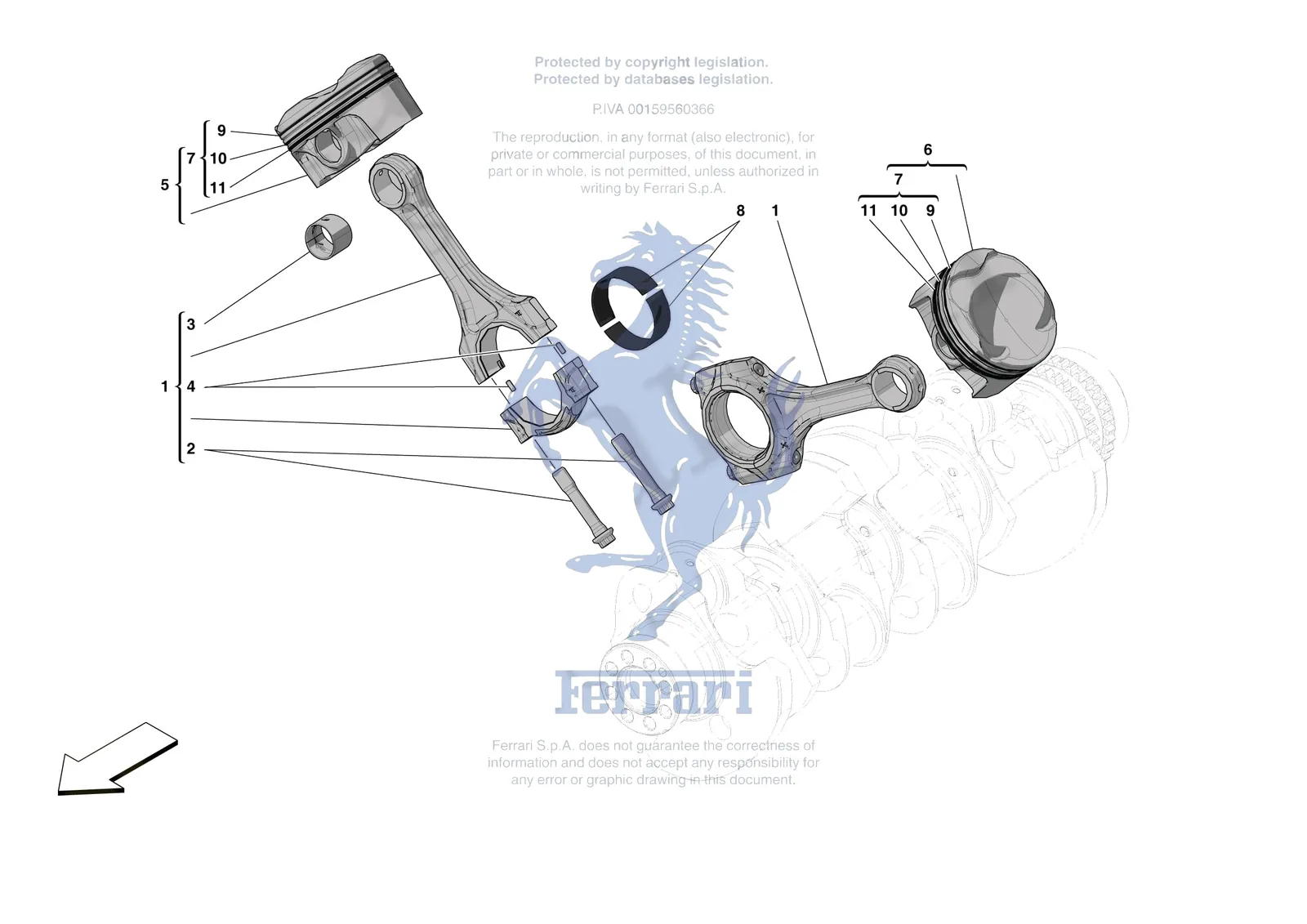

Exploded view of the [engine] - b.05 - pistons and connecting rods on the Ferrari SF90 Stradale, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.05 - PISTONS AND CONNECTING RODS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0008.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 849385 | Ferrari Biella E Cappello Completa - 849385 | $389.83 | Special order, ships in 7-14 days |
| 2 | 270248 | Ferrari Connecting Rod Tightening Screw - 270248 | $45.94 | Special order, ships in 7-14 days |
| 3 | 849393 | Ferrari Bushing - 849393 | $56.60 | Special order, ships in 7-14 days |
| 4 | 292751 | Ferrari Alignment Pin - 292751 | $44.24 | Special order, ships in 7-14 days |
| 5 | 882750 | Ferrari Pistone Cpl Bancata Dx (D.88 - 882750 | $960.25 | Special order, ships in 7-14 days |
| 6 | 882751 | Ferrari Pistone Cpl Bancata Sx (D.88 - 882751 | $960.25 | Special order, ships in 7-14 days |
| 8 | 312692 | Ferrari Connecting Rod Half-Bearing - 312692 | $31.99 | Available, ships in 3-6 days |
| 8 | 312693 | Ferrari Connecting Rod Half-Bearing - 312693 | $31.99 | Special order, ships in 7-14 days |
| 8 | 312694 | Ferrari Connecting Rod Half-Bearing - 312694 | $31.99 | Available, ships in 3-6 days |
| 9 | 867916 | Ferrari Top Ring - 867916 | $125.54 | Special order, ships in 7-14 days |
| 10 | 867917 | Ferrari Second Ring - 867917 | $73.85 | Special order, ships in 7-14 days |
| 11 | 860820 | Ferrari Oil Control Ring - 860820 | $100.93 | Special order, ships in 7-14 days |
