Ferrari SF90 Stradale — [ENGINE] - B.11 - LUBRICATION FILTERS (diagram 0016)

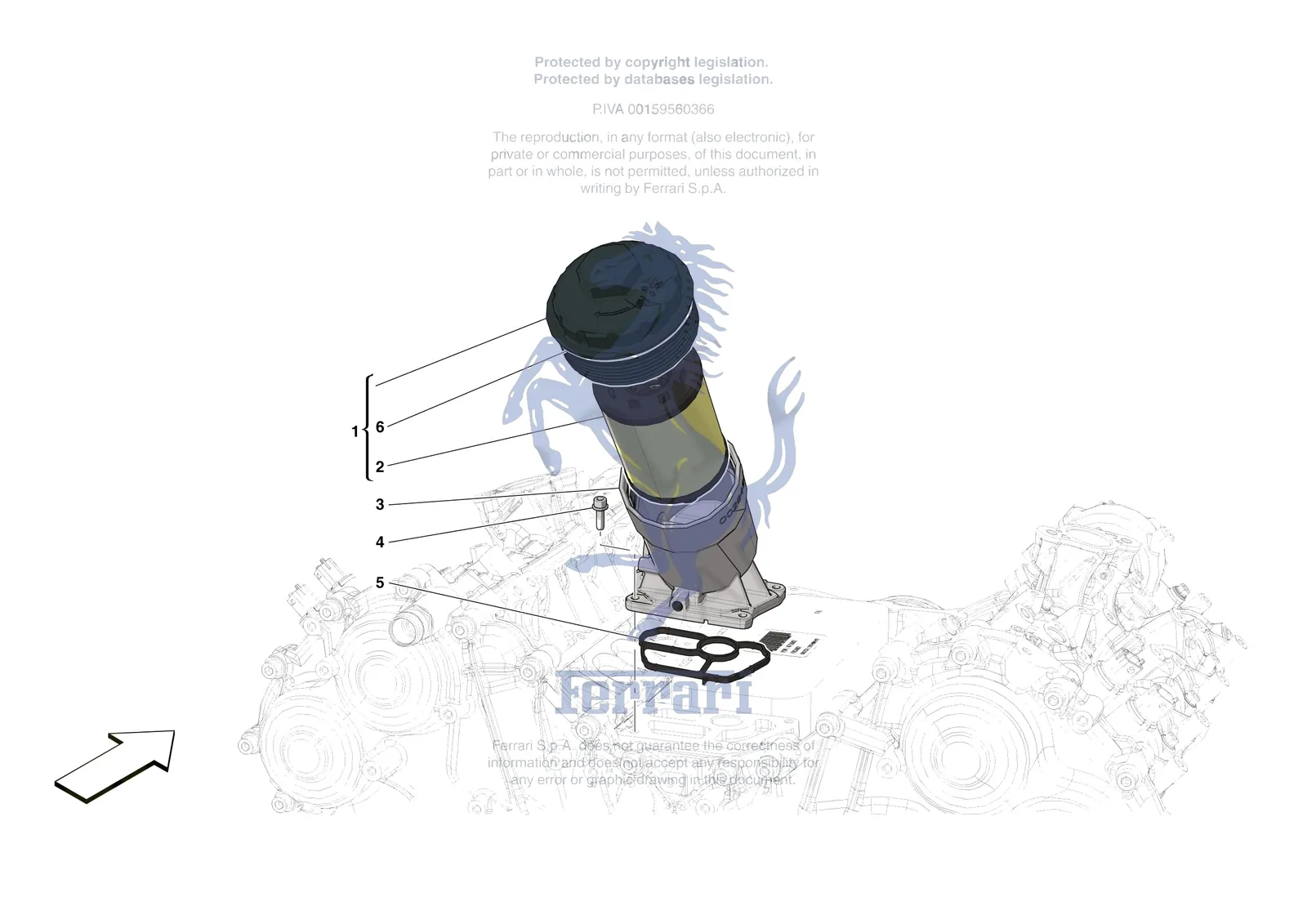

Exploded view of the [engine] - b.11 - lubrication filters on the Ferrari SF90 Stradale, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.11 - LUBRICATION FILTERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0016.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 295943 | Ferrari/Maserati Oil Filter Cartridge w/Cap - 295943 | $170.00 | In stock |
| 2 | CALTOCSK1 | Ferrari California T Oil Change Service Kit - CALTOCSK1 | $97.70 | In stock |
| 2 | CALTOCSK2 | Ferrari California T Oil Change Service Kit - CALTOCSK2 | $135.00 | In stock |
| 2 | 295948 | Ferrari/Maserati Oil Filter Cartridge - 295948 | $89.85 | In stock |
| 3 | 848496 | Ferrari Oil Filter Mount - 848496 | $714.03 | Special order, ships in 7-14 days |
| 4 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 5 | 270805 | Ferrari Gasket - 270805 | $26.24 | Special order, ships in 7-14 days |
| 6 | 968099 | Ferrari Oil Filter O Ring - 968099 | $14.62 | Special order, ships in 7-14 days |
