Ferrari SF90 Stradale — [ENGINE] - B.18 - FUEL PUMPS (diagram 0023)

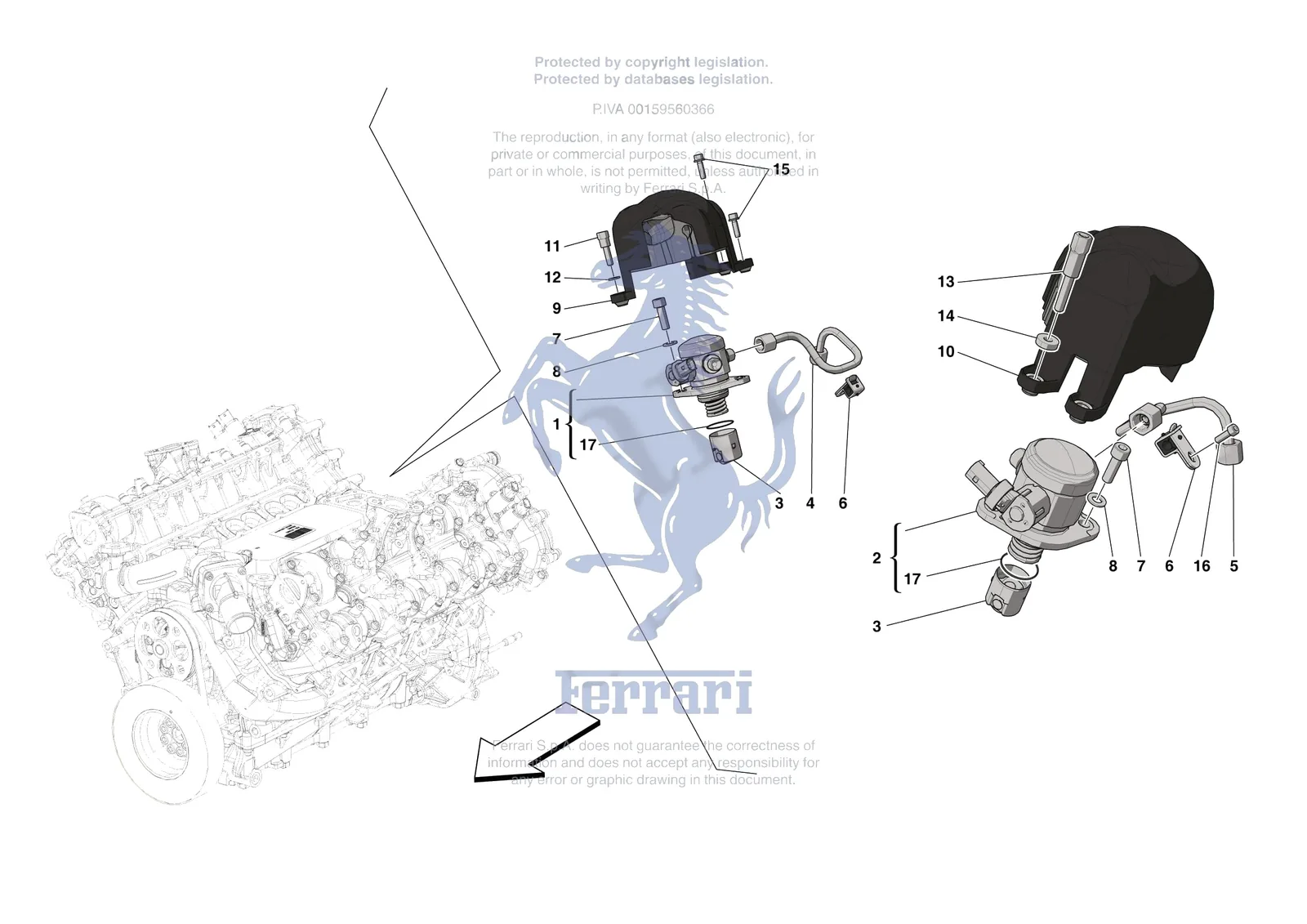

Exploded view of the [engine] - b.18 - fuel pumps on the Ferrari SF90 Stradale, with 20 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.18 - FUEL PUMPS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0023.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 11197779 | Ferrari Washer - 11197779 | Superseded | Order 11197774 instead | |
| 1 | 878119 | Ferrari Pompa Benzina A.P. Hdp6 Tra - 878119 | $1,027.22 | Special order, ships in 7-14 days |
| 2 | 878118 | Ferrari Pompa Benzina A.P. Hdp6 Tra - 878118 | $1,094.32 | Special order, ships in 7-14 days |
| 3 | 331787 | Ferrari HIGH PRESSURE PUMP CAM FOLLOWER - 331787 | $105.70 | Special order, ships in 7-14 days |
| 4 | 767779 | Ferrari RH High Pressure Fuel Pipe - 767779 | $189.56 | Special order, ships in 7-14 days |
| 5 | 767780 | Ferrari LH Fuel Rail Pipe - 767780 | $182.18 | Special order, ships in 7-14 days |
| 6 | 341730 | Ferrari Fuel Pipe Fastener Bracket - 341730 | $81.11 | Special order, ships in 7-14 days |
| 7 | 14306434 | Ferrari Screw M8x25 - 14306434 | $0.71 | Special order, ships in 7-14 days |
| 8 | 12638524 | Ferrari Flat Washer 8.15x15x1.5 - 12638524 | $0.12 | Available, ships in 3-6 days |
| 9 | 780924 | Ferrari Cover Per Insonorizz Pompa G - 780924 | $224.04 | Special order, ships in 7-14 days |
| 10 | 780925 | Ferrari Cover Per Insonorizz Pompa G - 780925 | $224.04 | Special order, ships in 7-14 days |
| 11 | 233513 | Ferrari Stud Bolt - 233513 | Price on request | Contact us for price and availability |
| 12 | 11197774 | Ferrari Conic Washer 6.4x12x1.2 - 11197774 | $0.12 | Available, ships in 3-6 days |
| 13 | 208765 | Ferrari Stud Bolt - 208765 | $12.21 | Available, ships in 3-6 days |
| 14 | 12648101 | Ferrari WASHER - 12648101 | $5.23 | Special order, ships in 7-14 days |
| 15 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 16 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 17 | 763134 | Ferrari Fuel Pump Seal - 763134 | $6.96 | Special order, ships in 7-14 days |
