Ferrari SF90 Stradale — [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES (diagram 0025)

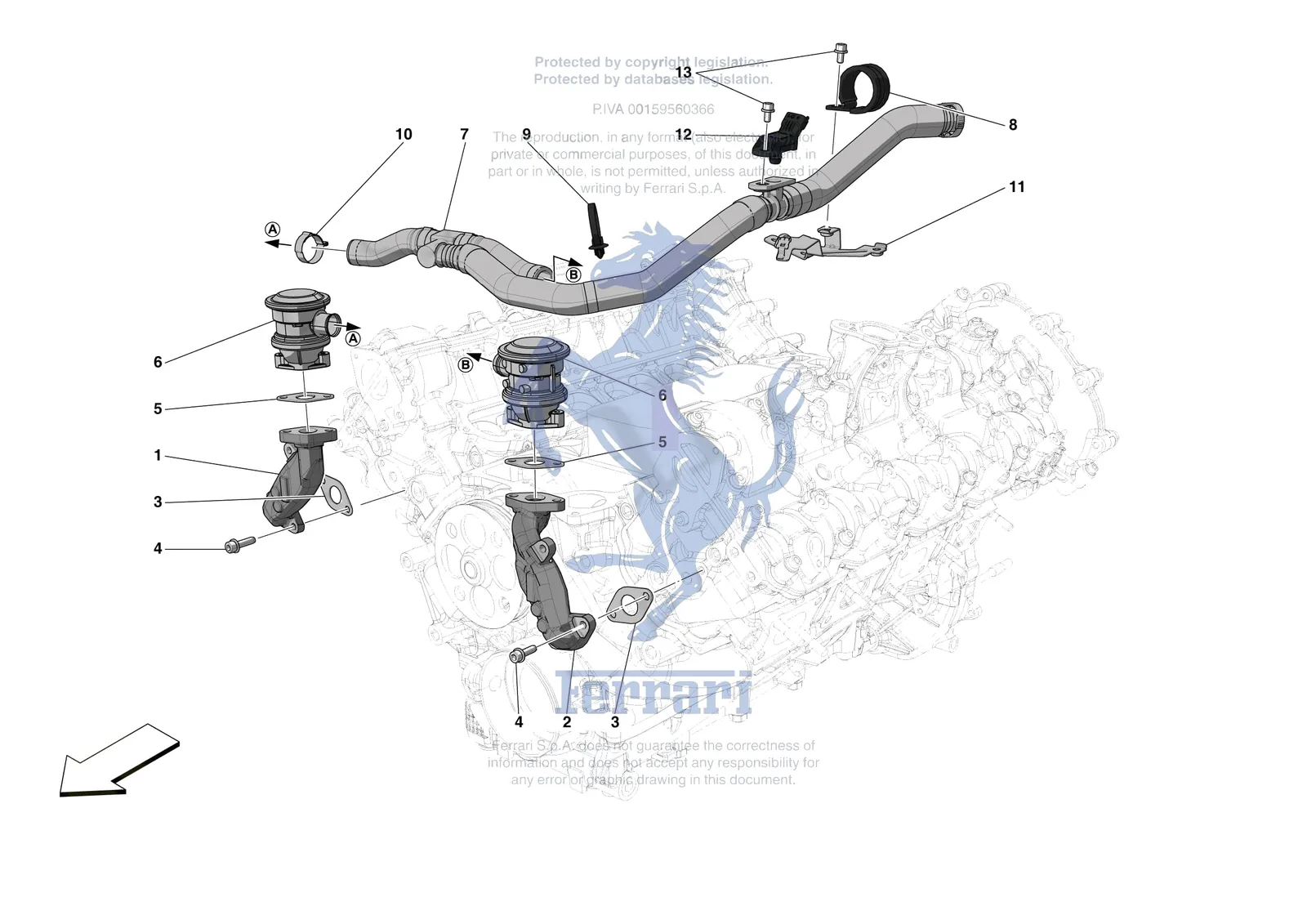

Exploded view of the [engine] - b.20 - emissions control system pipes and valves on the Ferrari SF90 Stradale, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0025.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 291225 | Ferrari P clip Bracket With Sheath - 291225 | $7.86 | Special order, ships in 7-14 days | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 781217 | Ferrari Supp. Valvola Aria Second. D - 781217 | $270.83 | Special order, ships in 7-14 days |
| 2 | 815965 | Ferrari Supp. Valvola Aria Second. S - 815965 | $270.83 | Special order, ships in 7-14 days |
| 3 | 186781 | Ferrari/Maserati Secondary Air Gasket - 186781 | $6.05 | In stock |
| 4 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 5 | 781376 | Ferrari Gasket - 781376 | $6.32 | Special order, ships in 7-14 days |
| 6 | 284235 | Ferrari Secondary Air System Valve - 284235 | $417.97 | Available, ships in 3-6 days |
| 7 | 791847 | Ferrari Tubo Aria Second Da Pompa A - 791847 | $492.43 | Special order, ships in 7-14 days |
| 8 | 10442290 | Ferrari P Clip Bracket With Sheath - 10442290 | $1.42 | Special order, ships in 7-14 days |
| 9 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 10 | 13128970 | Ferrari Collar D.25.5B - 13128970 | $3.26 | Special order, ships in 7-14 days |
| 11 | 916364 | Ferrari Bracket - Secondary Air System Pipe - 916364 | $78.76 | Special order, ships in 7-14 days |
| 11 | 979219 | Ferrari Bracket - Secondary Air System Pipe - 979219 | $91.08 | Special order, ships in 7-14 days |
| 12 | 282849 | Ferrari Pressure Sensor - 282849 | $61.16 | Special order, ships in 7-14 days |
| 13 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
