Ferrari SF90 Stradale — [ENGINE] - B.21 - VENTS (diagram 0026)

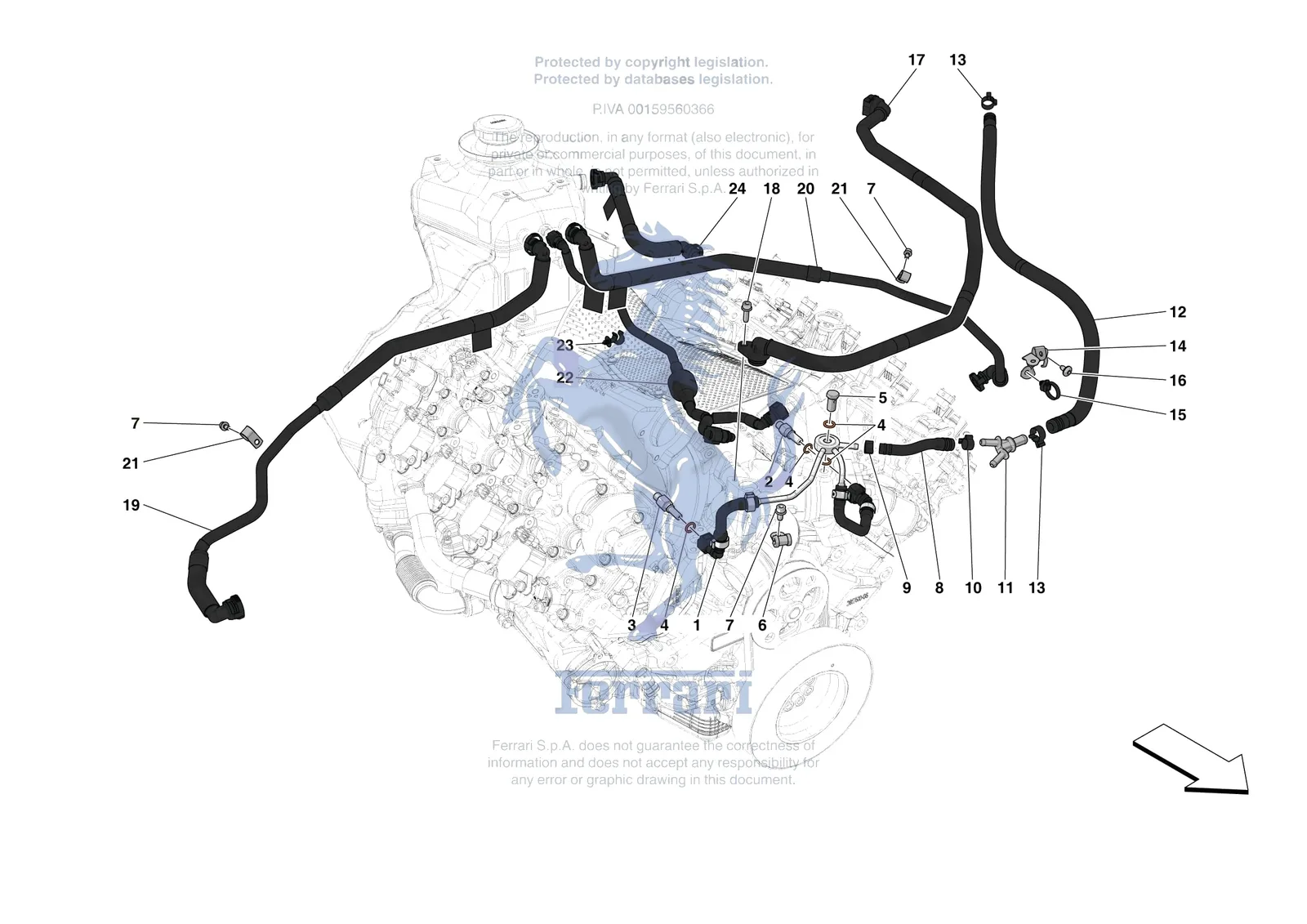

Exploded view of the [engine] - b.21 - vents on the Ferrari SF90 Stradale, with 29 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.21 - VENTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0026.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 228142 | Ferrari Clamp 20.2-22.8x9.2 - 228142 | Superseded | Order 13126070 instead | |
| 1 | 918357 | Ferrari Tubo Sfiato H20 Teste Term C - 918357 | $418.56 | Special order, ships in 7-14 days |
| 2 | 816224 | Ferrari Threaded Connector - 816224 | $61.52 | Special order, ships in 7-14 days |
| 3 | 876117 | Ferrari Threaded Connector - 876117 | $49.22 | Special order, ships in 7-14 days |
| 4 | 10260960 | Ferrari Washer - 10260960 | $0.34 | Available, ships in 3-6 days |
| 5 | 11903811 | Ferrari Banjo Bolt M10 x 1.25 - 11903811 | $8.05 | Special order, ships in 7-14 days |
| 6 | 10441090 | Ferrari Staffetta Con Guaina X 1 Tub - 10441090 | $6.11 | Special order, ships in 7-14 days |
| 7 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 8 | 905300 | Ferrari Tubo Sfiato Teste - 905300 | $49.22 | Special order, ships in 7-14 days |
| 9 | 13126970 | Ferrari Collar - 13126970 | $3.03 | Available, ships in 3-6 days |
| 10 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 11 | 921012 | Ferrari 3 Vie 8 8 11 Plastica X Gomm - 921012 | $16.96 | Special order, ships in 7-14 days |
| 12 | 909556 | Ferrari Tubo Sfiati Acqua Da 3Vie A - 909556 | $115.69 | Special order, ships in 7-14 days |
| 13 | 13126070 | Ferrari Collar - 13126070 | $1.99 | Available, ships in 3-6 days |
| 13 | 13127070 | Ferrari Collar - 13127070 | Superseded | Order 13126070 instead |
| 14 | 916363 | Ferrari Head Breather Bracket - 916363 | $59.07 | Special order, ships in 7-14 days |
| 15 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 16 | 46401657 | Ferrari Screw TBEI M6 x 12 Torx - 46401657 | $1.04 | Available, ships in 3-6 days |
| 17 | 866672 | Ferrari Tubo Acqua Da Nourice A Moto - 866672 | $224.04 | Special order, ships in 7-14 days |
| 18 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 19 | 864924 | Ferrari RH Blow By Pipe - USA - 864924 | $861.77 | Special order, ships in 7-14 days |
| 19 | 871856 | Ferrari Tubo Blow By Eu Dx - 871856 | $492.43 | Special order, ships in 7-14 days |
| 20 | 864923 | Ferrari LH Blow By Pipe - USA - 864923 | $886.38 | Special order, ships in 7-14 days |
| 20 | 871854 | Ferrari Tubo Blow By Eu Sx - 871854 | $492.43 | Special order, ships in 7-14 days |
| 21 | 10418601 | Ferrari Clamp 14mm - 10418601 | $1.86 | Available, ships in 3-6 days |
| 22 | 923578 | Ferrari Tubo Blow By Polmoni - 923578 | $467.80 | Special order, ships in 7-14 days |
| 23 | 852153 | Ferrari Clip - 852153 | $3.70 | Special order, ships in 7-14 days |
| 24 | 919276 | Ferrari Engine Cover Blow-By Pipe - 919276 | $467.80 | Special order, ships in 7-14 days |
| 24 | 905464 | Ferrari Tubo Blow By Coperchio Mot - 905464 | $194.48 | Special order, ships in 7-14 days |
