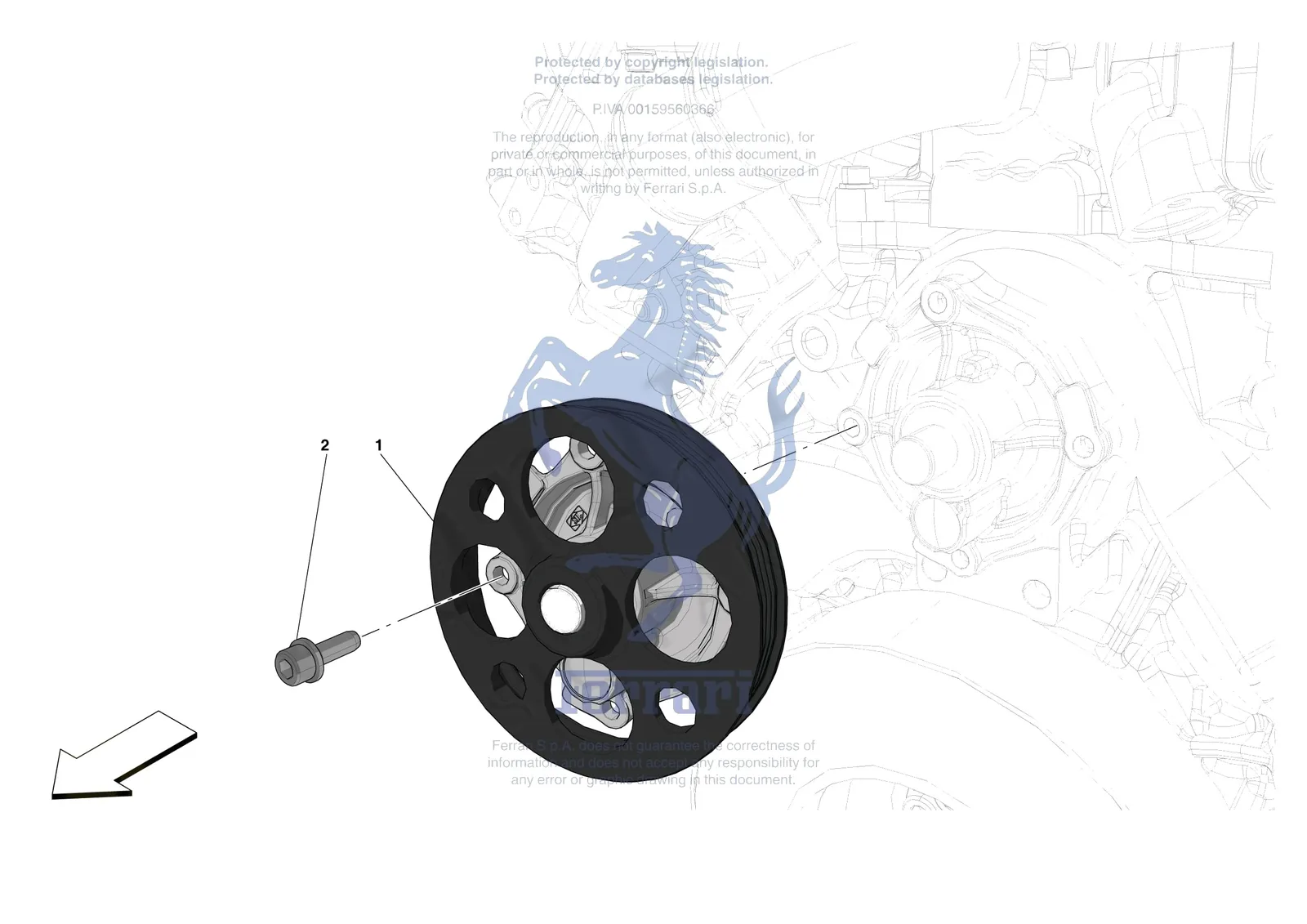

Ferrari SF90 Stradale — [ENGINE] - B.24 - ENGINE COOLING SYSTEM PUMP (diagram 0029)
Exploded view of the [engine] - b.24 - engine cooling system pump on the Ferrari SF90 Stradale, with 4 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ENGINE] - B.24 - ENGINE COOLING SYSTEM PUMP exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0029.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 918320 | Ferrari Complete Water Pump - 918320 | $714.03 | Special order, ships in 7-14 days |
| 1 | 789412 | Ferrari Pompa Acqua Completa - 789412 | Superseded | Order 918320 instead |
| 2 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
