Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES (diagram 0049)

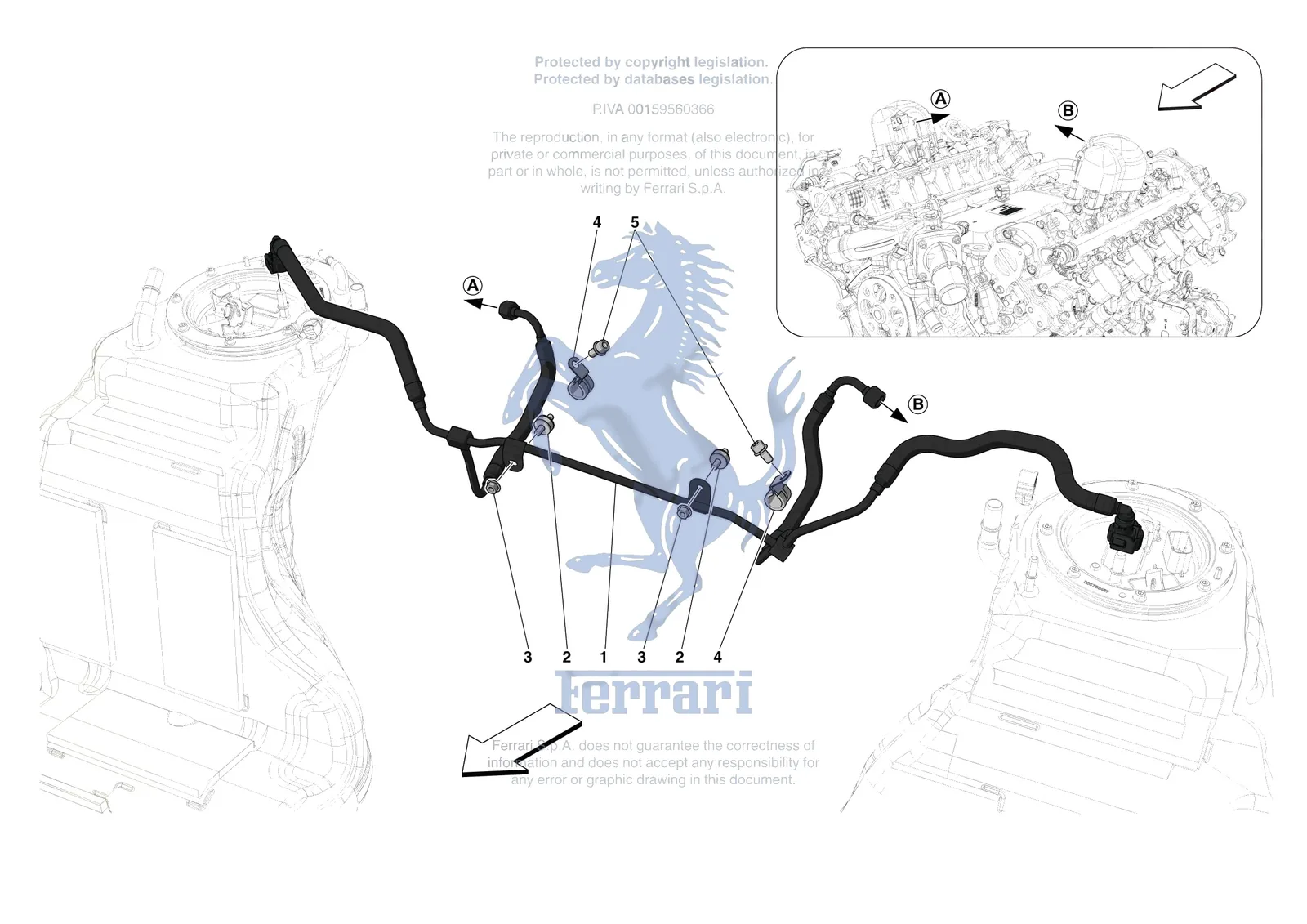

Exploded view of the [mechanical system] - d.02 - engine fuel delivery pipes on the Ferrari SF90 Stradale, with 7 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.02 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 916451 | Ferrari Tubo Mandata Benzina Tipo Ad - 916451 | Superseded | Order 966296 instead |
| 1 | 966296 | Ferrari Tubo Mandata Benzina Tipo Ad - 966296 | $1,403.46 | Special order, ships in 7-14 days |
| 2 | 225408 | Ferrari Cylindrical Bushing - 225408 | $12.99 | Special order, ships in 7-14 days |
| 3 | 14040614 | Ferrari Flanged Nut 6mm - 14040614 | $0.27 | Available, ships in 3-6 days |
| 4 | 773413 | Ferrari Staffetta Con Guaina X 1 Tub - 773413 | $71.38 | Special order, ships in 7-14 days |
| 4 | 856755 | Ferrari Staffetta Con Guaina X 1 Tub - 856755 | Superseded | Order 773413 instead |
| 5 | 231627 | Ferrari Screw M8 x 16 - 231627 | $1.25 | Available, ships in 3-6 days |
