Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL (diagram 0050)

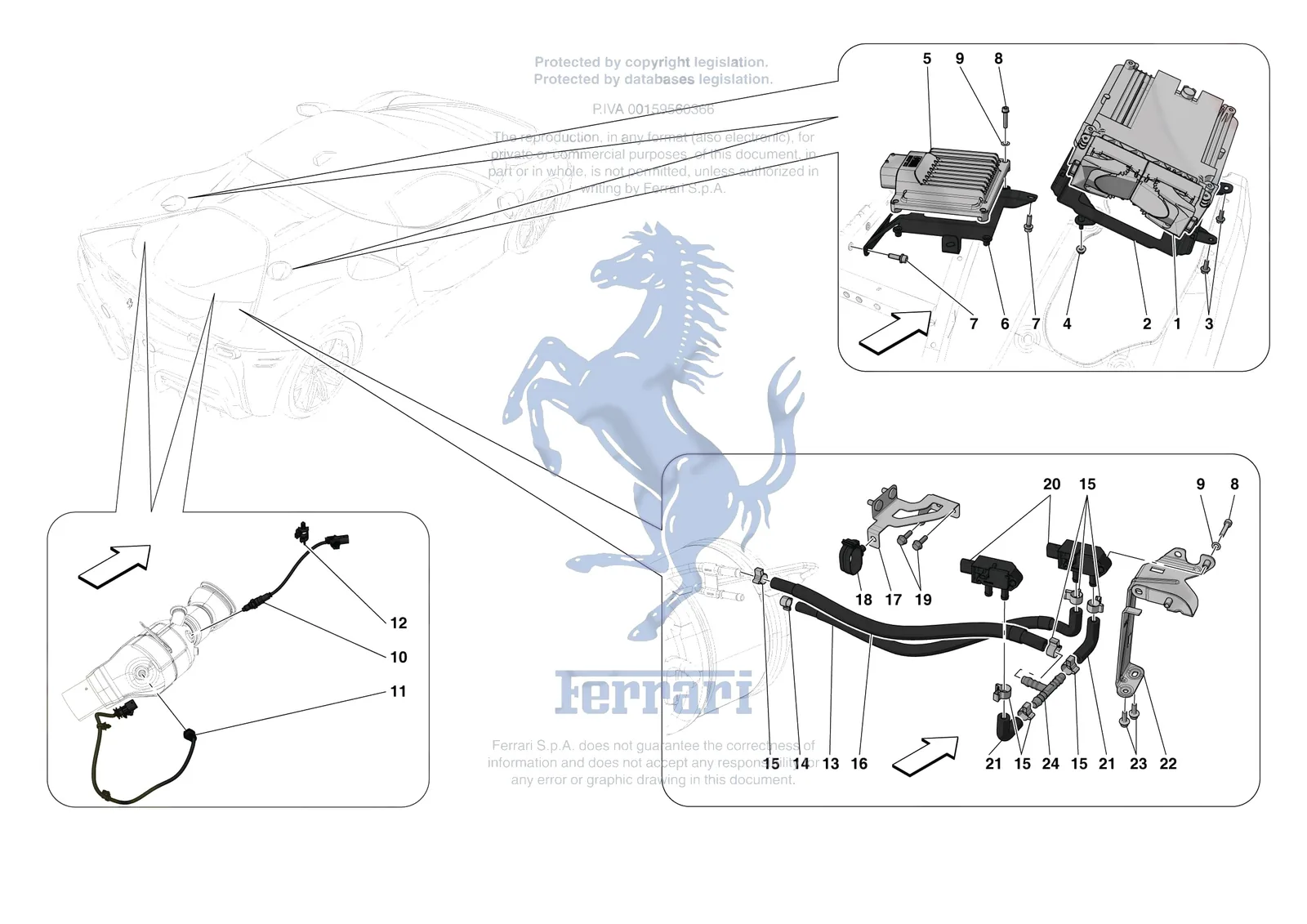

Exploded view of the [mechanical system] - d.03 - engine injection control on the Ferrari SF90 Stradale, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.03 - ENGINE INJECTION CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0050.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 782371 | Ferrari Ionising Knock Sensor Contro - 782371 | Superseded | Order 952897 instead | |
| 824402 | Ferrari RH Pressure Sensor Bracket - 824402 | Superseded | Order 938610 instead | |
| 12601174 | Ferrari Wavy Washer 5mm - 12601174 | $0.12 | Available, ships in 3-6 days | |
| 1 | 861912 | Ferrari Centralina Accensione Med17. - 861912 | $2,552.45 | Special order, ships in 7-14 days |
| 2 | 925708 | Ferrari LH Ignition ECU Bracket - 925708 | $177.25 | Special order, ships in 7-14 days |
| 2 | 826750 | Ferrari RH Ignition ECU Bracket - 826750 | $169.87 | Special order, ships in 7-14 days |
| 3 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 4 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 5 | 749477 | Ferrari ECU Ion Fornitura Cpl Eisb 1 - 749477 | Superseded | Order 952897 instead |
| 5 | 771583 | Ferrari Ionising Knock Sensor Contro - 771583 | Superseded | Order 952897 instead |
| 5 | 952897 | Ferrari Ionising Knock Sensor Control - 952897 | $2,400.25 | Special order, ships in 7-14 days |
| 6 | 934786 | Ferrari Ionising ECU Bracket - 934786 | $140.32 | Special order, ships in 7-14 days |
| 7 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 8 | 14304424 | Ferrari Screw - 14304424 | $0.38 | Available, ships in 3-6 days |
| 9 | 12604174 | Ferrari Washer - 12604174 | $0.06 | Available, ships in 3-6 days |
| 10 | 866218 | Ferrari Front Lambda/Oxygen Sensor - 866218 | $284.11 | Available, ships in 3-6 days |
| 11 | 866219 | Ferrari Rear Lambda/Oxygen Sensor - 866219 | $205.72 | Available, ships in 3-6 days |
| 12 | 84093700 | Ferrari Clip - 84093700 | $2.82 | Special order, ships in 7-14 days |
| 13 | 925475 | Ferrari Tubogom.Sil. D.5-12X378-90 I - 925475 | $108.31 | Special order, ships in 7-14 days |
| 14 | 13125270 | Ferrari Collare A Nastro Fiss.Manic. - 13125270 | $3.68 | Special order, ships in 7-14 days |
| 15 | 13125470 | Ferrari Collar - 13125470 | Superseded | Order 13126970 instead |
| 16 | 925474 | Ferrari Tubo Gomma Sil. D.7-14X370 I - 925474 | $110.78 | Special order, ships in 7-14 days |
| 17 | 923782 | Ferrari Lift System Oil Tank Mountin - 923782 | $46.75 | Special order, ships in 7-14 days |
| 18 | 149773 | Ferrari Clip - 149773 | $0.90 | Available, ships in 3-6 days |
| 19 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 20 | 340691 | Ferrari Pressure Sensor - 340691 | $196.67 | Special order, ships in 7-14 days |
| 21 | 769841 | Ferrari Tubo Gomma Sil.D.7-14X34 90G - 769841 | $56.60 | Special order, ships in 7-14 days |
| 22 | 824403 | Ferrari LH Pressure Sensor Bracket - 824403 | $66.45 | Special order, ships in 7-14 days |
| 22 | 938610 | Ferrari RH Pressure Sensor Bracket - 938610 | $64.00 | Special order, ships in 7-14 days |
| 23 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 24 | 340699 | Ferrari T Union - 340699 | Superseded | Order 913829 instead |
| 24 | 913829 | Ferrari Three Way - 913829 | $10.06 | Special order, ships in 7-14 days |
