Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER (diagram 0052)

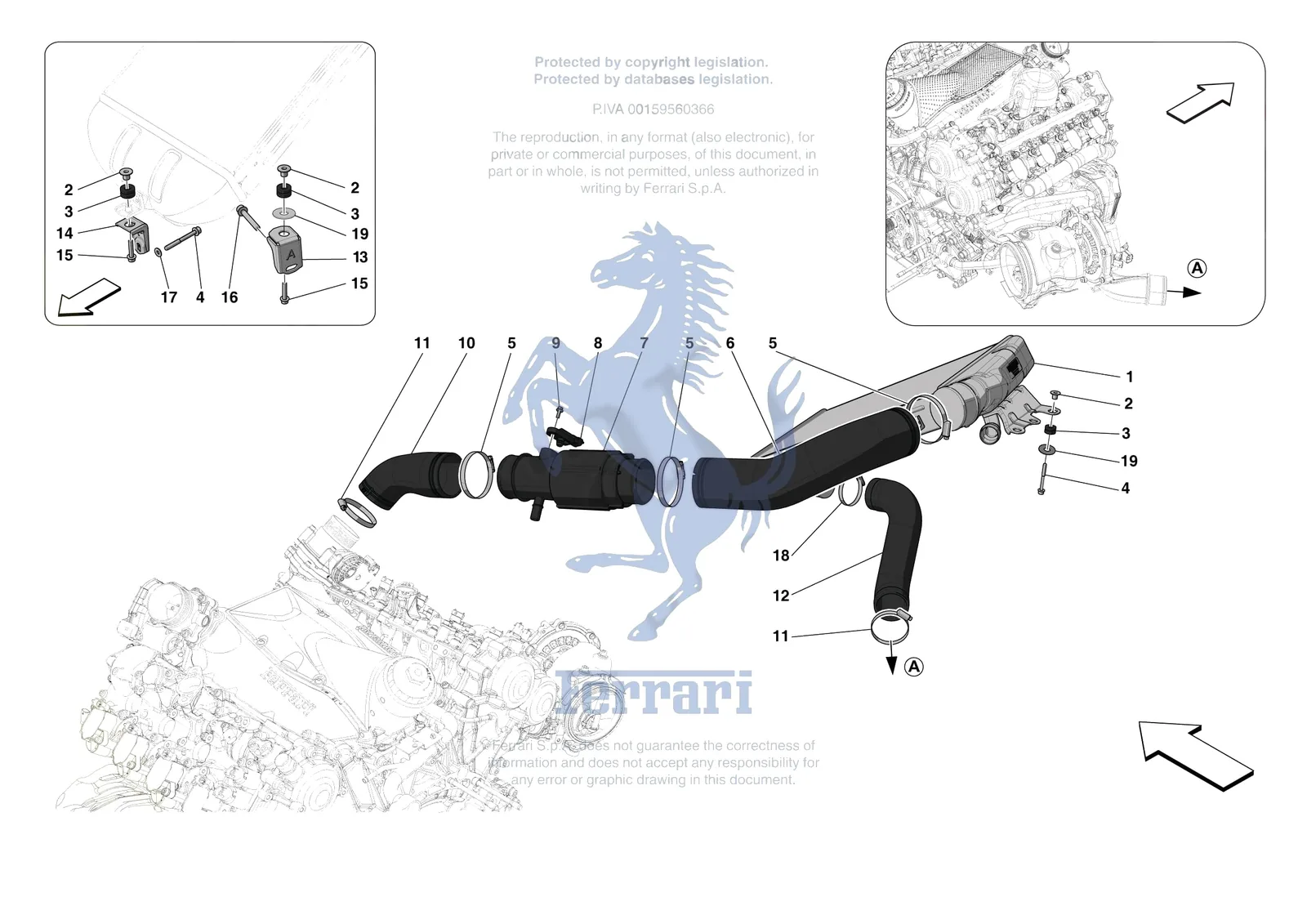

Exploded view of the [mechanical system] - d.04.02 - intercooler on the Ferrari SF90 Stradale, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.04.02 - INTERCOOLER exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0052.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14306824 | Ferrari Bolt M8 x 45 TCEI - 14306824 | $1.04 | Available, ships in 3-6 days | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 925696 | Ferrari Intercooler Sx - 925696 | $3,531.56 | Special order, ships in 7-14 days |
| 1 | 967491 | Ferrari RH Intercooler - 967491 | $3,259.54 | Special order, ships in 7-14 days |
| 2 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 3 | 812273 | Ferrari Cable Grommet D. 9 x 25 - 812273 | $3.47 | Special order, ships in 7-14 days |
| 3 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 4 | 255494 | Ferrari Screw - 255494 | $18.76 | Available, ships in 3-6 days |
| 5 | 296786 | Ferrari Hose Clamp 70 to 90mm - 296786 | $28.42 | Special order, ships in 7-14 days |
| 6 | 963027 | Ferrari Manicotto Uscita Ic Dx - 963027 | $199.41 | Special order, ships in 7-14 days |
| 6 | 963028 | Ferrari Manicotto Uscita Ic Sx - 963028 | $204.34 | Special order, ships in 7-14 days |
| 7 | 904316 | Ferrari Tubo Ap Risuonatore Dx - 904316 | $295.43 | Special order, ships in 7-14 days |
| 7 | 904317 | Ferrari Tubo Ap Risuonatore Sx - 904317 | $295.43 | Special order, ships in 7-14 days |
| 8 | 283538 | Ferrari Intake Pressure Sensor - 283538 | $61.16 | Special order, ships in 7-14 days |
| 9 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 10 | 968824 | Ferrari Manicotto Su Corpo Farfal D5 - 968824 | $211.73 | Special order, ships in 7-14 days |
| 10 | 968825 | Ferrari Manicotto Su Corpo Farfal D5 - 968825 | $211.73 | Special order, ships in 7-14 days |
| 11 | 296785 | Ferrari Hose Clamp 60 to 80mm - 296785 | $24.05 | Available, ships in 3-6 days |
| 12 | 951971 | Ferrari Manicotto Tc-Ic Dx - 951971 | $886.38 | Special order, ships in 7-14 days |
| 12 | 951972 | Ferrari Manicotto Tc-Ic Sx - 951972 | $861.77 | Special order, ships in 7-14 days |
| 13 | 861313 | Ferrari Front Support Bracket -Intercooler - 861313 | $27.06 | Special order, ships in 7-14 days |
| 14 | 861315 | Ferrari Rear Support Bracket - Intercooler - 861315 | $18.44 | Special order, ships in 7-14 days |
| 15 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 16 | 285494 | Ferrari Screw 8x50 - 285494 | $1.99 | Available, ships in 3-6 days |
| 17 | 276781 | Ferrari Washer - 276781 | $0.79 | Special order, ships in 7-14 days |
| 18 | 859764 | Ferrari Screw Collar D.55-75 x 9 - 859764 | $8.72 | Special order, ships in 7-14 days |
| 19 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
