Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION (diagram 0056)

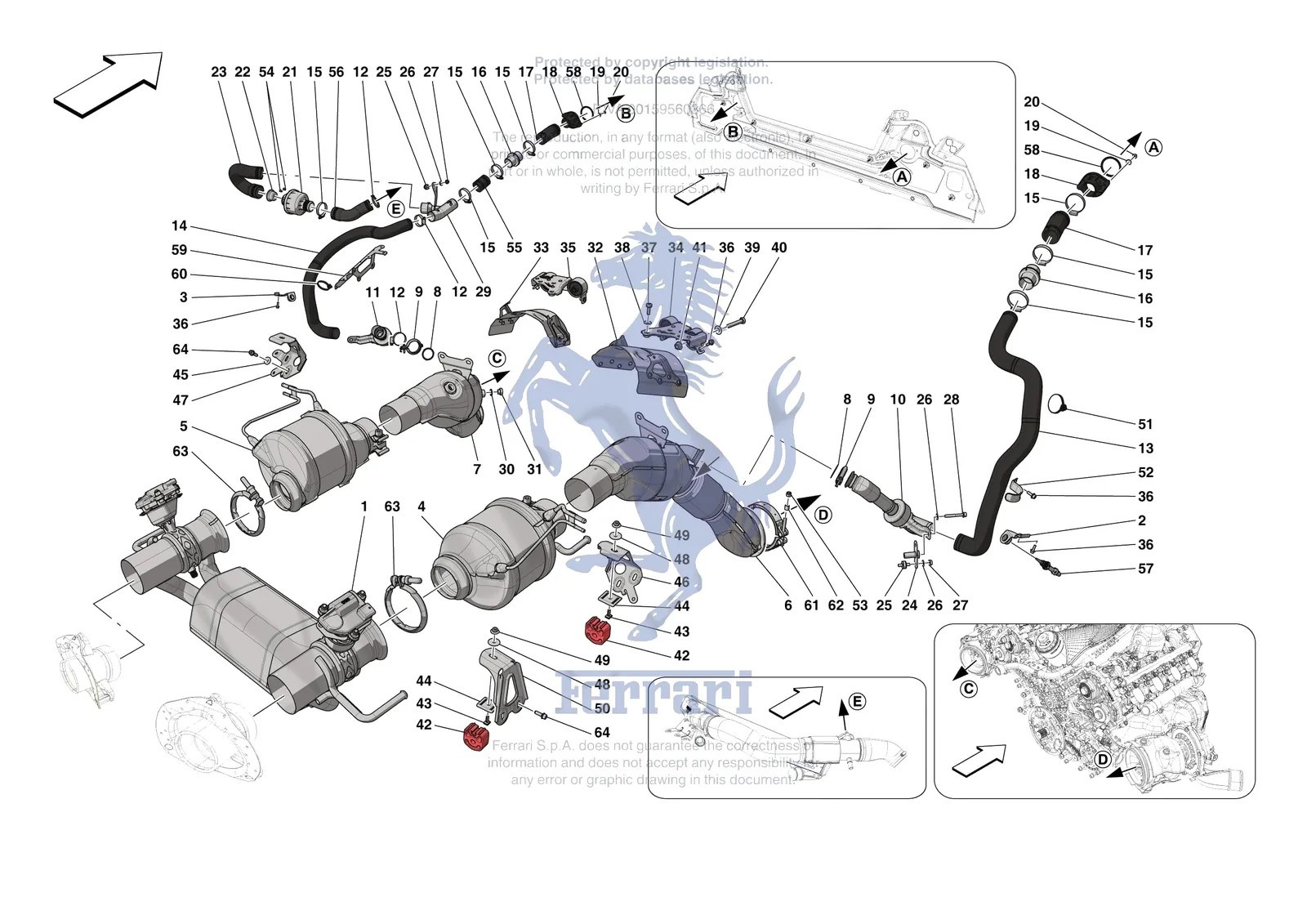

Exploded view of the [mechanical system] - d.08.01 - exhaust system - front section on the Ferrari SF90 Stradale, with 75 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.08.01 - EXHAUST SYSTEM - FRONT SECTION exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
1938141Ferrari Muffler F173 Assy - 938141SupersededOrder 958639 instead
1958639Ferrari Muffler F173 Assy - 958639$6,726.51Special order, ships in 7-14 days
1938340Ferrari Muffler Light Titanium F173 - 938340SupersededOrder 958641 instead
1958641Ferrari Muffler Light Titanium F173 - 958641$18,562.56Contact us to order
2895925Ferrari Supporto Sens Temp Sg Dx - 895925$91.08Special order, ships in 7-14 days
3895926Ferrari Supporto Sens Temp Sg Sx - 895926$86.15Special order, ships in 7-14 days
4832344Ferrari Compl. RH Gpf - 832344$37,433.65Contact us to order
4867548Ferrari RH Complete GPF - 867548$16,039.87Contact us to order
5832347Ferrari Compl. LH Gpf - 832347$37,433.65Contact us to order
5867549Ferrari Gpf Cpl Sx - 867549$16,039.87Contact us to order
6939966Ferrari Precat F173 RH - 939966$18,213.70Contact us to order
6939970Ferrari Precat Light Inconel F173 RH - 939970$22,849.06Contact us to order
7939968Ferrari Precat F173 LH - 939968$16,928.78Contact us to order
7939972Ferrari Precat Light Inconel F173 LH - 939972$22,827.35Contact us to order
8898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
9855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
10968310Ferrari Tubaz Rig Sg Dx - 968310$1,822.04Special order, ships in 7-14 days
11968311Ferrari Tubaz Rig Sg Sx - 968311$1,822.04Special order, ships in 7-14 days
12296781Ferrari Hose Clamp - 296781$5.59In stock
13949108Ferrari Tubo Spiralato Dx D=38 L=870 - 949108$320.06Special order, ships in 7-14 days
14965519Ferrari Tubo Spiralato Sx D=38 L=870 - 965519$320.06Special order, ships in 7-14 days
15296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
16786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
17939880Ferrari Manicotto Piegato Per Sg - 939880$91.08Special order, ships in 7-14 days
18917223Ferrari Trombetta - 917223$34.44Special order, ships in 7-14 days
1912638170Ferrari WASHER - 12638170Price on requestContact us for price and availability
2014040511Ferrari Nut - Self Locking - 14040511$1.11Special order, ships in 7-14 days
21310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
22741450Ferrari Reducer for Resonator - Spider - 741450$16.46Special order, ships in 7-14 days
22904595Ferrari Riduttore Per Risuonatore - 904595$10.83Special order, ships in 7-14 days
23917220Ferrari Manicotto A C Per Sg - 917220$125.54Special order, ships in 7-14 days
24842654Ferrari Bracket for Rigid Pipe - 842654$44.29Special order, ships in 7-14 days
25225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
2612644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
2612644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
2714040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
28231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
29939874Ferrari 3-Vie Per Sg - 939874$270.83Special order, ships in 7-14 days
3010298460Ferrari Washer - 10298460$1.10In stock
31110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
32826110Ferrari Riparo Cat Dx - 826110$177.25Special order, ships in 7-14 days
33826111Ferrari Riparo Cat Sx - 826111$177.25Special order, ships in 7-14 days
34981836Ferrari Complete RH Catalytic Converter Bracket - 981836$443.17Special order, ships in 7-14 days
35981838Ferrari Complete LH Catalytic Converter Bracket - 981838$443.17Special order, ships in 7-14 days
36256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
37216565Ferrari Screw 6X20 - 216565$0.92Special order, ships in 7-14 days
3814498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
3912625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
4016044224Ferrari Screw M8 x 50mm TE - 16044224$0.79Available, ships in 3-6 days
4114059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
42239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
43250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
44240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
44799014Ferrari Bush Fastener Plate - 799014SupersededOrder 240598 instead
4512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
46827919Ferrari Bracket for RH Gas Particulate Filter - 827919$68.92Special order, ships in 7-14 days
47919089Ferrari Bracket for LH Gas Particulate Filter - 919089$91.08Special order, ships in 7-14 days
4812648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
4914039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
50917049Ferrari Exhaust Bracket - Front Section - 917049$78.76Special order, ships in 7-14 days
51217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
52880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
53292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
54314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
55917218Ferrari Manicotto Dritto Per Sg - 917218$68.92Special order, ships in 7-14 days
56917221Ferrari Manicotto Ad S Alta Press Pe - 917221$93.53Special order, ships in 7-14 days
57890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days
58901095Ferrari Gasket - 901095$8.72Special order, ships in 7-14 days
59939195Ferrari Wiring Harness Bracket - 939195$88.61Special order, ships in 7-14 days
61290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
62292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
63806375Ferrari V-Clamp - 806375$94.09Special order, ships in 7-14 days
64231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
