Ferrari SF90 Stradale — [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN (diagram 0084)

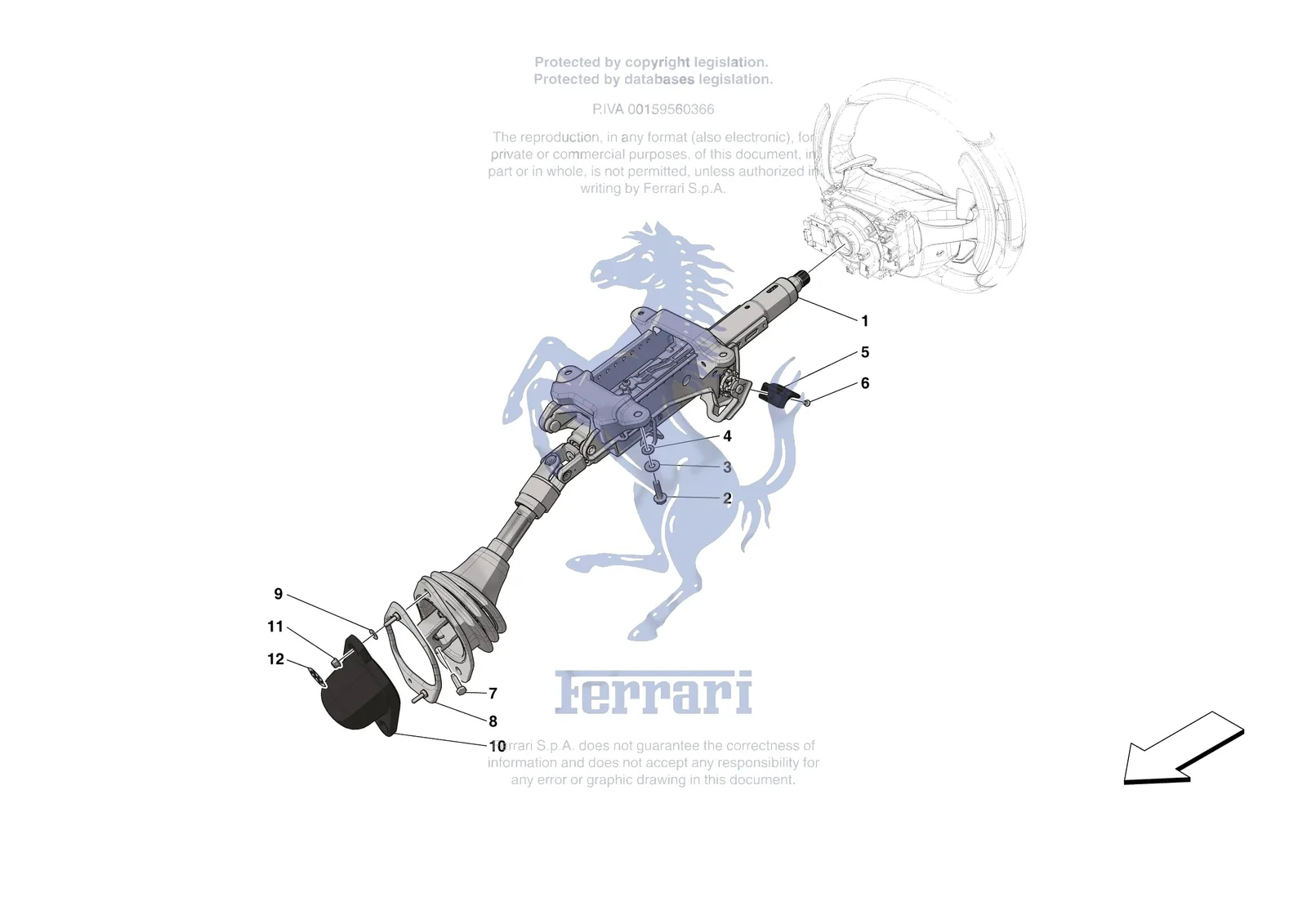

Exploded view of the [mechanical system] - d.30.01 - steering wheel and steering system - steering column on the Ferrari SF90 Stradale, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [MECHANICAL SYSTEM] - D.30.01 - STEERING WHEEL AND STEERING SYSTEM - STEERING COLUMN exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0084.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187006 | Ferrari Screw - 187006 | $1.36 | Special order, ships in 7-14 days | |
| 1 | 809339 | Ferrari Piantone Guida F173 Cpl Elet - 809339 | $4,532.88 | Special order, ships in 7-14 days |
| 1 | 809340 | Ferrari Piantone Guida F173 Cpl Manu - 809340 | $3,022.69 | Special order, ships in 7-14 days |
| 2 | 16287321 | Ferrari Screw - 16287321 | $0.40 | Available, ships in 3-6 days |
| 3 | 12646701 | Ferrari Washer D. 8.45 - 20 x 2 - 12646701 | $0.17 | Available, ships in 3-6 days |
| 4 | 11194074 | Ferrari Washer 8.6-16x1.9 - 11194074 | $0.08 | Available, ships in 3-6 days |
| 5 | 313964 | Ferrari Adjustable Steering Wheel Lock Lever - 313964 | $17.42 | Special order, ships in 7-14 days |
| 6 | 13273977 | Ferrari Screw - 13273977 | $0.52 | Available, ships in 3-6 days |
| 7 | 245173 | Ferrari Screw M8 - 245173 | $1.63 | Special order, ships in 7-14 days |
| 8 | 867658 | Ferrari Inner U-Joint Shaft Gaiter Fastener Plate - 867658 | $103.25 | Special order, ships in 7-14 days |
| 8 | 793058 | Ferrari Piastra Fiss. Cuffia Int. Ca - 793058 | $39.31 | Special order, ships in 7-14 days |
| 9 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 10 | 883097 | Ferrari Outer U-Joint Shaft Gaiter - 883097 | $68.83 | Special order, ships in 7-14 days |
| 10 | 883098 | Ferrari Outer U-Joint Shaft Gaiter - 883098 | $95.87 | Special order, ships in 7-14 days |
| 11 | 14058319 | Ferrari Flange Nut M5 x 5 - 14058319 | $0.65 | Available, ships in 3-6 days |
| 12 | 67315400 | Ferrari Washer - 67315400 | $0.82 | Special order, ships in 7-14 days |
