Ferrari SF90 Stradale — [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE (diagram 0096)

Exploded view of the [vehicle trim] - e.01.02 - structures and elements centre of vehicle on the Ferrari SF90 Stradale, with 56 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

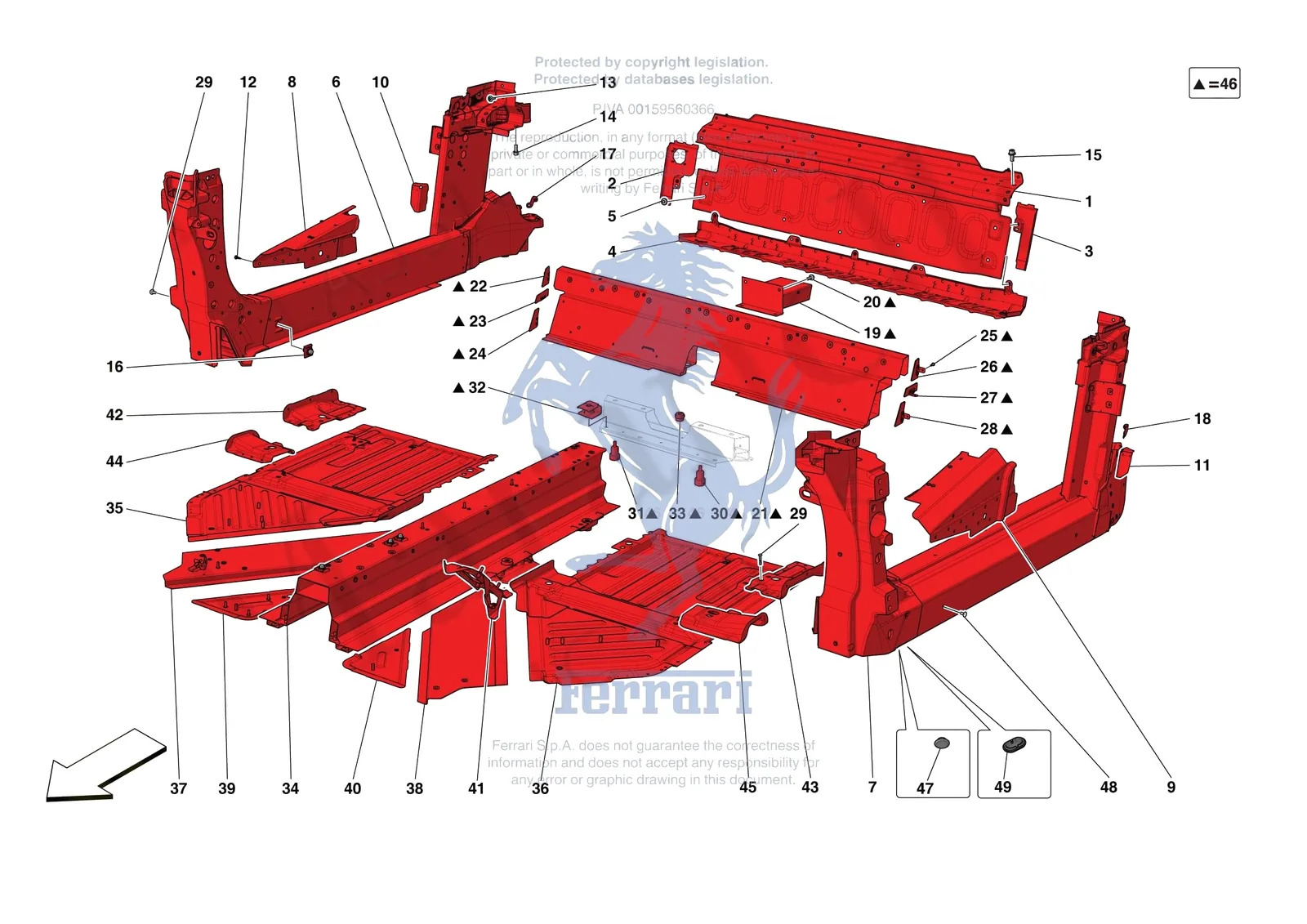

Ferrari SF90 Stradale [VEHICLE TRIM] - E.01.02 - STRUCTURES AND ELEMENTS CENTRE OF VEHICLE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1741156Ferrari Firewall Assembly - 741156$22,779.56Contact us to order
1864637Ferrari Firewall Assembly - 864637SupersededOrder 741156 instead
2985864948Ferrari Lamiera Interfac.Mont.B Dx C - 985864948$911.01Special order, ships in 7-14 days
3985864929Ferrari Lamiera Interfac.Mont. B Sx - 985864929$837.14Special order, ships in 7-14 days
4985864926Ferrari Parafiamma Posteriore Inf. C - 985864926$2,682.68Special order, ships in 7-14 days
5968262Ferrari Hex Head Screw M5X14+Col+R.I.D6X25. - 968262$39.37Special order, ships in 7-14 days
6985829476Ferrari RH Centre Sidewall - 985829476$21,751.91Contact us to order
7985829477Ferrari LH Centre Sidewall - 985829477$21,751.91Contact us to order
8985925987Ferrari Controvent. Mont.B Dx Cpl F1 - 985925987$1,034.12Special order, ships in 7-14 days
9985864735Ferrari Controvent. Mont.B Sx Cpl F1 - 985864735$1,034.12Special order, ships in 7-14 days
10813655Ferrari LH Corner Bracket Fastening to Chassis - 813655$56.60Special order, ships in 7-14 days
11813654Ferrari RH Corner Bracket Fastening to Chassis - 813654$56.60Special order, ships in 7-14 days
12330777Ferrari Ejoform Fds M5X25 - 330777$8.72Special order, ships in 7-14 days
13880041Ferrari Allen Head Bolt M6X26+R.Imp.D6X20X - 880041$11.58Special order, ships in 7-14 days
14985569Ferrari Allen Head Bolt M10X28+Col+R.Imp.D - 985569$12.02Special order, ships in 7-14 days
15985568Ferrari Vite Tcti M10X1.5X25+Co+R.Im - 985568$14.22Special order, ships in 7-14 days
16252821Ferrari Compl. Ground - 252821$61.45Special order, ships in 7-14 days
17865404Ferrari Compl. RH Tank Heat Shield Bracket - 865404$86.15Special order, ships in 7-14 days
18865401Ferrari Compl. LH Tank Heat Shield Bracket - 865401$86.15Special order, ships in 7-14 days
19985873224Ferrari Respingente Motore Cs F173 C - 985873224$1,403.46Special order, ships in 7-14 days
2016287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
21985876107Ferrari Traversa Post Pavimen. Cpl F - 985876107$7,210.90Special order, ships in 7-14 days
22884858Ferrari Setto Termoesp.Dx Sup.Trav.P - 884858$295.43Special order, ships in 7-14 days
23884857Ferrari Setto Termoe.Dx Centr.Trav.P - 884857$295.43Special order, ships in 7-14 days
24884856Ferrari Lower RH Part of Rear Cross Member - 884856$344.69Special order, ships in 7-14 days
2514639591Ferrari Rivet - 14639591$3.03Available, ships in 3-6 days
26884855Ferrari Setto Termoesp.Sx Sup.Trav.P - 884855$295.43Special order, ships in 7-14 days
27884854Ferrari Setto Termoe.Sx Centr.Trav.P - 884854$295.43Special order, ships in 7-14 days
28884853Ferrari Lower LH Part of Rear Cross Member - 884853$295.43Special order, ships in 7-14 days
29204430Ferrari Rivet Tt Fi D. 6 4X19 2 - 204430$2.82Available, ships in 3-6 days
30783341Ferrari Compl. Inner Bush - 783341$344.69Special order, ships in 7-14 days
31783343Ferrari Complete Outer Bush - 783343$344.69Special order, ships in 7-14 days
32783364Ferrari Compl. Lower Subframe Bracket - 783364$344.69Special order, ships in 7-14 days
33785460Ferrari Complete Lower Bush - 785460$344.69Special order, ships in 7-14 days
34955013276Ferrari Centre Tunnel - 955013276$6,263.50Special order, ships in 7-14 days
34985788492Ferrari Centre Tunnel Console - 985788492$5,808.58Special order, ships in 7-14 days
34985855212Ferrari Centre Tunnel Console - 985855212SupersededOrder 985788492 instead
35985918789Ferrari Pavimento Dx Cs F173 Cataf - 985918789$5,468.54Special order, ships in 7-14 days
36985918786Ferrari Pavimento Sx Cs F173 Cataf - 985918786$5,468.54Special order, ships in 7-14 days
37985878852Ferrari Estruso Rinf.Torque Box Dx C - 985878852$2,040.14Special order, ships in 7-14 days
37985895610Ferrari RH Torque Box Reinforcement - 985895610$1,329.59Special order, ships in 7-14 days
38985873788Ferrari LH Torque Box Reinforcement - 985873788$1,206.48Special order, ships in 7-14 days
38985891075Ferrari LH Torque Box Reinforcement - 985891075$1,501.96Special order, ships in 7-14 days
39985849008Ferrari Chiusura Pianale Ant Dx Cpl - 985849008$714.03Special order, ships in 7-14 days
39985893584Ferrari Compl. Front RH Floor Endpie - 985893584$689.41Special order, ships in 7-14 days
40985864721Ferrari Chiu.Pianale Anteriore Sx Cp - 985864721$615.54Special order, ships in 7-14 days
40985893582Ferrari Compl. Front LH Floor Endpie - 985893582$443.17Special order, ships in 7-14 days
41985866360Ferrari Compl. Accelerator Pedal Bra - 985866360$517.04Special order, ships in 7-14 days
42985771121Ferrari Rinforzo Att Sedile Est Post - 985771121$787.90Special order, ships in 7-14 days
43985771120Ferrari Rinforzo Att Sedile Est Post - 985771120$787.90Special order, ships in 7-14 days
44985864733Ferrari Rinforzo Att Sedile Est Ant - 985864733$738.64Special order, ships in 7-14 days
45985864732Ferrari Rinforzo Att Sedile Est Ant - 985864732$738.64Special order, ships in 7-14 days
46985873225Ferrari Traversa Post Pavimen. Cpl F - 985873225$8,362.29Special order, ships in 7-14 days
4782299600Ferrari Plug For Front Master Point - 82299600$5.00Available, ships in 3-6 days
4814639791Ferrari Rivet D. 6.4X 14.1 - 14639791$2.59Special order, ships in 7-14 days
4982882400Ferrari Cap For Slot - 82882400$7.19Special order, ships in 7-14 days

All SF90 Stradale diagrams
