Ferrari SF90 Stradale — [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL (diagram 0098)

Exploded view of the [vehicle trim] - e.02 - lateral outer bodyshell on the Ferrari SF90 Stradale, with 54 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

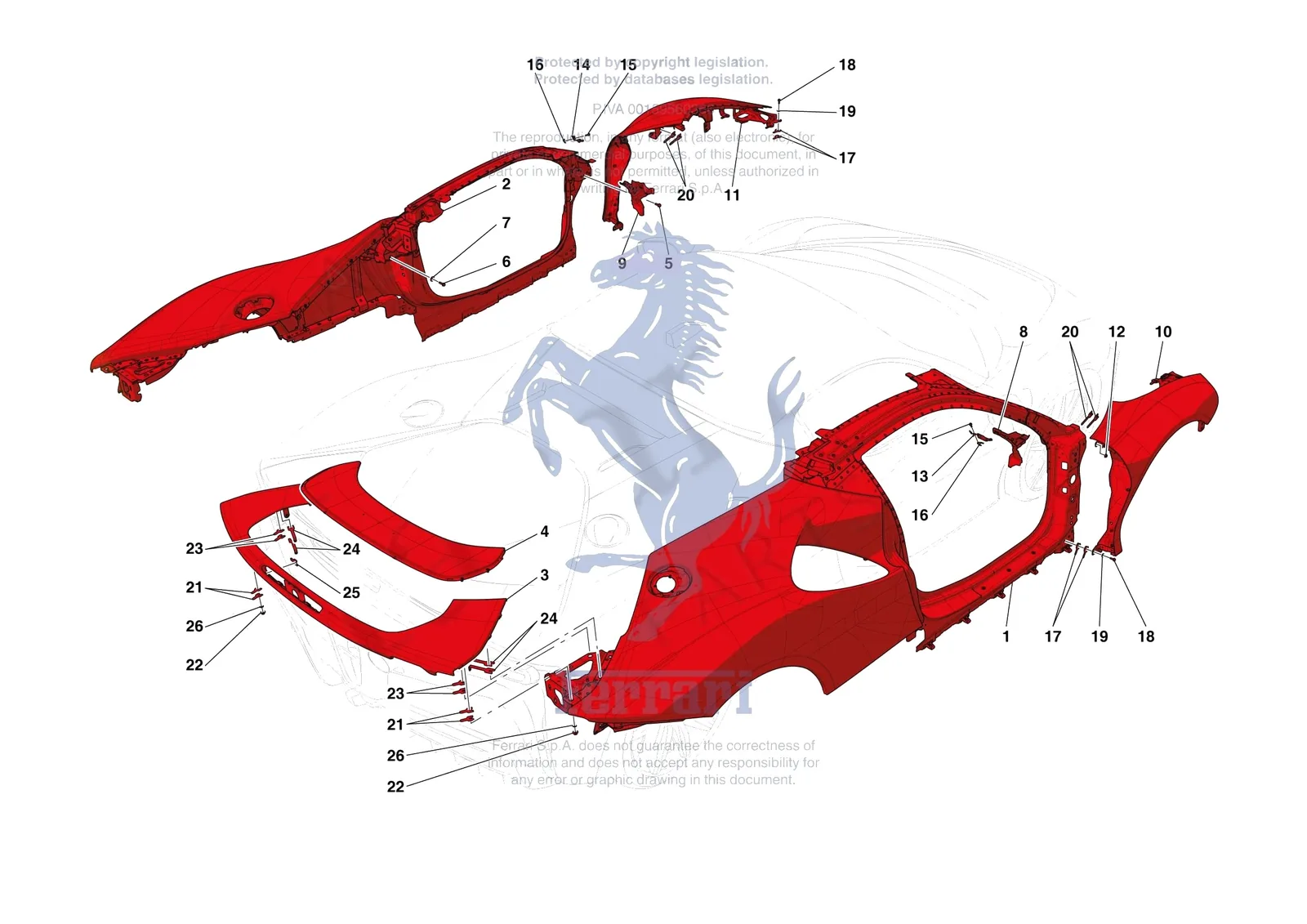

Ferrari SF90 Stradale [VEHICLE TRIM] - E.02 - LATERAL OUTER BODYSHELL exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
80415900Ferrari Screw - 80415900$32.60Available, ships in 3-6 days
12640606Ferrari Washer - 12640606SupersededOrder 12640678 instead
12640608Ferrari Washer - 12640608SupersededOrder 12640678 instead
12640677Ferrari Washer - 12640677SupersededOrder 12640678 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985830884Ferrari Fiancata Dx. Primer - 985830884$38,200.56Contact us to order
2985830830Ferrari Fiancata Sx. Primer - 985830830$38,189.71Contact us to order
370006946Ferrari Rear Spoiler - 70006946$41,698.44Contact us to order
3813813Ferrari Rear Spoiler - 813813SupersededOrder 898537 instead
3898537Ferrari Rear Spoiler - 898537$14,335.04Contact us to order
3867444Ferrari Spoiler Fisso Opt Carb. Cpl - 867444SupersededOrder 898537 instead
3985830960Ferrari Spoiler Posteriore Primer - 985830960$9,600.46Special order, ships in 7-14 days
4898531Ferrari Spoiler Mobile Opt Carb Cpl - 898531$17,636.82Contact us to order
4953882Ferrari Spoiler Mobile Opt Carb Cpl - 953882SupersededOrder 898531 instead
4985830813Ferrari Spoiler Mobile Primer - 985830813$5,796.86Special order, ships in 7-14 days
470006947Ferrari Variable Geom. Spoiler - 70006947$41,698.44Contact us to order
516287221Ferrari Screw - 16287221$0.59Available, ships in 3-6 days
516287224Ferrari Screw M8x25 - 16287224$0.82Available, ships in 3-6 days
616286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
712647724Ferrari Washer - 12647724$0.31Available, ships in 3-6 days
8985830981Ferrari Rinforzo Nodo H Int Dx Cpl C - 985830981$443.17Special order, ships in 7-14 days
9985830977Ferrari Rinforzo Nodo H Int Sx Cpl C - 985830977$443.17Special order, ships in 7-14 days
10985865290Ferrari Compl. RH Front Fender - Version with Shields - 985865290$9,373.78Contact us to order
10985830985Ferrari Parafango Ant. Dx Cpl Primer - 985830985$9,184.10Special order, ships in 7-14 days
11985865292Ferrari Parafango Ant Sx Cpl Scudett - 985865292$9,373.78Special order, ships in 7-14 days
11985830940Ferrari Parafango Ant. Sx Cpl Primer - 985830940$9,184.10Special order, ships in 7-14 days
1213046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
13875139Ferrari RH A Pillar Cover Fastener B - 875139$34.44Special order, ships in 7-14 days
14875138Ferrari LH A Pillar Cover Fastener B - 875138$34.44Special order, ships in 7-14 days
1516285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
16852261Ferrari Adjustment Spacer 1Mm - 852261SupersededOrder 788178 instead
16788178Ferrari Spessore Di Regolaz.Sp.1Mm - 788178$13.11Special order, ships in 7-14 days
1788187400Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400$8.82Special order, ships in 7-14 days
1788187600Ferrari Spessore Di Regolaz.Ant. Sp. - 88187600$8.82Special order, ships in 7-14 days
1816286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1912643724Ferrari/Maserati Washer - 12643724$0.20In stock
2086847700Ferrari Fork Adjuster Shim 0.5mm - 86847700Price on requestContact us for price and availability
2086847600Ferrari Fork Adjuster Shim 1.0mm - 86847600$9.81Special order, ships in 7-14 days
2187583800Ferrari Adjuster Shim 1.0mm - 87583800$3.68Special order, ships in 7-14 days
21900885Ferrari Adjustment Shim - 900885SupersededOrder 87583800 instead
21900889Ferrari Adjustment Shim - 900889SupersededOrder 87583700 instead
2187583700Ferrari Fork Adjuster Shim - 87583700$3.91Special order, ships in 7-14 days
2214059290Ferrari Flanged Nut M6 - 14059290$2.82Available, ships in 3-6 days
2214039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
22911976Ferrari Wide Flange Hex Nut - 911976$24.02Special order, ships in 7-14 days
23921747Ferrari Spess.Curvo Di Regolaz.A For - 921747SupersededOrder 87583800 instead
23921748Ferrari Spess.Curvo Di Regolaz.A For - 921748$12.29Special order, ships in 7-14 days
24921749Ferrari Spess.Con Piego Di Regol.A F - 921749$15.74Special order, ships in 7-14 days
24921750Ferrari Spess.Con Piego Di Regol.A F - 921750$14.26Special order, ships in 7-14 days
2610523178Ferrari Washer - 10523178$1.97Special order, ships in 7-14 days
2612640678Ferrari Washer 6.15x25x2 - 12640678$3.47Available, ships in 3-6 days
