Ferrari SF90 Stradale — [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE (diagram 0101)

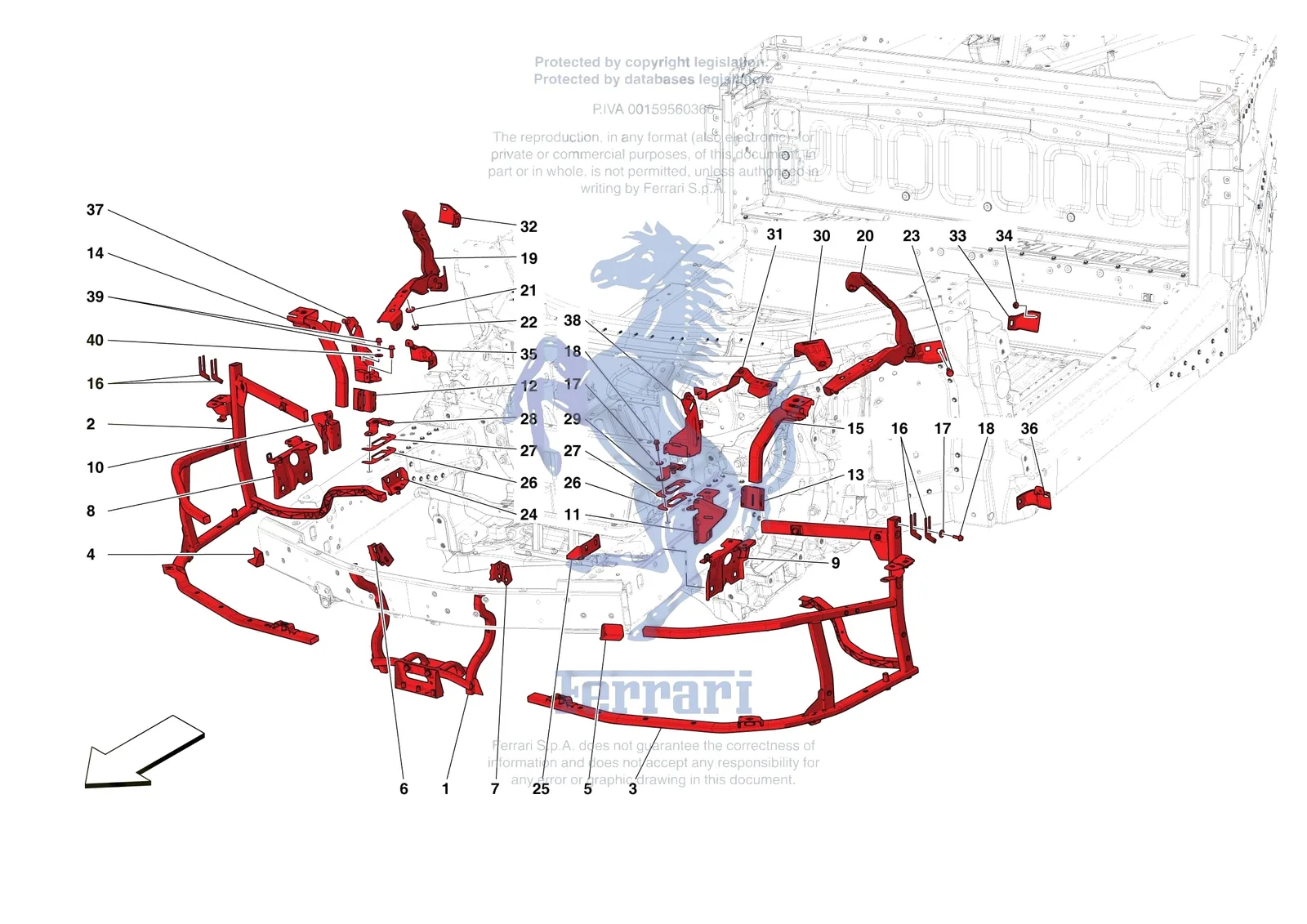

Exploded view of the [vehicle trim] - e.05 - front substructure on the Ferrari SF90 Stradale, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [VEHICLE TRIM] - E.05 - FRONT SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
1985853003Ferrari Complete Centre Front Subframe - 985853003$1,354.22Special order, ships in 7-14 days
2985852915Ferrari Complete RH Front Subframe - 985852915$1,946.33Special order, ships in 7-14 days
3985852889Ferrari Complete LH Front Subframe - 985852889$2,016.68Special order, ships in 7-14 days
4852994Ferrari RH Upper Trellis Bracket - 852994$18.44Special order, ships in 7-14 days
5852887Ferrari LH Upper Trellis Bracket - 852887$18.44Special order, ships in 7-14 days
6852993Ferrari Upper RH Bracket - 852993$24.59Special order, ships in 7-14 days
7852962Ferrari Upper LH Bracket - 852962$24.59Special order, ships in 7-14 days
8985852982Ferrari Compl. Upper Front Bracket F - 985852982$640.17Special order, ships in 7-14 days
9985852973Ferrari Compl. Upper Front Bracket F - 985852973$640.17Special order, ships in 7-14 days
10853029Ferrari Mounting Bracket for Front RH Trellis - 853029$59.07Special order, ships in 7-14 days
11873259Ferrari Mounting Bracket for Front LH Trellis - 873259$128.01Special order, ships in 7-14 days
12853028Ferrari Lower Bracket for RH Front Trellis - 853028$24.34Special order, ships in 7-14 days
13853036Ferrari Lower Bracket for LH Front Trellis - 853036$24.34Special order, ships in 7-14 days
14985853030Ferrari Compl. RH Fender Mounting Tr - 985853030$886.38Special order, ships in 7-14 days
15985854547Ferrari Compl. LH Fender Mounting Tr - 985854547$886.38Special order, ships in 7-14 days
16852947Ferrari Spessore 1Mm - 852947$5.44Special order, ships in 7-14 days
1712643724Ferrari/Maserati Washer - 12643724$0.20In stock
1816286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
19852996Ferrari RH Front Lid Hinge - 852996$295.43Special order, ships in 7-14 days
20852995Ferrari LH Front Lid Hinge - 852995$295.43Special order, ships in 7-14 days
2113578301Ferrari Washer - 13578301$0.17Special order, ships in 7-14 days
2214059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
2316287234Ferrari SCREW - 16287234$1.05Available, ships in 3-6 days
24900330Ferrari Complete RH Front Luggage Compartment Tub - 900330$51.67Special order, ships in 7-14 days
25900329Ferrari Complete LH Front Luggage Compartment Tub - 900329$51.67Special order, ships in 7-14 days
26880756Ferrari Spessore 0.5Mm - 880756$43.74Special order, ships in 7-14 days
27880755Ferrari Spessore 1Mm - 880755$54.68Special order, ships in 7-14 days
28882717Ferrari Compl. Rear Mounting Bracket for RH Tray - 882717$29.52Special order, ships in 7-14 days
29876981Ferrari Rear Mounting Bracket for LH Tray - 876981$29.52Special order, ships in 7-14 days
30890415Ferrari Compl. LH Windscreen Wiper Mounting Bracket - 890415$66.35Special order, ships in 7-14 days
30883584Ferrari Compl. RH Windscreen Wiper M - 883584$76.19Special order, ships in 7-14 days
31985866709Ferrari Compl. Scuttle Drain-LH Wipe - 985866709$590.91Special order, ships in 7-14 days
31985883586Ferrari Compl. Scuttle Drain-RH Wipe - 985883586$443.17Special order, ships in 7-14 days
32852881Ferrari RH Upper Door Jamb Mounting Bracket - 852881$46.75Special order, ships in 7-14 days
33830996Ferrari LH Upper Door Jamb Bracket - 830996$46.75Special order, ships in 7-14 days
3413046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
35852883Ferrari RH Lower Door Jamb Mounting Bracket - 852883$49.22Special order, ships in 7-14 days
36831137Ferrari LH Lower Door Jamb Bracket - 831137$49.22Special order, ships in 7-14 days
37985913290Ferrari RH Stabilus Bracket - 985913290$492.43Special order, ships in 7-14 days
38985913292Ferrari LH Stabilus Bracket - 985913292$492.43Special order, ships in 7-14 days

All SF90 Stradale diagrams
