Ferrari SF90 Stradale — [VEHICLE TRIM] - E.14 - FRONT SHIELDS (diagram 0113)

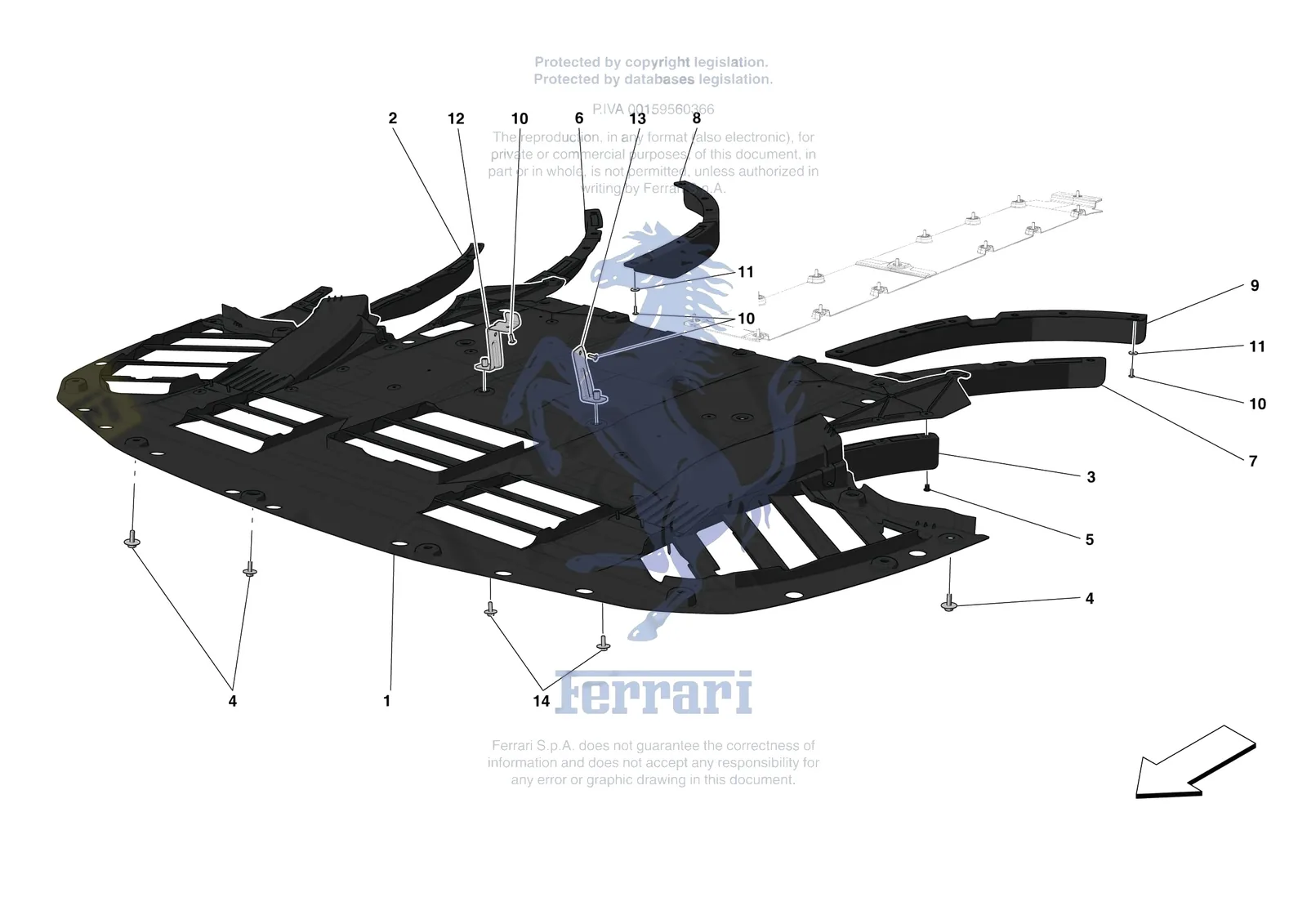

Exploded view of the [vehicle trim] - e.14 - front shields on the Ferrari SF90 Stradale, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [VEHICLE TRIM] - E.14 - FRONT SHIELDS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0113.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 743046 | Ferrari Riparo Sottoscocca Ant Carbo - 743046 | $15,226.15 | Contact us to order |
| 1 | 871334 | Ferrari Riparo Sottoscocca Ant Carbo - 871334 | Superseded | Order 743046 instead |
| 1 | 849085 | Ferrari Riparo Sottoscocca Anter. Ba - 849085 | $1,034.12 | Special order, ships in 7-14 days |
| 2 | 849064 | Ferrari RH Lateral Front Dam - 849064 | $145.25 | Special order, ships in 7-14 days |
| 3 | 849063 | Ferrari LH Lateral Front Dam - 849063 | $145.25 | Special order, ships in 7-14 days |
| 4 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 4 | 897537 | Ferrari Screw with Washer M6 x 20 x 22 - 897537 | $3.68 | Special order, ships in 7-14 days |
| 5 | 900472 | Ferrari Fastener Button D.5 - 900472 | $0.98 | Special order, ships in 7-14 days |
| 6 | 849058 | Ferrari RH Central Front Dam - 849058 | $142.79 | Special order, ships in 7-14 days |
| 7 | 849057 | Ferrari LH Central Front Dam - 849057 | $142.79 | Special order, ships in 7-14 days |
| 8 | 849062 | Ferrari Dam Ant. Interno Dx - 849062 | $132.94 | Special order, ships in 7-14 days |
| 9 | 849061 | Ferrari Dam Ant. Interno Sx - 849061 | $132.94 | Special order, ships in 7-14 days |
| 10 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 11 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 12 | 967551 | Ferrari RH Front Bottom Fixing Bracket - 967551 | $51.67 | Special order, ships in 7-14 days |
| 13 | 967555 | Ferrari LH Front Bottom Fixing Bracket - 967555 | $51.67 | Special order, ships in 7-14 days |
