Ferrari SF90 Stradale — [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES (diagram 0121)
Exploded view of the [vehicle trim] - e.22 - front air intakes on the Ferrari SF90 Stradale, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

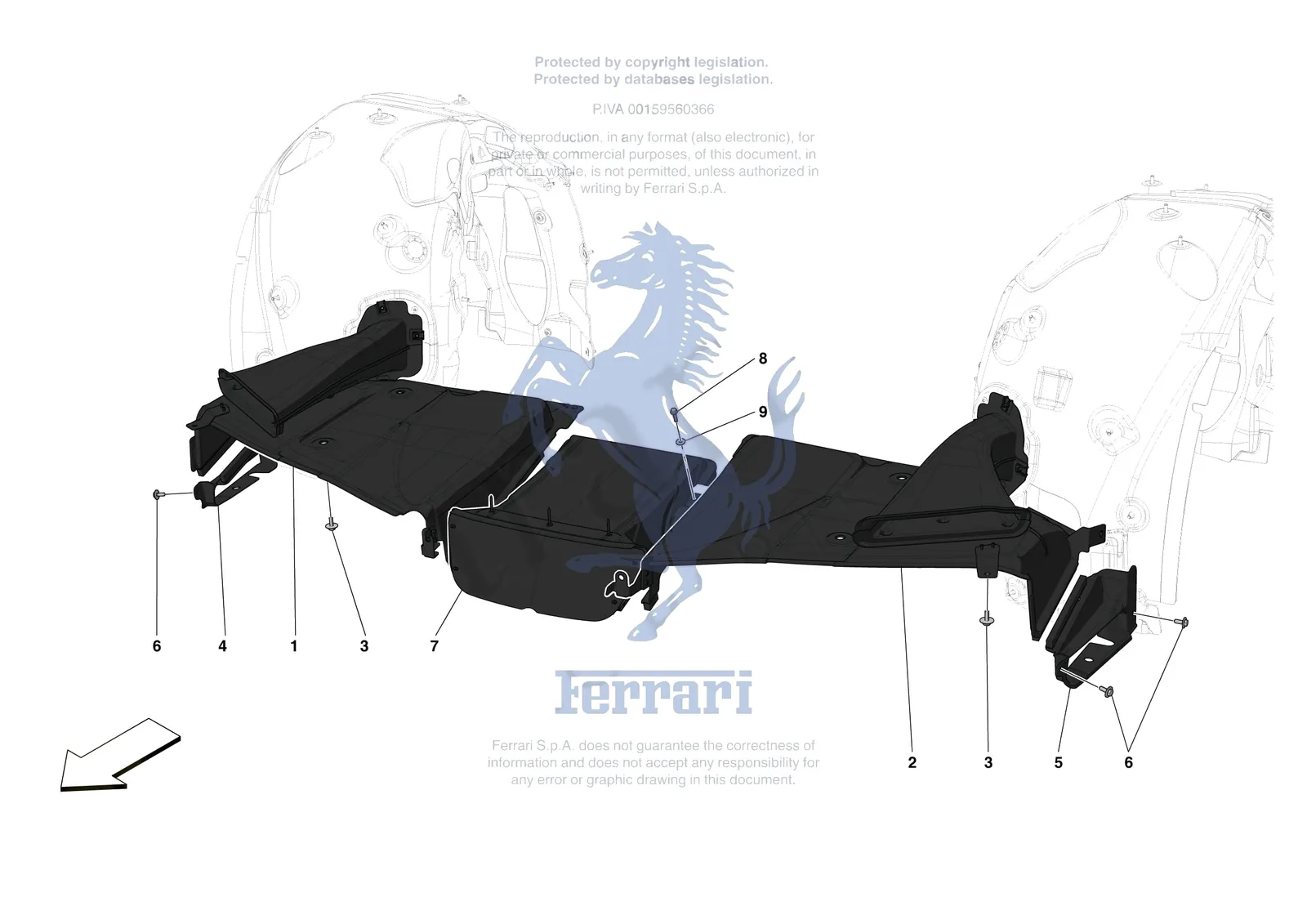

![Ferrari SF90 Stradale [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0121.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 882596 | Ferrari Convogliatore Ant. Dx Cs - 882596 | $615.54 | Special order, ships in 7-14 days |
| 2 | 882595 | Ferrari Convogliatore Ant. Sx Cs - 882595 | $615.54 | Special order, ships in 7-14 days |
| 3 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 4 | 873477 | Ferrari Convogliatore Ant. Laterale - 873477 | $66.45 | Special order, ships in 7-14 days |
| 5 | 873473 | Ferrari Convogliatore Ant. Laterale - 873473 | $66.45 | Special order, ships in 7-14 days |
| 6 | 897538 | Ferrari Screw M6 x 18 - 897538 | $3.26 | Special order, ships in 7-14 days |
| 6 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 7 | 865641 | Ferrari Convogliatore Ant. Centrale - 865641 | $492.43 | Special order, ships in 7-14 days |
| 8 | 16285224 | Ferrari Screw 5x20 - 16285224 | $0.52 | Available, ships in 3-6 days |
| 9 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
