Ferrari SF90 Stradale — [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES (diagram 0122)

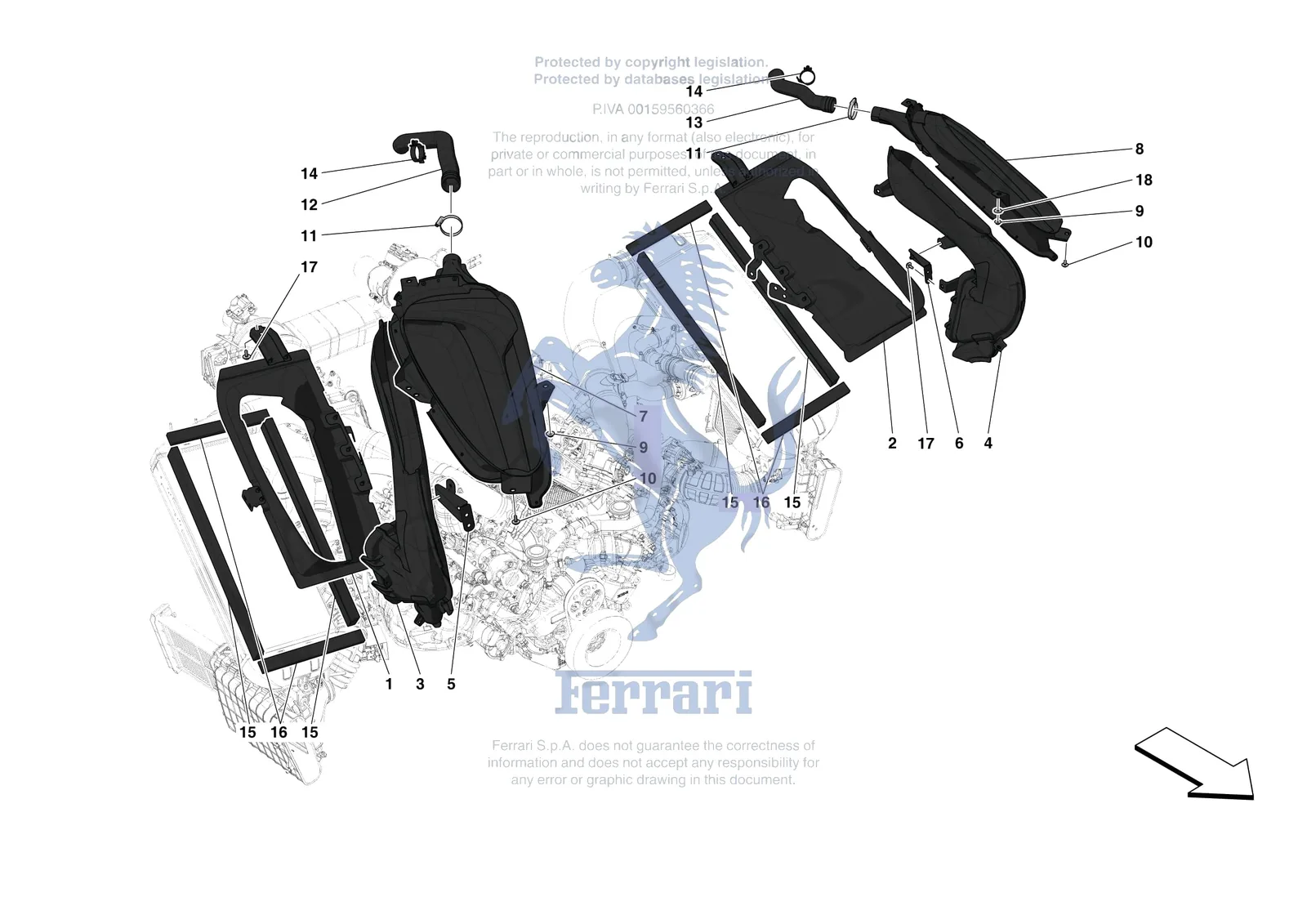

Exploded view of the [vehicle trim] - e.23 - lateral air intakes on the Ferrari SF90 Stradale, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [VEHICLE TRIM] - E.23 - LATERAL AIR INTAKES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0122.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 967888 | Ferrari Condotto Presa Aria I.C. Dx - 967888 | $369.30 | Special order, ships in 7-14 days |
| 2 | 967891 | Ferrari Condotto Presa Aria I.C. Sx - 967891 | $369.30 | Special order, ships in 7-14 days |
| 3 | 862299 | Ferrari Condotto Presa Aria Motore D - 862299 | $369.30 | Special order, ships in 7-14 days |
| 4 | 862252 | Ferrari Condotto Presa Aria Motore S - 862252 | $443.17 | Special order, ships in 7-14 days |
| 5 | 862316 | Ferrari Complete RH Bracket - Air Intake - 862316 | $76.30 | Special order, ships in 7-14 days |
| 6 | 862314 | Ferrari Complete LH Bracket - Air Intake - 862314 | $76.30 | Special order, ships in 7-14 days |
| 7 | 871819 | Ferrari Mostr.Est. Pr.Aria Lat. Dx C - 871819 | $7,520.43 | Special order, ships in 7-14 days |
| 7 | 862277 | Ferrari Mostr.Est. Pr.Aria Laterali - 862277 | $1,403.46 | Special order, ships in 7-14 days |
| 7 | 70006955 | Ferrari RH AIR PARTITION PANEL - 70006955 | Price on request | Contact us for price and availability |
| 7 | 70007440 | Ferrari RH AIR PARTITION PANEL - 70007440 | Price on request | Contact us for price and availability |
| 8 | 70006956 | Ferrari LH AIR PARTITION PANEL - 70006956 | Price on request | Contact us for price and availability |
| 8 | 70007441 | Ferrari LH AIR PARTITION PANEL - 70007441 | Price on request | Contact us for price and availability |
| 8 | 871822 | Ferrari Mostr.Est. Pr.Aria Lat. Sx C - 871822 | $7,520.43 | Special order, ships in 7-14 days |
| 8 | 862235 | Ferrari Mostr.Est. Pr.Aria Laterali - 862235 | $1,674.30 | Special order, ships in 7-14 days |
| 9 | 14059290 | Ferrari Flanged Nut M6 - 14059290 | $2.82 | Available, ships in 3-6 days |
| 9 | 13046112 | Ferrari Nut - 13046112 | $0.46 | Available, ships in 3-6 days |
| 9 | 911976 | Ferrari Wide Flange Hex Nut - 911976 | $24.02 | Special order, ships in 7-14 days |
| 10 | 11625824 | Ferrari Screw 6x18 - 11625824 | $0.71 | Available, ships in 3-6 days |
| 10 | 897538 | Ferrari Screw M6 x 18 - 897538 | $3.26 | Special order, ships in 7-14 days |
| 10 | 81591700 | Ferrari Screw TE M6 x 18 with washer - 81591700 | $4.12 | Available, ships in 3-6 days |
| 11 | 296782 | Ferrari Hose Clamp 32-50mm - 296782 | $17.67 | Available, ships in 3-6 days |
| 12 | 862328 | Ferrari Tubo Raffr. Centralina Ion - 862328 | $147.72 | Special order, ships in 7-14 days |
| 13 | 908475 | Ferrari Tubo Aria Vano Motore Sx - 908475 | $145.25 | Special order, ships in 7-14 days |
| 14 | 292206 | Ferrari Pipe Retainer Clip - 292206 | $1.80 | Special order, ships in 7-14 days |
| 15 | 862270 | Ferrari Guarnizione Lat.Est.Conv.I.C - 862270 | $105.03 | Special order, ships in 7-14 days |
| 16 | 862268 | Ferrari Upper/Lower Duct Gasket - 862268 | $16.18 | Special order, ships in 7-14 days |
| 18 | 12646678 | Ferrari Washer - 12646678 | $1.49 | Available, ships in 3-6 days |
