Ferrari SF90 Stradale — [VEHICLE TRIM] - E.47.07 - DASHBOARD - GLOVE COMPARTMENT (diagram 0155)

Exploded view of the [vehicle trim] - e.47.07 - dashboard - glove compartment on the Ferrari SF90 Stradale, with 42 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

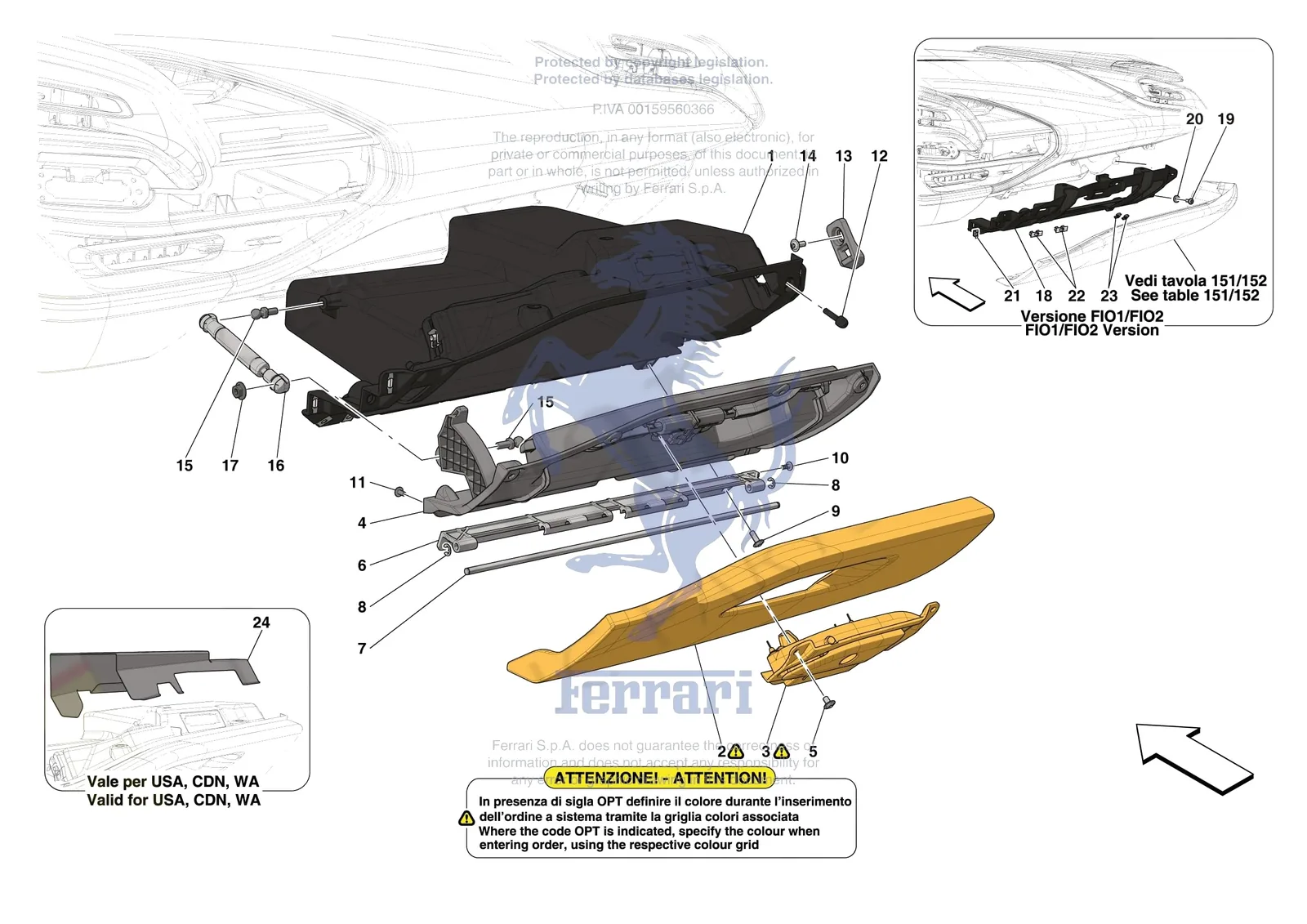

Ferrari SF90 Stradale [VEHICLE TRIM] - E.47.07 - DASHBOARD - GLOVE COMPARTMENT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1856689Ferrari Compl. Glove Compartment - 856689$418.56Special order, ships in 7-14 days
1838401Ferrari Compl. Glove Compartment. RH - 838401$418.56Special order, ships in 7-14 days
2806479Ferrari Compl. Glove Compartment Doo - 806479$1,034.12Special order, ships in 7-14 days
2842414Ferrari Compl. Glove Compartment Doo - 842414$1,107.99Special order, ships in 7-14 days
2838404Ferrari COMPL. GLOVE COMPARTMENT DOOR - 838404Price on requestContact us for price and availability
2899792Ferrari COMPL. GLOVE COMPARTMENT DOOR - 899792Price on requestContact us for price and availability
2940041Ferrari COMPL. GLOVE COMPARTMENT DOOR - 940041Price on requestContact us for price and availability
2963139Ferrari COMPL. GLOVE COMPARTMENT DOOR - 963139Price on requestContact us for price and availability
3830305Ferrari Compl. Glove Compartment Doo - 830305$615.54Special order, ships in 7-14 days
3830307Ferrari Compl. Glove Compartment Doo - 830307Price on requestContact us for price and availability
4838409Ferrari Compl. Glove Compartment Doo - 838409$320.06Special order, ships in 7-14 days
4856726Ferrari Compl. Glove Compartment Doo - 856726$270.83Special order, ships in 7-14 days
585691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
6839621Ferrari Glove Compartment Hinge - 839621$23.86Special order, ships in 7-14 days
6856695Ferrari Glove Compartment Hinge - 856695$23.36Special order, ships in 7-14 days
786174400Ferrari Glove Compartment Lid Pivot - 86174400$34.44Special order, ships in 7-14 days
811087776Ferrari Circlip - 11087776$0.13Available, ships in 3-6 days
985833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
1016083501Ferrari Trim Screw 4x12 - 16083501$0.12Available, ships in 3-6 days
11309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
1265361300Ferrari Pin - 65361300SupersededOrder 80810100 instead
1280810100Ferrari Rubber - 80810100$58.98Available, ships in 3-6 days
1389257000Ferrari Lock Striker - 89257000$56.52Special order, ships in 7-14 days
1485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
15864966Ferrari Ball Joint - 864966$8.82Special order, ships in 7-14 days
16982860Ferrari Glove Compartment Stabilus - 982860$89.58Special order, ships in 7-14 days
1713046112Ferrari Nut - 13046112$0.46Available, ships in 3-6 days
18874450Ferrari Compl. Fixed Glove Compartment Lid Structure - 874450$418.56Special order, ships in 7-14 days
18890435Ferrari Compl. Fixed Glove Compartment Lid Structure - Fiorano RHD - 890435$467.80Special order, ships in 7-14 days
1985692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
2012638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
21967402Ferrari Metal Clip 46 X 18 - 967402$6.96Special order, ships in 7-14 days
2268700200Ferrari Fixing Clip - 68700200$10.68Special order, ships in 7-14 days
2367278400Ferrari BRACKET - 67278400$21.60Special order, ships in 7-14 days
24911519Ferrari Glove Compartment Reinforcem - 911519$98.46Special order, ships in 7-14 days

All SF90 Stradale diagrams
