Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0185)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari SF90 Stradale, with 67 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

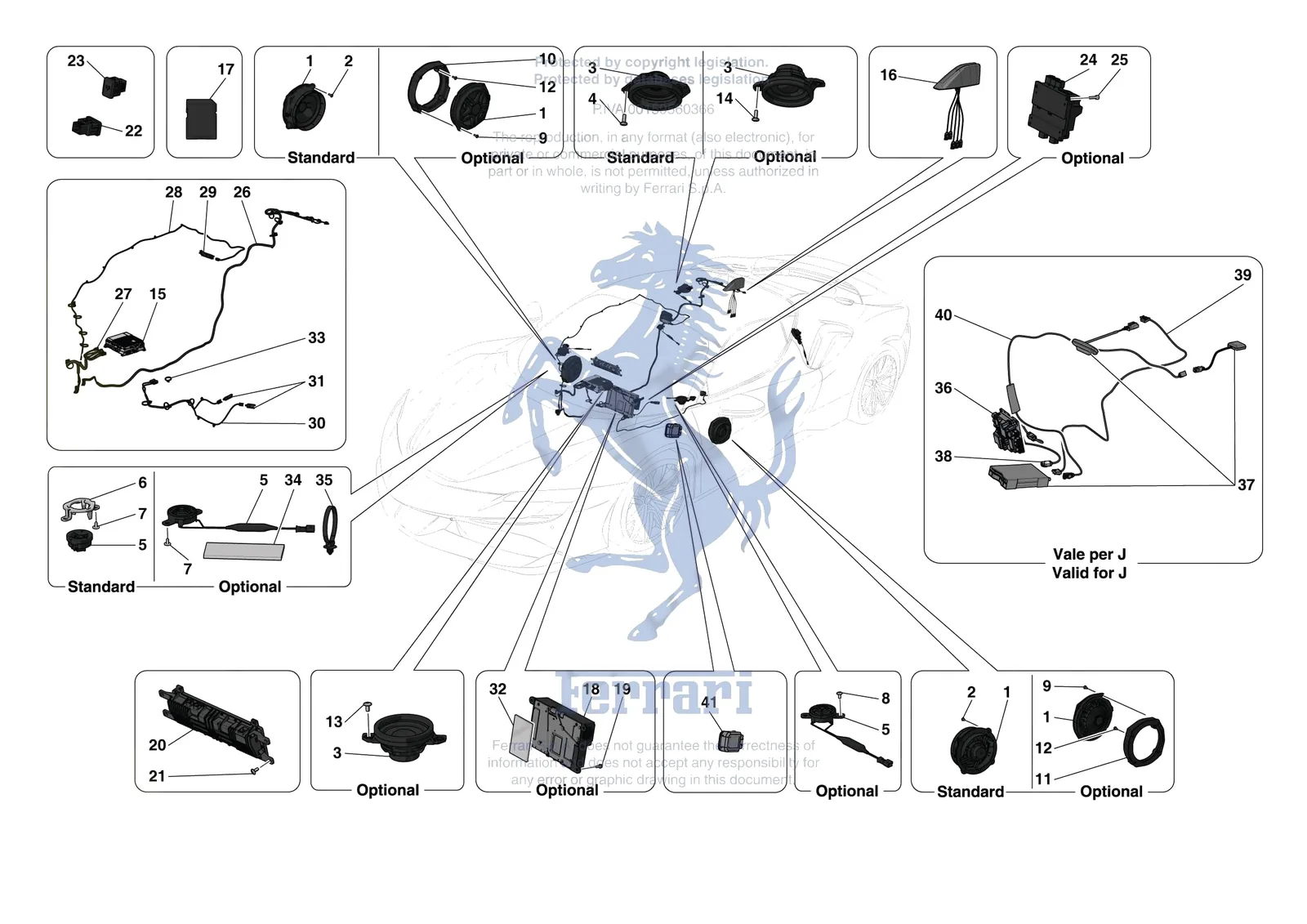

Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
192623Ferrari Screw - 192623$5.40Special order, ships in 7-14 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
288974Ferrari USB Socket - 288974SupersededOrder 303226 instead
14303324Ferrari/Maserati Screw - 14303324$0.29In stock
1328469Ferrari Woofer - 328469$1,289.48Special order, ships in 7-14 days
1334279Ferrari Woofer - 334279$183.56Special order, ships in 7-14 days
285834100Ferrari Screw M5 x 30 TBFTX - 85834100$0.79Special order, ships in 7-14 days
3321889Ferrari Speaker - 321889$305.96Special order, ships in 7-14 days
3269772Ferrari Twiddler - 269772$109.25Special order, ships in 7-14 days
485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
5251541Ferrari Tweeter - 251541$56.79Special order, ships in 7-14 days
5321882Ferrari Tweeter - 321882$131.10Special order, ships in 7-14 days
688202500Ferrari Tweeter Support - 88202500$4.39Special order, ships in 7-14 days
715782504Ferrari Screw 3.5x10 - 15782504$0.86Available, ships in 3-6 days
8309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
10260131Ferrari RH Woofer Adapter - 260131$44.24Special order, ships in 7-14 days
11260130Ferrari LH Woofer Adapter - 260130$44.24Special order, ships in 7-14 days
1385692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
15770648Ferrari Nit - 770648SupersededOrder 868807 instead
15862040Ferrari Nit - 862040SupersededOrder 868513 instead
15868508Ferrari Nit - 868508$14,740.74Contact us to order
15868513Ferrari Nit - 868513$13,148.46Contact us to order
15868515Ferrari Nit - 868515$14,986.96Contact us to order
15868807Ferrari Nit - 868807$13,148.46Contact us to order
15928174Ferrari Nit - 928174SupersededOrder 868508 instead
15928177Ferrari Nit - 928177SupersededOrder 868515 instead
15868509Ferrari Nit Art F173 Liv. D2 Row No - 868509$13,185.99Contact us to order
15968915Ferrari Nit Art F173 Liv. D2 Row No - 968915SupersededOrder 868509 instead
15770650Ferrari Nit Art Unit SF90 Stradale Liv. D2 China/H - 770650SupersededOrder 868811 instead
15868811Ferrari Nit Art Unit SF90 Stradale Liv. D2 China/H - 868811$13,185.99Contact us to order
16866624Ferrari Fin Antenna - 866624$656.57Special order, ships in 7-14 days
16866625Ferrari Fin Antenna - 866625$831.68Special order, ships in 7-14 days
1770006011Ferrari Sd Card Navigation Maps - 70006011$1,256.70Special order, ships in 7-14 days
18342996Ferrari Amplificatore 12 Canal - 342996$8,603.83Special order, ships in 7-14 days
1916286124Ferrari Screw M6x20 - 16286124$0.71Special order, ships in 7-14 days
20866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
2185692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
22303226Ferrari USB Socket - 303226$100.78Special order, ships in 7-14 days
23848476Ferrari Presa Usb Smartphone Project - 848476$211.43Special order, ships in 7-14 days
24875005Ferrari USB Splitter - Apple Car Play Version - 875005$1,598.19Contact us to order
2514303224Ferrari Screw 4x16 - 14303224$1.15Special order, ships in 7-14 days
26881102Ferrari Cavo Dab1 Am/Fm Lte Gps Abit - 881102$615.54Special order, ships in 7-14 days
26958144Ferrari Dab1-Am/Fm-Lte-Gps-Passenger - 958144$911.01Special order, ships in 7-14 days
27881105Ferrari Cavo Dab1 Am/Fm Fm2 Lte Gps - 881105$393.93Special order, ships in 7-14 days
27962435Ferrari Dab1-Am/Fm-Fm2-Lte-Gps-Passe - 962435$467.80Special order, ships in 7-14 days
28881106Ferrari Cavo Fm2 Montante A - 881106$174.80Special order, ships in 7-14 days
28905339Ferrari Fm2 Antenna Cable - 905339$164.95Special order, ships in 7-14 days
28940519Ferrari Fm2 Antenna Cable - 940519$243.74Special order, ships in 7-14 days
28965224Ferrari Fm2 Antenna Cable - 965224$219.11Special order, ships in 7-14 days
29771351Ferrari FM2/DAB Amplifier - 771351$226.19Special order, ships in 7-14 days
29771352Ferrari Fm2/Dab Amplifier - 771352$270.44Special order, ships in 7-14 days
30881107Ferrari Cavo Cpl Wi/Fi - Bt - 881107$177.25Special order, ships in 7-14 days
31843076Ferrari Antenna Bt-Wifi Dual Band - 843076$85.22Special order, ships in 7-14 days
32179309Ferrari ADHESIVE FOAM - 179309$8.28Available, ships in 3-6 days
3310815787Ferrari Clamp - 10815787$0.31Available, ships in 3-6 days
35217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
36951766Ferrari 4-Way Usb Hub For Dsrc Jrc - 951766$1,598.19Special order, ships in 7-14 days
37928349Ferrari Compl. Drsc-Vics Kit - 928349$14,542.12Special order, ships in 7-14 days
38928354Ferrari Dsrc/Hub Cable - 928354$130.29Special order, ships in 7-14 days
39958191Ferrari Dsrc 5.8Ghz Advance Antenna - 958191$181.93Special order, ships in 7-14 days
40958192Ferrari Dsrc Beacon Antenna Cable - 958192$66.35Special order, ships in 7-14 days
41951166Ferrari Dongle - 951166SupersededOrder 951168 instead
41951167Ferrari Dongle - 951167$2,060.69Special order, ships in 7-14 days
41951168Ferrari MYFERRARI CONNECT ECU - 951168$1,920.19Special order, ships in 7-14 days
41951169Ferrari MYFERRARI CONNECT ECU - 951169$2,060.69Special order, ships in 7-14 days
