Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES (diagram 0189)

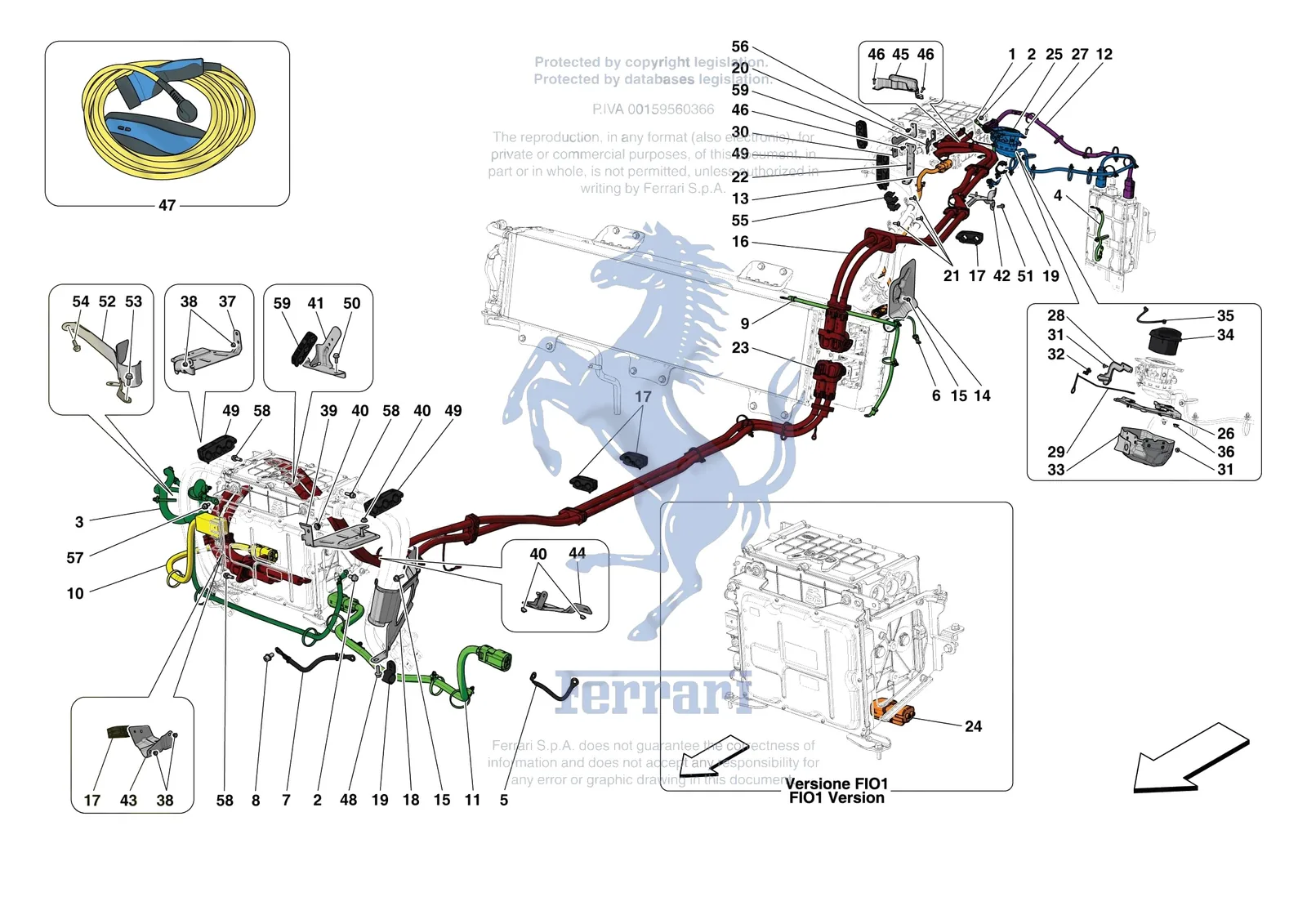

Exploded view of the [electrical system] - f.14 - high voltage wiring harnesses on the Ferrari SF90 Stradale, with 86 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.14 - HIGH VOLTAGE WIRING HARNESSES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
1958955Ferrari P2 Inverter Ground Cable - 958955$73.85Special order, ships in 7-14 days
216285924Ferrari Screw - 16285924$0.40Available, ships in 3-6 days
3958956Ferrari Cavo Massa Inverter P4/Dcdc - 958956$179.73Special order, ships in 7-14 days
4966277Ferrari Cavo Massa Obc - 966277$49.22Special order, ships in 7-14 days
5873336Ferrari Cavo Massa Riscaldatore Elet - 873336$27.06Special order, ships in 7-14 days
6917360Ferrari Cavo Massa Compressore Hv - 917360$39.37Special order, ships in 7-14 days
7914122Ferrari Cavo Massa Assale Con Pdm M8 - 914122$41.82Special order, ships in 7-14 days
8280460Ferrari Screw M8 x 14 TCEI with Washer - 280460$9.16Available, ships in 3-6 days
9879698Ferrari Cavo Massa Hvb - 879698$66.45Special order, ships in 7-14 days
10783409Ferrari Cavo Da Inverter P4 A Dcdc - 783409$714.03Special order, ships in 7-14 days
10873338Ferrari Cavo Da Inverter P4 A Dcdc - 873338SupersededOrder 783409 instead
11873339Ferrari Cavo Da Inv P4 A Heater - 873339$738.64Special order, ships in 7-14 days
12873340Ferrari Cavo Da Obc A Inverter P2 - 873340$738.64Special order, ships in 7-14 days
13873341Ferrari Cavo Da Inv P2 A Compressore - 873341$714.03Special order, ships in 7-14 days
14985240Ferrari Riparo Calore Compr. Ac - 985240$201.88Special order, ships in 7-14 days
15256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
16867779Ferrari Cable from HVB Battery to P2 Inverter - 867779$2,321.54Special order, ships in 7-14 days
17917256Ferrari Gogna 2 Vani Con Rinforzo Cn - 917256SupersededOrder 961295 instead
17961295Ferrari Gogna 2 Vani Con Rinforzo Cn - 961295$10.91Special order, ships in 7-14 days
18978990Ferrari HV Cable Holder Bracket - 978990$393.93Special order, ships in 7-14 days
18793224Ferrari LH Hv Cable Holder Bracket - 793224$418.56Special order, ships in 7-14 days
18809598Ferrari LH Hv Cable Holder Bracket - 809598$418.56Special order, ships in 7-14 days
19821185Ferrari Clip D.22-26.5 - 821185$5.65Special order, ships in 7-14 days
20924294Ferrari Bracket - High Voltage Cable HVC6 - 924294$44.29Special order, ships in 7-14 days
21231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
2182113500Ferrari Screw Torx M6 x 18 with Washer D. 15 - 82113500$5.86Available, ships in 3-6 days
22856636Ferrari P2 Three Phase Cable Bracket - 856636$44.29Special order, ships in 7-14 days
23871523Ferrari Cavo Hv Da Hvb A Inv P4 Rev. - 871523$2,563.08Special order, ships in 7-14 days
23935813Ferrari Hv Cable From Hvb To P4 Inve - 935813$2,563.08Special order, ships in 7-14 days
24923399Ferrari HV P4 INVERTER-HEATER CONNECTOR COVER - 923399Price on requestContact us for price and availability
25877010Ferrari Cable from OBC to Charging Socket - 877010$2,087.03Special order, ships in 7-14 days
25910644Ferrari Cavo Da Obc A Presa Di Ricar - 910644$1,748.17Special order, ships in 7-14 days
25877009Ferrari Cavo Obc A Presa Di Ricarica - 877009$2,063.59Special order, ships in 7-14 days
26904473Ferrari Adattatore Presa Ric. Eur Ty - 904473$56.60Special order, ships in 7-14 days
26877012Ferrari Adattatore Presa Ricarica Na - 877012$73.85Special order, ships in 7-14 days
26890843Ferrari Charging Socket Adapter - 890843$73.85Special order, ships in 7-14 days
2785740000Ferrari Screw - 85740000$2.59Special order, ships in 7-14 days
2714440724Ferrari Screw M5 x 16 TSEI - 14440724$0.65Available, ships in 3-6 days
28914433Ferrari Manual Release Bracket Socket - 914433$103.38Special order, ships in 7-14 days
29935643Ferrari Cavo Sblocco Emergenza Att P - 935643SupersededOrder 811962 instead
29811962Ferrari Emergency Release Cable - Charging Socket - 811962$2.93Special order, ships in 7-14 days
30856635Ferrari P2 Three Phase Connector Bracket - 856635$49.22Special order, ships in 7-14 days
3116083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
3264215300Ferrari Door Rod Clip - 64215300$0.82Available, ships in 3-6 days
3286009300Ferrari Passacavo D.3.6-6Mm - 86009300$1.50Special order, ships in 7-14 days
32748925Ferrari Rubber Cable Grommet - 748925$4.16Special order, ships in 7-14 days
33914283Ferrari Riparo Calore Presa Ric Tyco - 914283$369.30Special order, ships in 7-14 days
34890449Ferrari Tappo Ferrari Presa Ric. Eur - 890449$110.61Special order, ships in 7-14 days
35905181Ferrari Charge Socket Cord - 905181$39.31Special order, ships in 7-14 days
3614040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
37897127Ferrari Compl. RH P4 HV Cable Bracket - 897127$93.53Special order, ships in 7-14 days
3813046014Ferrari Nut - 13046014$0.63Special order, ships in 7-14 days
39918553Ferrari Complete LH High Voltage Cable Bracket - 918553$93.53Special order, ships in 7-14 days
41890901Ferrari Compl. HVB DC-DC Cable Bracket - 890901$71.38Special order, ships in 7-14 days
41934708Ferrari Compl. Hvb Dcdc Cable Bracke - 934708$83.68Special order, ships in 7-14 days
42912176Ferrari P2 Inverter Two Phase Cable Bracket - 912176$73.85Special order, ships in 7-14 days
43855351Ferrari Compl. Lower RH P4 HV Cable Bracket - 855351$59.07Special order, ships in 7-14 days
44934889Ferrari Firewall Bracket For Hvb Cab - 934889$91.08Special order, ships in 7-14 days
44915132Ferrari Firewall Bracket for HVB Cables to P4 Inverter - 915132$64.00Special order, ships in 7-14 days
45933899Ferrari Riparo Calore Cavi Hv Trav. - 933899$320.06Special order, ships in 7-14 days
4685833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
47811457Ferrari HVB Battery Charger - 811457$1,147.41Special order, ships in 7-14 days
47830475Ferrari HVB Battery Charger - 830475$1,873.35Special order, ships in 7-14 days
47879949Ferrari HVB Battery Charger - 879949$1,049.07Special order, ships in 7-14 days
47879950Ferrari HVB Battery Charger - 879950$1,212.98Special order, ships in 7-14 days
47879951Ferrari HVB Battery Charger - 879951$1,147.41Special order, ships in 7-14 days
47905975Ferrari HVB Battery Charger - 905975$1,606.40Special order, ships in 7-14 days
47924665Ferrari HVB Battery Charger - 924665$1,049.07Special order, ships in 7-14 days
47966429Ferrari HVB Battery Charger - 966429$1,049.07Special order, ships in 7-14 days
47966430Ferrari HVB Battery Charger - 966430$1,212.98Special order, ships in 7-14 days
47924664Ferrari Mrk HVB Battery Charger - UK - 924664$1,049.07Available, ships in 3-6 days
4816281824Ferrari Screw - 16281824$0.82Available, ships in 3-6 days
49983081Ferrari Triple Retainer Block - High Voltage Loom - 983081$86.15Special order, ships in 7-14 days
5016285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
5116286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
5116285124Ferrari Screw 5x16 - 16285124SupersededOrder 16286024 instead
52809597Ferrari RH Hv Cable Holder Bracket - 809597SupersededOrder 850764 instead
52850764Ferrari RH HV Cable Holder Bracket - 850764$590.91Special order, ships in 7-14 days
5316297624Ferrari Screw - 16297624$1.09Special order, ships in 7-14 days
5316296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
55292861Ferrari Clip - 292861$2.38Special order, ships in 7-14 days
56323665Ferrari Allen Head Bolt with Washer M6X14 - 323665$0.63Special order, ships in 7-14 days
57231627Ferrari Screw M8 x 16 - 231627$1.25Available, ships in 3-6 days
58323668Ferrari Screw - 323668$0.65Special order, ships in 7-14 days
59961316Ferrari Clip - 961316$14.84Available, ships in 3-6 days

All SF90 Stradale diagrams
