Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS (diagram 0190)

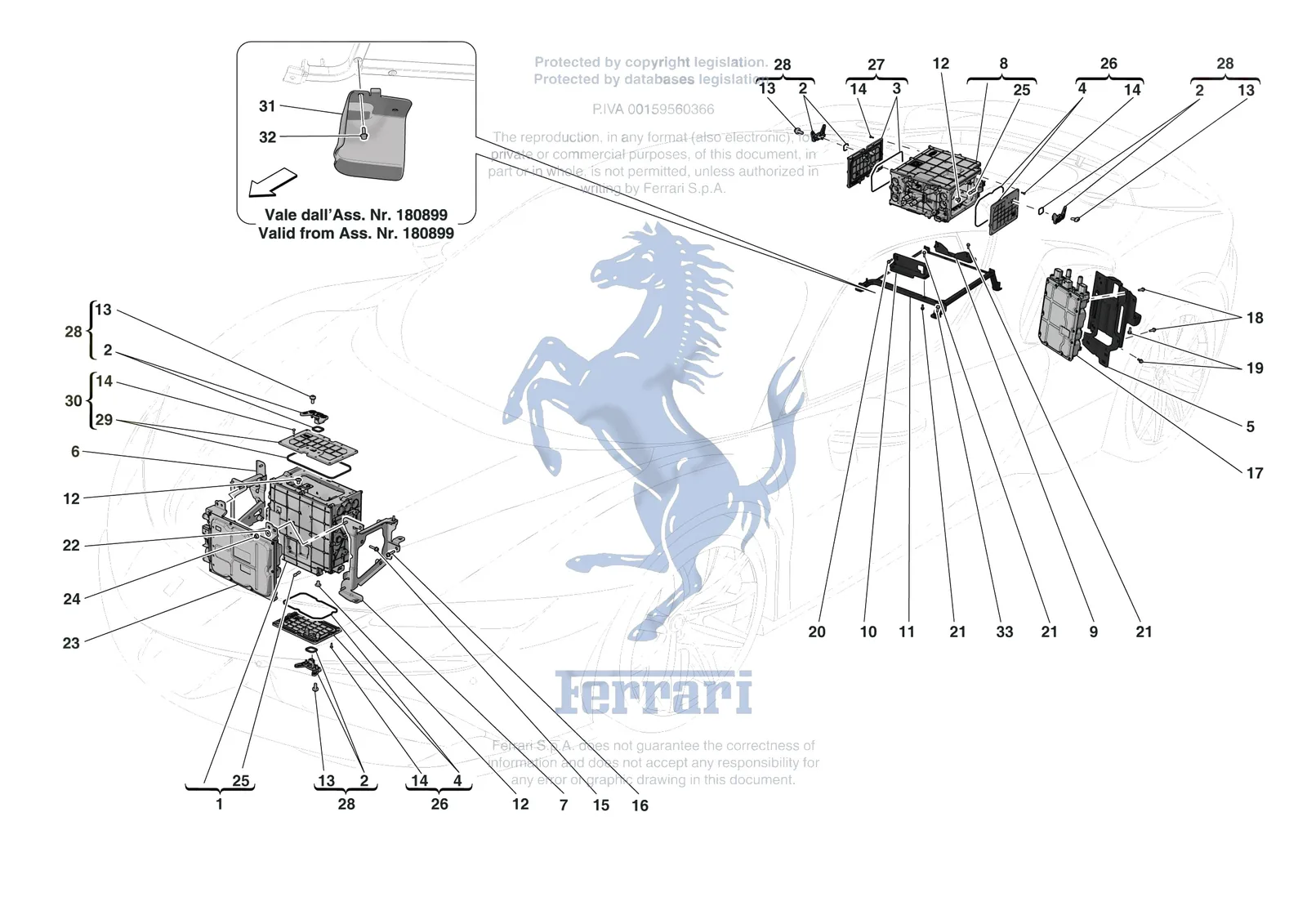

Exploded view of the [electrical system] - f.15 - power electronics on the Ferrari SF90 Stradale, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.15 - POWER ELECTRONICS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0190.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 985114 | Ferrari P4 Inverter Housing - 985114 | $13,708.93 | Special order, ships in 7-14 days |
| 2 | 897647 | Ferrari HVIL Heater And Gasket - 897647 | $78.66 | Available, ships in 3-6 days |
| 3 | 897596 | Ferrari Motor Inverter Cover with Gasket - 897596 | $174.55 | Special order, ships in 7-14 days |
| 4 | 871945 | Ferrari Battery Inverter Cover And Gasket - 871945 | $174.55 | Available, ships in 3-6 days |
| 5 | 911020 | Ferrari Bracket - 911020 | $238.82 | Special order, ships in 7-14 days |
| 6 | 893629 | Ferrari Bracket - 893629 | $418.56 | Special order, ships in 7-14 days |
| 7 | 918551 | Ferrari Bracket - 918551 | $320.06 | Special order, ships in 7-14 days |
| 8 | 985116 | Ferrari P2 Inverter Housing - 985116 | $12,991.35 | Special order, ships in 7-14 days |
| 9 | 919380 | Ferrari Bracket - 919380 | $140.32 | Special order, ships in 7-14 days |
| 10 | 864868 | Ferrari Front Bracket P2 Inverter Housing - 864868 | $93.53 | Special order, ships in 7-14 days |
| 11 | 772223 | Ferrari P2 Inverter Mounting Bracket - 772223 | $861.77 | Special order, ships in 7-14 days |
| 11 | 829741 | Ferrari P2 Inverter Mounting Bracket - 829741 | $837.14 | Special order, ships in 7-14 days |
| 12 | 935631 | Ferrari Torx Screw M8x12 - 935631 | $1.80 | Special order, ships in 7-14 days |
| 13 | 898141 | Ferrari Vite Tbei Hvil Inverter - 898141 | $0.82 | Special order, ships in 7-14 days |
| 14 | 10444624 | Ferrari Screw - 10444624 | $0.33 | Special order, ships in 7-14 days |
| 15 | 323670 | Ferrari Allen Head Bolt with Washer M6X25 - 323670 | $0.73 | Special order, ships in 7-14 days |
| 16 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 17 | 897402 | Ferrari On-Board Charger - 897402 | $9,678.35 | Special order, ships in 7-14 days |
| 18 | 890771 | Ferrari Vite Autoformante Taptite M6 - 890771 | $1.48 | Special order, ships in 7-14 days |
| 19 | 16286024 | Ferrari SCREW - 16286024 | $0.38 | Available, ships in 3-6 days |
| 20 | 323665 | Ferrari Allen Head Bolt with Washer M6X14 - 323665 | $0.63 | Special order, ships in 7-14 days |
| 21 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 22 | 904442 | Ferrari Washer PA M6X1.6 Din 9021 - 904442 | $2.38 | Special order, ships in 7-14 days |
| 23 | 939193 | Ferrari DC/DC - On Board Charger - 939193 | $4,875.45 | Special order, ships in 7-14 days |
| 24 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 25 | 962100 | Ferrari 50A Fuse - 962100 | $368.79 | Special order, ships in 7-14 days |
| 26 | 70005178 | Ferrari Battery Cable Cover Kit - 70005178 | Price on request | Contact us for price and availability |
| 27 | 70005179 | Ferrari Motor-P2 Inverter Cable Cover Kit - 70005179 | Price on request | Contact us for price and availability |
| 28 | 70005180 | Ferrari Complete HVIL Kit - 70005180 | Price on request | Contact us for price and availability |
| 29 | 816864 | Ferrari Motor-P4 Inverter Cover With Gasket - 816864 | $369.30 | Special order, ships in 7-14 days |
| 30 | 70005557 | Ferrari Motor-P4 Inverter Cable Cove - 70005557 | Price on request | Contact us for price and availability |
| 31 | 979807 | Ferrari Gearbox Breather Shield - 979807 | $103.38 | Special order, ships in 7-14 days |
| 33 | 86574700 | Ferrari Screw - 86574700 | $1.42 | Special order, ships in 7-14 days |
