Ferrari SF90 Stradale — [ELECTRICAL SYSTEM] - F.16 - ADAS AND SENSORS (diagram 0191)

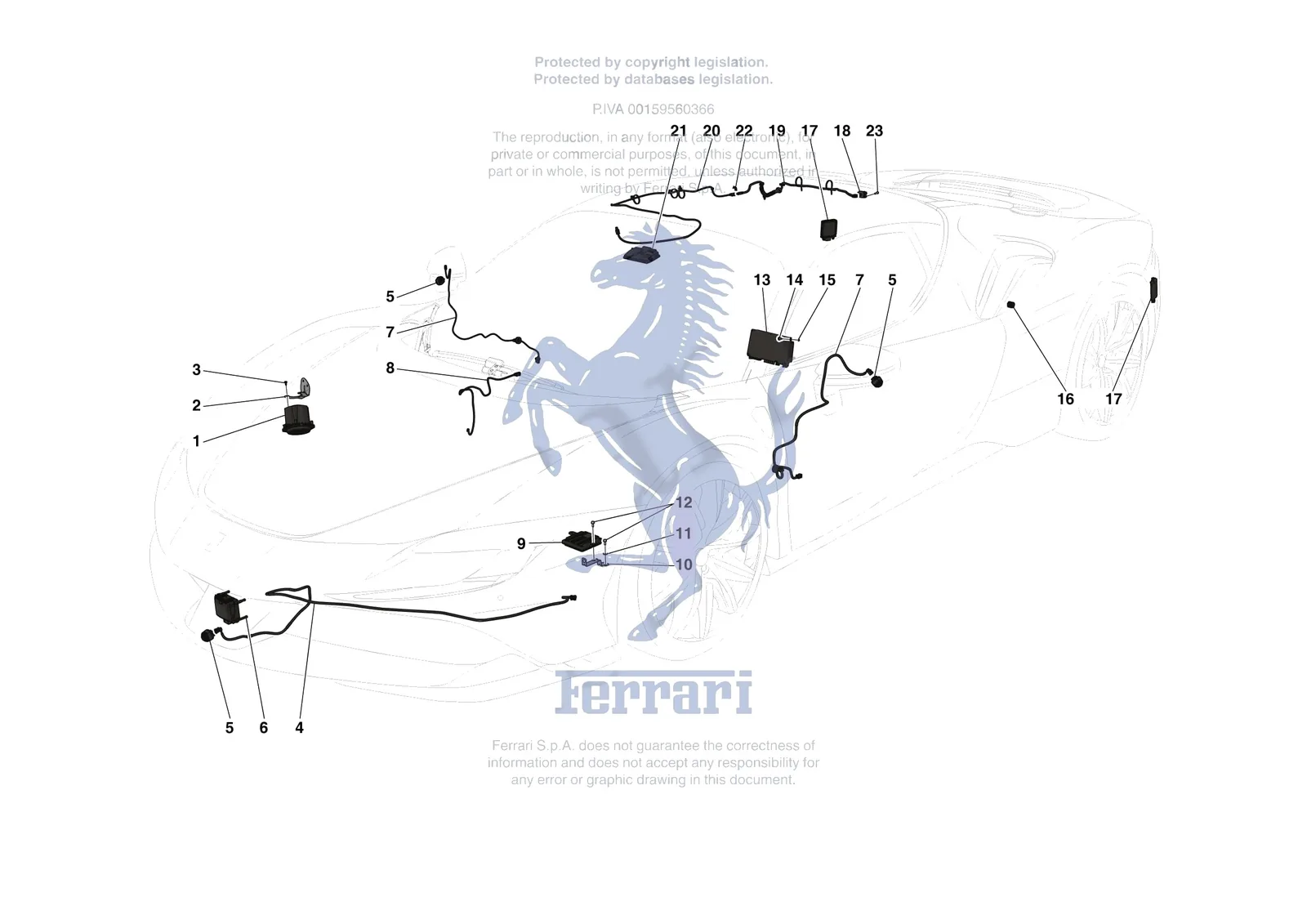

Exploded view of the [electrical system] - f.16 - adas and sensors on the Ferrari SF90 Stradale, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 Stradale [ELECTRICAL SYSTEM] - F.16 - ADAS AND SENSORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-stradale/0191.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 936441 | Ferrari Altoparlante Avas New Gen - 936441 | $349.68 | Special order, ships in 7-14 days |
| 2 | 778037 | Ferrari ADAS Speaker Fixing Bracket - 778037 | Superseded | Order 831392 instead |
| 2 | 876660 | Ferrari ADAS Speaker Fixing Bracket - 876660 | Superseded | Order 831392 instead |
| 2 | 831392 | Ferrari Bracket for Loudspeaker - 831392 | $108.31 | Special order, ships in 7-14 days |
| 3 | 829172 | Ferrari Screw - 829172 | $3.03 | Available, ships in 3-6 days |
| 4 | 959351 | Ferrari Front Bumper Camera Cable - 959351 | $189.31 | Special order, ships in 7-14 days |
| 5 | 818615 | Ferrari Surround Camera - 818615 | $1,967.03 | Special order, ships in 7-14 days |
| 6 | 852864 | Ferrari Medium Range Radar - 852864 | $2,341.71 | Special order, ships in 7-14 days |
| 7 | 865786 | Ferrari Nsw Mirror Camera Cable - 865786 | $172.10 | Special order, ships in 7-14 days |
| 8 | 880777 | Ferrari Dashboard Camera Cable - 880777 | $93.53 | Special order, ships in 7-14 days |
| 8 | 959995 | Ferrari Dashboard Camera Cable - 959995 | $96.01 | Special order, ships in 7-14 days |
| 9 | 864709 | Ferrari Ecu - 864709 | $1,032.68 | Special order, ships in 7-14 days |
| 10 | 873909 | Ferrari ADAS ECU Mounting Bracket - 873909 | $31.99 | Special order, ships in 7-14 days |
| 11 | 13577701 | Ferrari Washer 5.15 - 15 x 1.2 - 13577701 | $0.19 | Available, ships in 3-6 days |
| 12 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 13 | 823575 | Ferrari Surround View Ecu - 823575 | $7,576.71 | Special order, ships in 7-14 days |
| 14 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 15 | 160472 | Ferrari Nut - 160472 | $4.35 | Special order, ships in 7-14 days |
| 16 | 852295 | Ferrari Rear Camera - 852295 | $2,248.03 | Special order, ships in 7-14 days |
| 17 | 783725 | Ferrari Rear Radar - 783725 | $1,524.44 | Special order, ships in 7-14 days |
| 17 | 833142 | Ferrari Rear Radar - 833142 | $1,501.96 | Special order, ships in 7-14 days |
| 17 | 857446 | Ferrari Rear Radar - 857446 | $1,475.26 | Special order, ships in 7-14 days |
| 17 | 958559 | Ferrari Rear Radar - 958559 | $1,526.57 | Special order, ships in 7-14 days |
| 18 | 815940 | Ferrari Mirror Camera - 815940 | $1,083.38 | Special order, ships in 7-14 days |
| 19 | 869107 | Ferrari Spoiler Mirror Video Cable - 869107 | $443.17 | Special order, ships in 7-14 days |
| 19 | 981313 | Ferrari Spoiler Mirror Video Cable - 981313 | Superseded | Order 869107 instead |
| 20 | 981315 | Ferrari Passenger Compartment Mirror Video Cable - 981315 | $169.87 | Special order, ships in 7-14 days |
| 21 | 342967 | Ferrari Camera Mpc2.5 F173 - 342967 | Superseded | Order 959540 instead |
| 21 | 959540 | Ferrari Camera Mpc2.5 F173 - 959540 | $2,387.20 | Special order, ships in 7-14 days |
| 22 | 317027 | Ferrari Clip - 317027 | $1.02 | Special order, ships in 7-14 days |
| 23 | 812891 | Ferrari Screw - 812891 | $0.73 | Special order, ships in 7-14 days |
| 23 | 85796700 | Ferrari Screw - 85796700 | $0.79 | Special order, ships in 7-14 days |
