Ferrari SF90 XX Spider — [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD (diagram 0012)

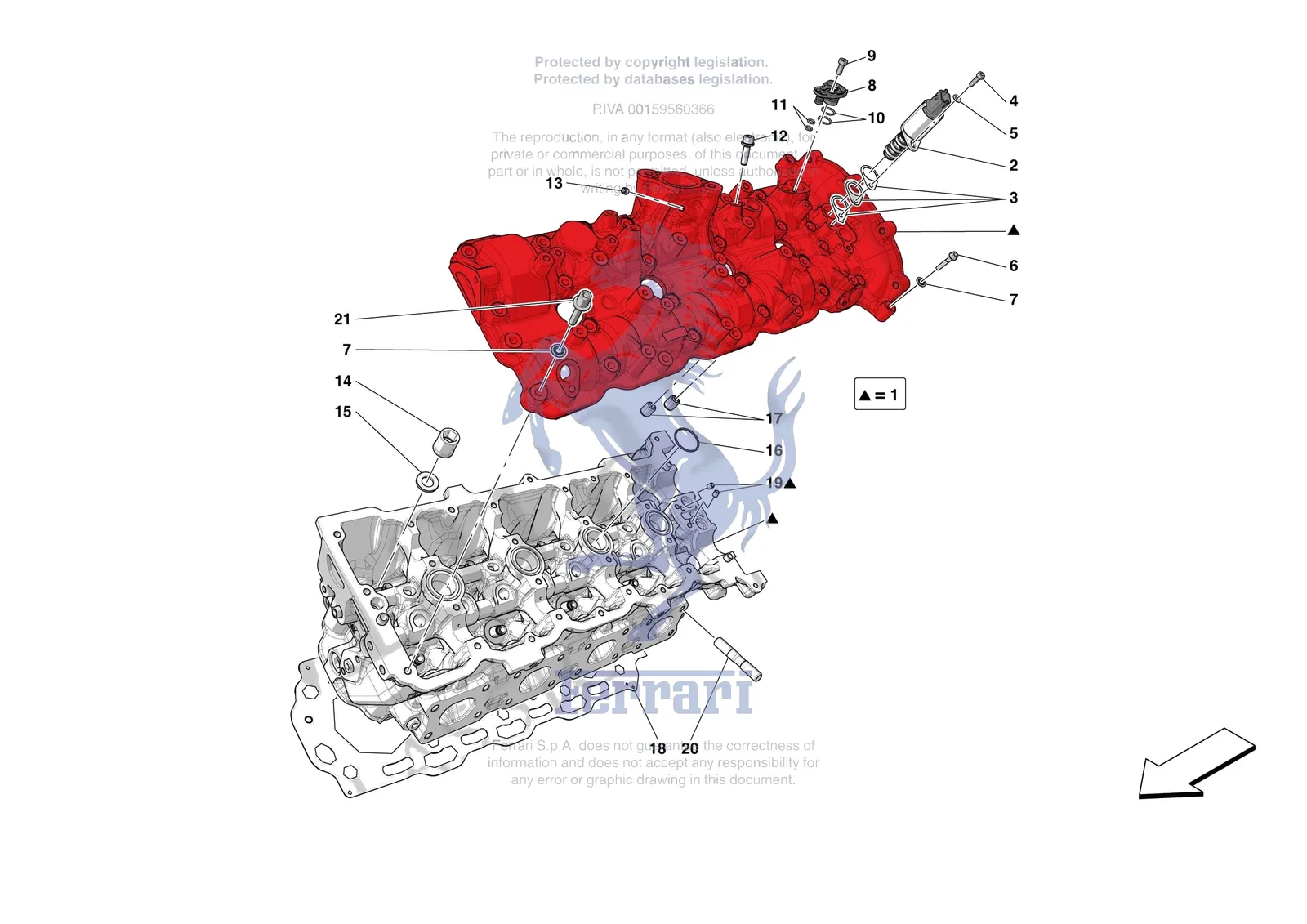

Exploded view of the [engine] - b.08.02 - cylinder heads - lh head on the Ferrari SF90 XX Spider, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [ENGINE] - B.08.02 - CYLINDER HEADS - LH HEAD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0012.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 287233 | Ferrari Cap - 287233 | Superseded | Order 806089 instead | |
| 255442 | Ferrari Oil Pressure Regulator Valve - 255442 | Superseded | Order 801187 instead | |
| 269227 | Ferrari Oil Pressure Regulator Valve - 269227 | Superseded | Order 801187 instead | |
| 296017 | Ferrari Oil Pressure Regulator Valve - 296017 | Superseded | Order 801187 instead | |
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 55021268 | Ferrari Assieme Testa Sx - Coperchio - 55021268 | $5,668.39 | Special order, ships in 7-14 days |
| 1 | 978197 | Ferrari LH Cylinder/LH Head Cover As - 978197 | $2,700.51 | Special order, ships in 7-14 days |
| 2 | 801187 | Ferrari Oil Pressure Regulator Valve - 801187 | $368.79 | Available, ships in 3-6 days |
| 3 | 861452 | Ferrari Piastr.Smorzante Per Valvola - 861452 | $14.26 | Special order, ships in 7-14 days |
| 4 | 14304224 | Ferrari Screw M5 x 16 - 14304224 | $0.27 | Available, ships in 3-6 days |
| 5 | 11181574 | Ferrari Washer - 11181574 | $0.06 | Available, ships in 3-6 days |
| 6 | 868188 | Ferrari Screw - 868188 | $1.05 | Special order, ships in 7-14 days |
| 7 | 296075 | Ferrari Washer - 296075 | $2.38 | Available, ships in 3-6 days |
| 8 | 806089 | Ferrari Plug - 806089 | $15.06 | Special order, ships in 7-14 days |
| 9 | 13026924 | Ferrari Screw 6x14 - 13026924 | $0.57 | Available, ships in 3-6 days |
| 10 | 14453281 | Ferrari O-Ring Gasket - 14453281 | $2.61 | Available, ships in 3-6 days |
| 11 | 14452781 | Ferrari Gasket - 14452781 | $0.38 | Available, ships in 3-6 days |
| 12 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 13 | 199760 | Ferrari Threaded Plug D 6x1 - 199760 | $0.57 | Available, ships in 3-6 days |
| 14 | 271125 | Ferrari Cylinder Head Nut - 271125 | $14.39 | Available, ships in 3-6 days |
| 15 | 271129 | Ferrari Washer - 271129 | $2.38 | Available, ships in 3-6 days |
| 16 | 166657 | Ferrari O-Ring D.29.87 - 166657 | $0.98 | Available, ships in 3-6 days |
| 17 | 342272 | Ferrari Non Return Valve - 342272 | $20.37 | Special order, ships in 7-14 days |
| 18 | 854427 | Ferrari Guarnizione Testa Basament - 854427 | $320.06 | Special order, ships in 7-14 days |
| 19 | 256827 | Ferrari Dowel - 256827 | $10.91 | Available, ships in 3-6 days |
| 20 | 937628 | Ferrari Prigioniero M8X19 Gambo 29 - 937628 | $5.04 | Special order, ships in 7-14 days |
| 21 | 980189 | Ferrari Stud Bolt - 980189 | $39.37 | Special order, ships in 7-14 days |
