Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

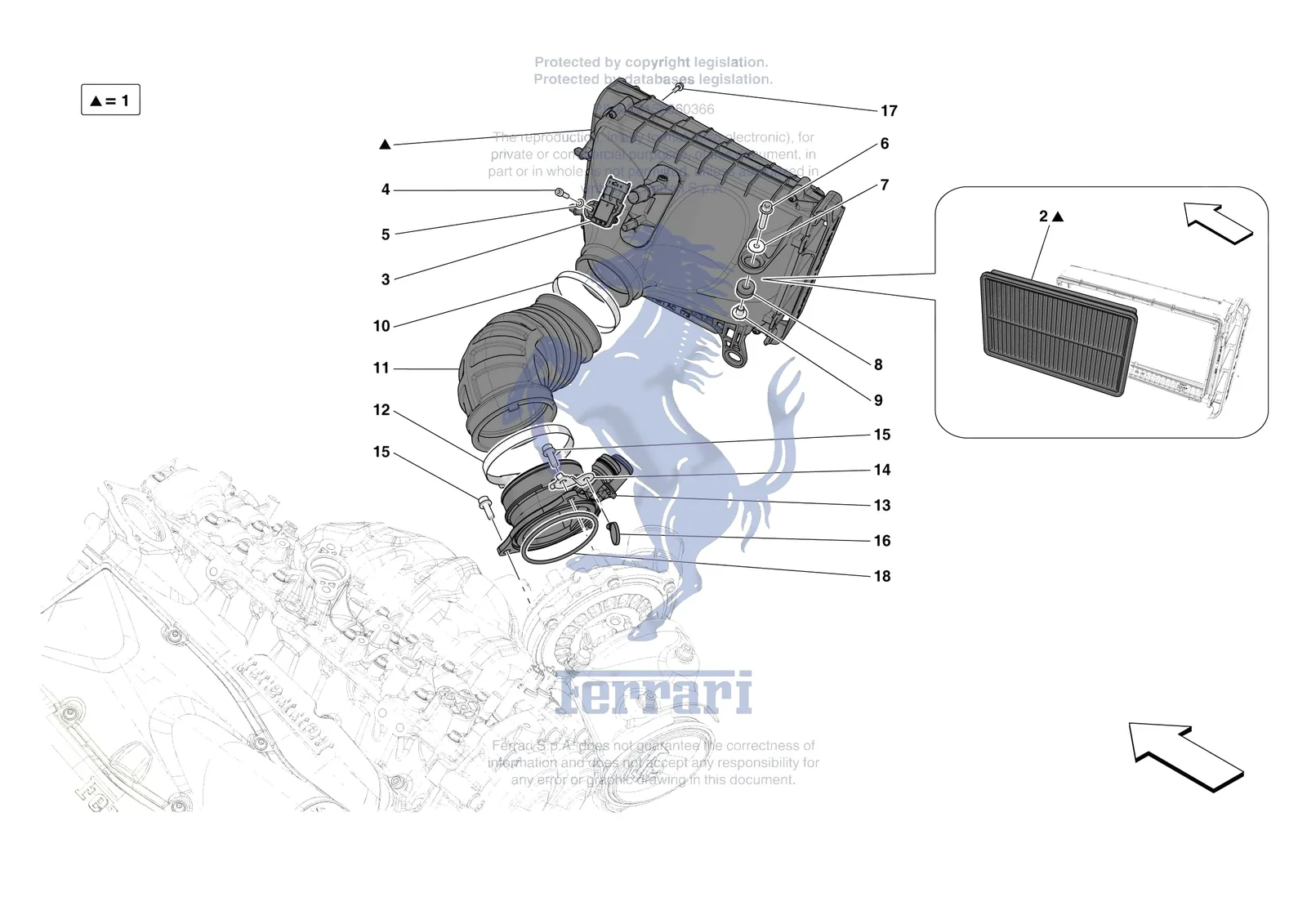

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari SF90 XX Spider, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0051.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 12601174 | Ferrari Wavy Washer 5mm - 12601174 | $0.12 | Available, ships in 3-6 days | |
| 1 | 865145 | Ferrari Complete LH Air Filter Box - 865145 | $1,875.98 | Special order, ships in 7-14 days |
| 1 | 914067 | Ferrari Complete LH Air Filter Box - 914067 | $1,698.93 | Special order, ships in 7-14 days |
| 1 | 865143 | Ferrari Complete RH Air Filter Box - 865143 | $1,875.98 | Special order, ships in 7-14 days |
| 1 | 914065 | Ferrari Complete RH Air Filter Box - 914065 | $1,698.93 | Special order, ships in 7-14 days |
| 2 | 815017 | Ferrari Air Filter - 815017 | $240.73 | Available, ships in 3-6 days |
| 2 | 865146 | Ferrari Air Filter - 865146 | $415.82 | Available, ships in 3-6 days |
| 3 | 272880 | Ferrari Pressure and Temperature Sensor - 272880 | $61.26 | Available, ships in 3-6 days |
| 4 | 14358524 | Ferrari Screw M5 x 18 - 14358524 | $0.19 | Available, ships in 3-6 days |
| 5 | 12604174 | Ferrari Washer - 12604174 | $0.06 | Available, ships in 3-6 days |
| 6 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 7 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 8 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 9 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 10 | 323688 | Ferrari Ring Clamp - 323688 | $8.93 | Special order, ships in 7-14 days |
| 11 | 882356 | Ferrari Manicotto Sf-Tc Dx - 882356 | $128.01 | Special order, ships in 7-14 days |
| 11 | 882357 | Ferrari Manicotto Sf-Tc Sx - 882357 | $130.47 | Special order, ships in 7-14 days |
| 12 | 296786 | Ferrari Hose Clamp 70 to 90mm - 296786 | $28.42 | Special order, ships in 7-14 days |
| 13 | 819010 | Ferrari Connector - Air Intake - 819010 | $590.91 | Special order, ships in 7-14 days |
| 13 | 819011 | Ferrari Connector - Air Intake - 819011 | $590.91 | Special order, ships in 7-14 days |
| 14 | 865226 | Ferrari Bracket for Air Duct Mount - 865226 | $21.64 | Special order, ships in 7-14 days |
| 15 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 16 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 17 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 18 | 14465381 | Ferrari Guarnizione Tipo Or D. 7897 - 14465381 | $10.93 | Special order, ships in 7-14 days |
