Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR (diagram 0057)

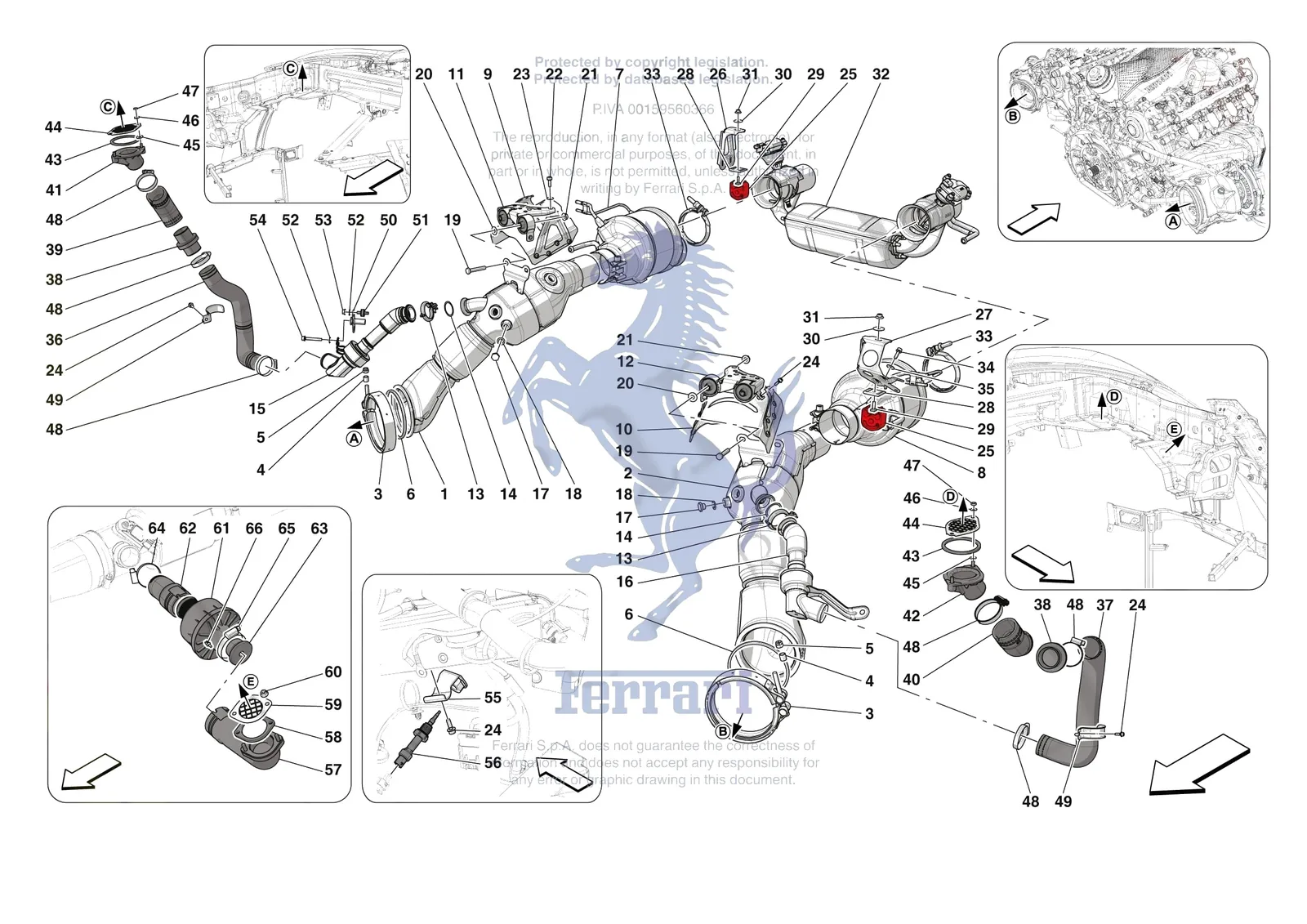

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear on the Ferrari SF90 XX Spider, with 81 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
938340Ferrari Muffler Light Titanium F173 - 938340SupersededOrder 958641 instead
15896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
12601171Ferrari Washer - 12601171SupersededOrder 12601174 instead
12604174Ferrari Washer - 12604174$0.06Available, ships in 3-6 days
12604178Ferrari Washer - 12604178SupersededOrder 12601174 instead
12605270Ferrari Washer - 12605270SupersededOrder 12601174 instead
12605274Ferrari Washer - 12605274SupersededOrder 12601174 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
660525Ferrari Washer - 660525SupersededOrder 12601174 instead
12601179Ferrari Wavy Washer 5mm - 12601179SupersededOrder 12601174 instead
1939970Ferrari Precat Light Inconel F173 RH - 939970$22,849.06Contact us to order
2939972Ferrari Precat Light Inconel F173 LH - 939972$22,827.35Contact us to order
3290743Ferrari V-Clamp For Fastening Catalytic Converter to Manifold - 290743$164.72Special order, ships in 7-14 days
4292946Ferrari 812/F12 Exhaust Clamp Shim/Spacer - 292946$9.75In stock
5292945Ferrari Nut M8 x 1.25 - 292945$28.39Special order, ships in 7-14 days
6275465Ferrari Gasket - 275465$103.25Available, ships in 3-6 days
7832344Ferrari Compl. RH Gpf - 832344$37,433.65Contact us to order
7867548Ferrari RH Complete GPF - 867548$16,039.87Contact us to order
8832347Ferrari Compl. LH Gpf - 832347$37,433.65Contact us to order
8867549Ferrari Gpf Cpl Sx - 867549$16,039.87Contact us to order
9826110Ferrari Riparo Cat Dx - 826110$177.25Special order, ships in 7-14 days
10826111Ferrari Riparo Cat Sx - 826111$177.25Special order, ships in 7-14 days
11981836Ferrari Complete RH Catalytic Converter Bracket - 981836$443.17Special order, ships in 7-14 days
12981838Ferrari Complete LH Catalytic Converter Bracket - 981838$443.17Special order, ships in 7-14 days
13855141Ferrari V-Clamp - 855141$71.28Special order, ships in 7-14 days
14898288Ferrari Guarnizione Per Flangia Tubo - 898288$30.57Special order, ships in 7-14 days
15908995Ferrari RH Rigid Pipe - 908995$1,895.91Special order, ships in 7-14 days
16909038Ferrari LH Rigid Pipe - 909038$1,895.91Special order, ships in 7-14 days
17110860Ferrari Manifold Blanking Plug - 110860$25.09Available, ships in 3-6 days
1810298460Ferrari Washer - 10298460$1.10In stock
1916044224Ferrari Screw M8 x 50mm TE - 16044224$0.79Available, ships in 3-6 days
2012625224Ferrari Washer - 12625224$0.13Available, ships in 3-6 days
2114059311Ferrari NUT - 14059311$0.52Available, ships in 3-6 days
22216565Ferrari Screw 6X20 - 216565$0.92Special order, ships in 7-14 days
2314498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
24256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
25239798Ferrari Rubber Exhaust Mount - 239798$112.88In stock
26917049Ferrari Exhaust Bracket - Front Section - 917049$78.76Special order, ships in 7-14 days
27919089Ferrari Bracket for LH Gas Particulate Filter - 919089$91.08Special order, ships in 7-14 days
27827919Ferrari Bracket for RH Gas Particulate Filter - 827919$68.92Special order, ships in 7-14 days
28240598Ferrari Bracket Plate - 240598$21.60Available, ships in 3-6 days
29250222Ferrari Screw Squared Head 6x18.5 - 250222$5.44Special order, ships in 7-14 days
3012648978Ferrari Washer - 12648978$1.04Available, ships in 3-6 days
3114039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
32958641Ferrari Muffler Light Titanium F173 - 958641$18,562.56Contact us to order
33806375Ferrari V-Clamp - 806375$94.09Special order, ships in 7-14 days
34231618Ferrari Allen Head Screw M6x20 TCEI - 231618$0.57Available, ships in 3-6 days
3512643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
36991144Ferrari RH Coiled Pipe - 991144$369.30Special order, ships in 7-14 days
37965166Ferrari Spiralato Sg Spider Sx - 965166$270.83Special order, ships in 7-14 days
38973449Ferrari Membrane Holder Pipe - 973449$211.73Special order, ships in 7-14 days
39961969Ferrari Manicotto Sg Spider Dx - 961969$91.08Special order, ships in 7-14 days
40830179Ferrari Manicotto Sg Spider Sx - 830179$91.08Special order, ships in 7-14 days
41961967Ferrari Trombetta Sg Spider Dx - 961967$31.99Special order, ships in 7-14 days
42961968Ferrari Trombetta Sg Spider Sx - 961968$31.99Special order, ships in 7-14 days
43901095Ferrari Gasket - 901095$8.72Special order, ships in 7-14 days
44980026Ferrari Retina Trombette Sg Spider - 980026$78.76Special order, ships in 7-14 days
4512638170Ferrari WASHER - 12638170Price on requestContact us for price and availability
4612601174Ferrari Wavy Washer 5mm - 12601174$0.12Available, ships in 3-6 days
4710725017Ferrari Nut - 10725017$0.79Special order, ships in 7-14 days
48296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
49880303Ferrari Bracket - RH Coiled Pipe - 880303$44.24Special order, ships in 7-14 days
50842654Ferrari Bracket for Rigid Pipe - 842654$44.29Special order, ships in 7-14 days
51225408Ferrari Cylindrical Bushing - 225408$12.99Special order, ships in 7-14 days
5212644404Ferrari Washer - 12644404SupersededOrder 12644424 instead
5212644424Ferrari Washer 6.15-15 x 1 - 12644424$0.12Available, ships in 3-6 days
5314040614Ferrari Flanged Nut 6mm - 14040614$0.27Available, ships in 3-6 days
54231624Ferrari Allen Screw M6 x 45 - 231624SupersededOrder 14305924 instead
55895925Ferrari Supporto Sens Temp Sg Dx - 895925$91.08Special order, ships in 7-14 days
55895926Ferrari Supporto Sens Temp Sg Sx - 895926$86.15Special order, ships in 7-14 days
56890950Ferrari Measured Air Temperature Sen - 890950$177.00Special order, ships in 7-14 days
57946187Ferrari Low Pressure Hose - 946187$270.83Special order, ships in 7-14 days
58967492Ferrari Guarnizione - 967492$9.39Special order, ships in 7-14 days
59969054Ferrari Lateral Mesh - 969054$51.67Special order, ships in 7-14 days
6014040511Ferrari Nut - Self Locking - 14040511$1.11Special order, ships in 7-14 days
61310096Ferrari Sound Generator - 310096$417.97Special order, ships in 7-14 days
62946186Ferrari High Pressure Hose - 946186$167.40Special order, ships in 7-14 days
63810381Ferrari Reducer For Resonator - 810381$20.41Special order, ships in 7-14 days
64296781Ferrari Hose Clamp - 296781$5.59In stock
65296783Ferrari Screw Collar 40-60mm - 296783$20.09Available, ships in 3-6 days
66314100Ferrari Rivet - 314100$0.96Special order, ships in 7-14 days
