Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.11 - FUEL TANK (diagram 0060)

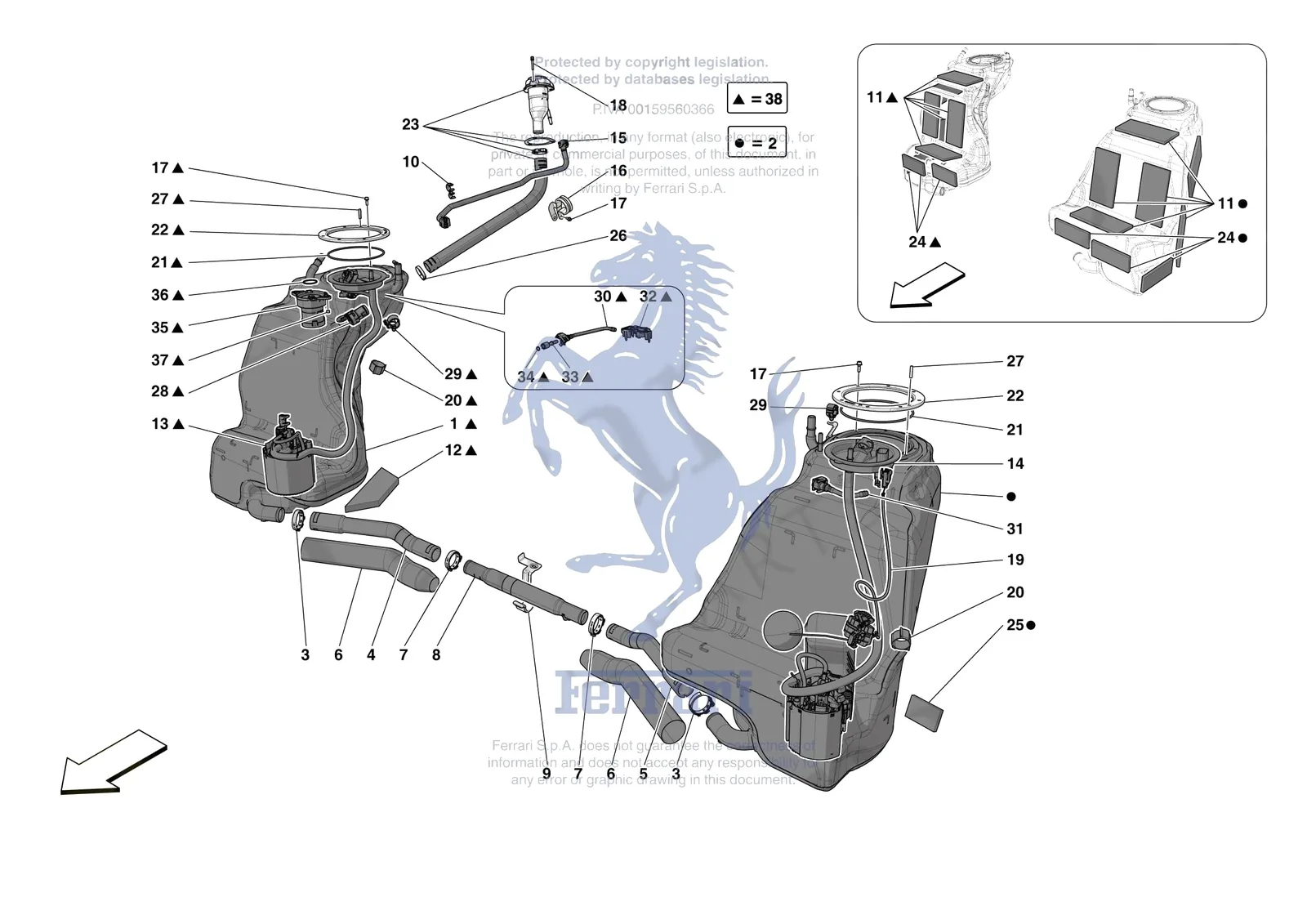

Exploded view of the [mechanical system] - d.11 - fuel tank on the Ferrari SF90 XX Spider, with 45 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.11 - FUEL TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
170127Ferrari Clip - 170127SupersededOrder 10718670 instead
280846Ferrari Collar - 280846SupersededOrder 11449470 instead
850136Ferrari Cpl Fuel Pump E Flangia - 850136$1,998.24Special order, ships in 7-14 days
957847Ferrari Cpl Fuel Pump E Flangia - 957847Price on requestContact us for price and availability
850148Ferrari Fuel Pump E Sens. Press Cp - 850148$2,206.39Special order, ships in 7-14 days
957848Ferrari Fuel Pump E Sens. Press Cp - 957848Price on requestContact us for price and availability
181929Ferrari On-Off Valve - 181929$440.56Special order, ships in 7-14 days
895897Ferrari Tampone 120X40X8 - 895897$4.66Special order, ships in 7-14 days
2802314Ferrari Serbatoio Carb.Sx. Con Tappi - 802314$7,984.74Special order, ships in 7-14 days
3302682Ferrari Collar - 302682$6.10Available, ships in 3-6 days
4779471Ferrari RH Connector Hose - 779471$192.03Special order, ships in 7-14 days
5779472Ferrari LH Connector Hose - 779472$152.62Special order, ships in 7-14 days
6769419Ferrari Guaina Protezione Manicott - 769419$120.62Special order, ships in 7-14 days
711449470Ferrari Collar - 11449470$5.65Special order, ships in 7-14 days
8878549Ferrari Tubo Collegamento Serbatoi B - 878549$150.17Special order, ships in 7-14 days
9959437Ferrari Fuel Balance Pipe Mounting Bracket - 959437$51.67Special order, ships in 7-14 days
10303321Ferrari Clip - 303321$2.61Special order, ships in 7-14 days
11827818Ferrari BUSH - 827818Price on requestContact us for price and availability
12825619Ferrari BUSH - 825619Price on requestContact us for price and availability
13838726Ferrari Fuel Pump E Sens. Press Cp - 838726$2,855.83Special order, ships in 7-14 days
14838682Ferrari Cpl Fuel Pump E Flangia - 838682$2,764.25Special order, ships in 7-14 days
15779469Ferrari Fuel Vapour Recirculation Pi - 779469$135.39Special order, ships in 7-14 days
16858464Ferrari Fuel Filler Pipe Mounting Br - 858464$140.32Special order, ships in 7-14 days
17256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
18791355Ferrari Screw - 791355$10.02Special order, ships in 7-14 days
19829187Ferrari Fls E Adattatore Angolare - 829187$934.32Special order, ships in 7-14 days
20254078Ferrari Clip - 254078$3.68Special order, ships in 7-14 days
21899649Ferrari O-Ring - 899649$32.76Special order, ships in 7-14 days
22753437Ferrari Flange Fastener Ring - 753437$1,617.32Special order, ships in 7-14 days
23898455Ferrari Compl. Fuel Filler Neck - 898455$2,110.49Special order, ships in 7-14 days
24827819Ferrari Tampone 120X40X8 - 827819$5.14Special order, ships in 7-14 days
25877758Ferrari BUSH - 877758Price on requestContact us for price and availability
2610718670Ferrari Collar - 10718670$2.59Available, ships in 3-6 days
2711001124Ferrari Stud Bolt - 11001124$137.67Available, ships in 3-6 days
28237407Ferrari On-Off Valve - 237407$56.52Special order, ships in 7-14 days
29259508Ferrari Clip 15.8mm-18.5mm - 259508$1.25Special order, ships in 7-14 days
30903866Ferrari Compl. RH Pipe Valve - Rov - 903866$211.73Special order, ships in 7-14 days
31903865Ferrari Compl. LH Pipe Valve - Rov - 903865$228.97Special order, ships in 7-14 days
32856964Ferrari Pipe Valve Mount - 856964$15.22Special order, ships in 7-14 days
33883189Ferrari Pipe Valve Spigot - 883189$167.40Special order, ships in 7-14 days
34899646Ferrari O-Ring - 899646$2.03Special order, ships in 7-14 days
35877759Ferrari Fuel Vapour Limiter Valve - - 877759Price on requestContact us for price and availability
36899647Ferrari O-Ring - 899647$18.57Special order, ships in 7-14 days
37892983Ferrari NUT - 892983Price on requestContact us for price and availability
38903868Ferrari COMPL. RH FUEL TANK - 903868Price on requestContact us to order
