Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

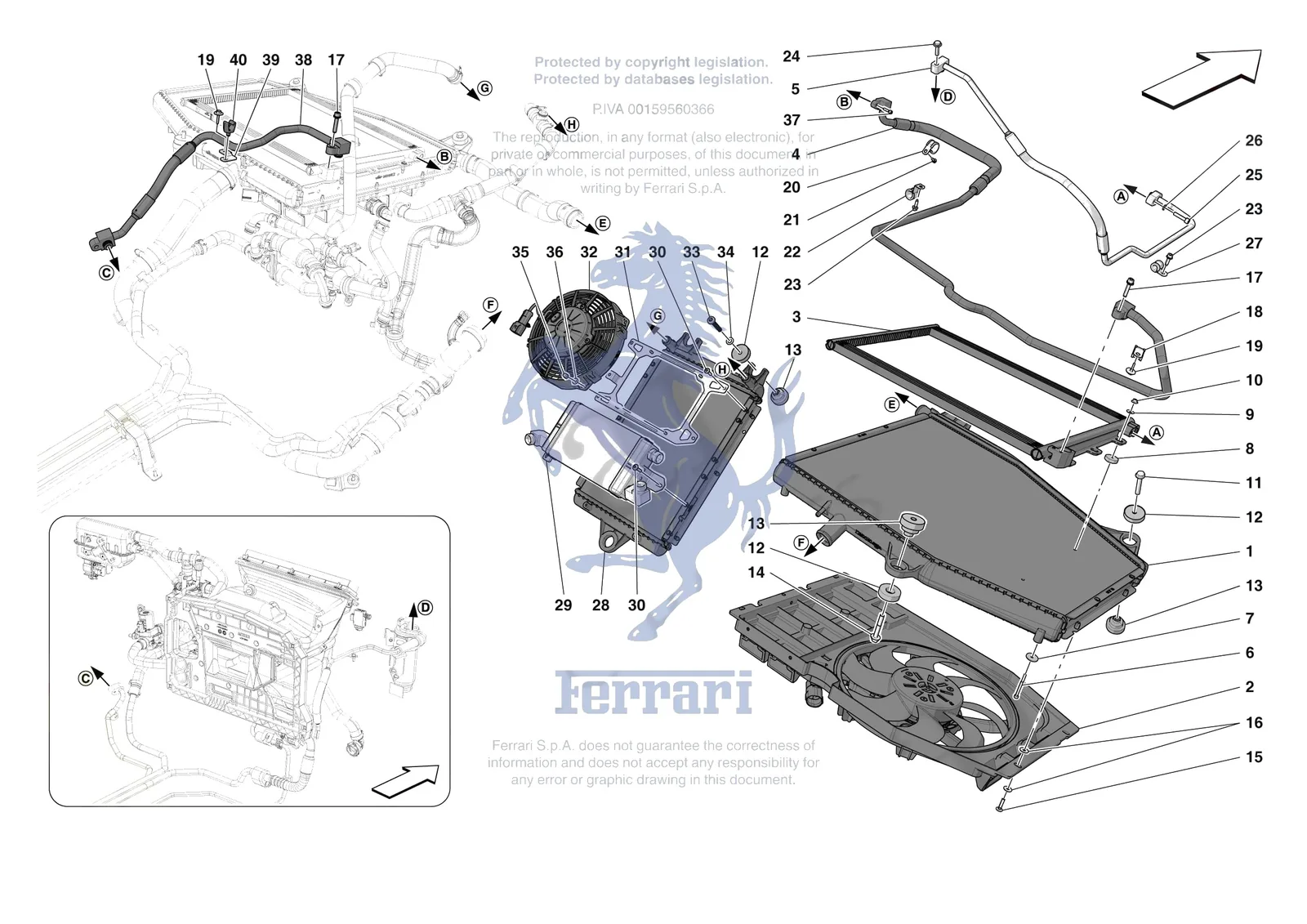

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari SF90 XX Spider, with 50 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14054042Ferrari Nut - 14054042SupersededOrder 168698 instead
14054048Ferrari Nut - 14054048SupersededOrder 168698 instead
216568Ferrari Screw 6x30 - 216568SupersededOrder 231621 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1958284Ferrari Radiatore Acqua Dx - 958284$2,631.07Special order, ships in 7-14 days
1958281Ferrari Radiatore Acqua Sx - 958281$2,631.07Special order, ships in 7-14 days
2968998Ferrari Cappa Ventola Dx - 968998$1,378.85Special order, ships in 7-14 days
2968997Ferrari Cappa Ventola Sx - 968997$1,378.85Special order, ships in 7-14 days
3262836Ferrari A/C Condenser - 262836$1,308.23Available, ships in 3-6 days
3798958Ferrari Condensatore 2 Pass - 798958$874.21Special order, ships in 7-14 days
4940357Ferrari Condenser Connector Pipe - 940357$615.54Special order, ships in 7-14 days
5860444Ferrari Tubo Da Condens. A Filtro D - 860444$320.06Special order, ships in 7-14 days
6866663Ferrari Allen Head Bolt M4 X 60 Gambo L - 866663$21.64Special order, ships in 7-14 days
7883284Ferrari Flat Washer 5.5 X 25 - 883284$3.03Special order, ships in 7-14 days
8883283Ferrari Distanziale 4 X 25 X - 883283$7.63Special order, ships in 7-14 days
912638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
10899480Ferrari Self-Locking Nut M4 - 899480$0.84Special order, ships in 7-14 days
11986344Ferrari Flanged Screw M8 X 50 - 986344$4.56Special order, ships in 7-14 days
12247751Ferrari Washer - 247751$11.56Available, ships in 3-6 days
13237478Ferrari Mounting - 237478$36.86Available, ships in 3-6 days
1416287734Ferrari Screw M8 x 50 - 16287734$2.59Available, ships in 3-6 days
15747853Ferrari Screw - 747853$1.48Special order, ships in 7-14 days
1613577724Ferrari Washer - 13577724$3.68Special order, ships in 7-14 days
17231621Ferrari Allen Screw M6 x 30 TCEI - 231621$0.73Available, ships in 3-6 days
1810441590Ferrari P Clip Bracket With Sheath 16mm - 10441590$0.98Available, ships in 3-6 days
1915699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
2010441990Ferrari P Clip Bracket With Sheath - 10441990$1.42Available, ships in 3-6 days
21256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
22868483Ferrari Condenser Connector Pipe Bra - 868483$31.99Special order, ships in 7-14 days
2311566524Ferrari Screw M5X20 - 11566524$0.98Available, ships in 3-6 days
2411626124Ferrari Screw 6x25 - 11626124SupersededOrder 11612826 instead
2411612826Ferrari Screw M6 x 25 - 11612826$6.75Available, ships in 3-6 days
2514305487Ferrari Allen Head Bolt M 6X 25 - 14305487$1.72Special order, ships in 7-14 days
2614499378Ferrari Washer - 14499378$1.55Special order, ships in 7-14 days
2710441290Ferrari P Clip Bracket With Sheath 28mm D.10 - 10441290$1.02Available, ships in 3-6 days
28886238Ferrari Inverter Cooling Water Radia - 886238$1,083.38Special order, ships in 7-14 days
29954663Ferrari Gear Oil Radiator - 954663$1,083.38Special order, ships in 7-14 days
3085692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
31943101Ferrari Fan Mounting Bracket - 943101$135.39Special order, ships in 7-14 days
32319950Ferrari Electric Fan For Intercooler - 319950$664.78Special order, ships in 7-14 days
33942820Ferrari Screw - 942820$6.54Special order, ships in 7-14 days
3411193874Ferrari Washer D.8.4-16x1.4 - 11193874$0.12Available, ships in 3-6 days
35168698Ferrari Nut M5 x 11 - 168698$3.68Available, ships in 3-6 days
3614446624Ferrari Washer - 14446624$0.13Available, ships in 3-6 days
37231620Ferrari/Maserati Screw - 231620$0.58In stock
38912288Ferrari Tubo Mandata Freon A Condens - 912288$344.69Special order, ships in 7-14 days
39952089Ferrari Bracket - Freon Delivery Pipe to Condensor - 952089$17.46Special order, ships in 7-14 days
40323388Ferrari Clip - 323388$6.10Special order, ships in 7-14 days

All SF90 XX Spider diagrams
