Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD (diagram 0069)

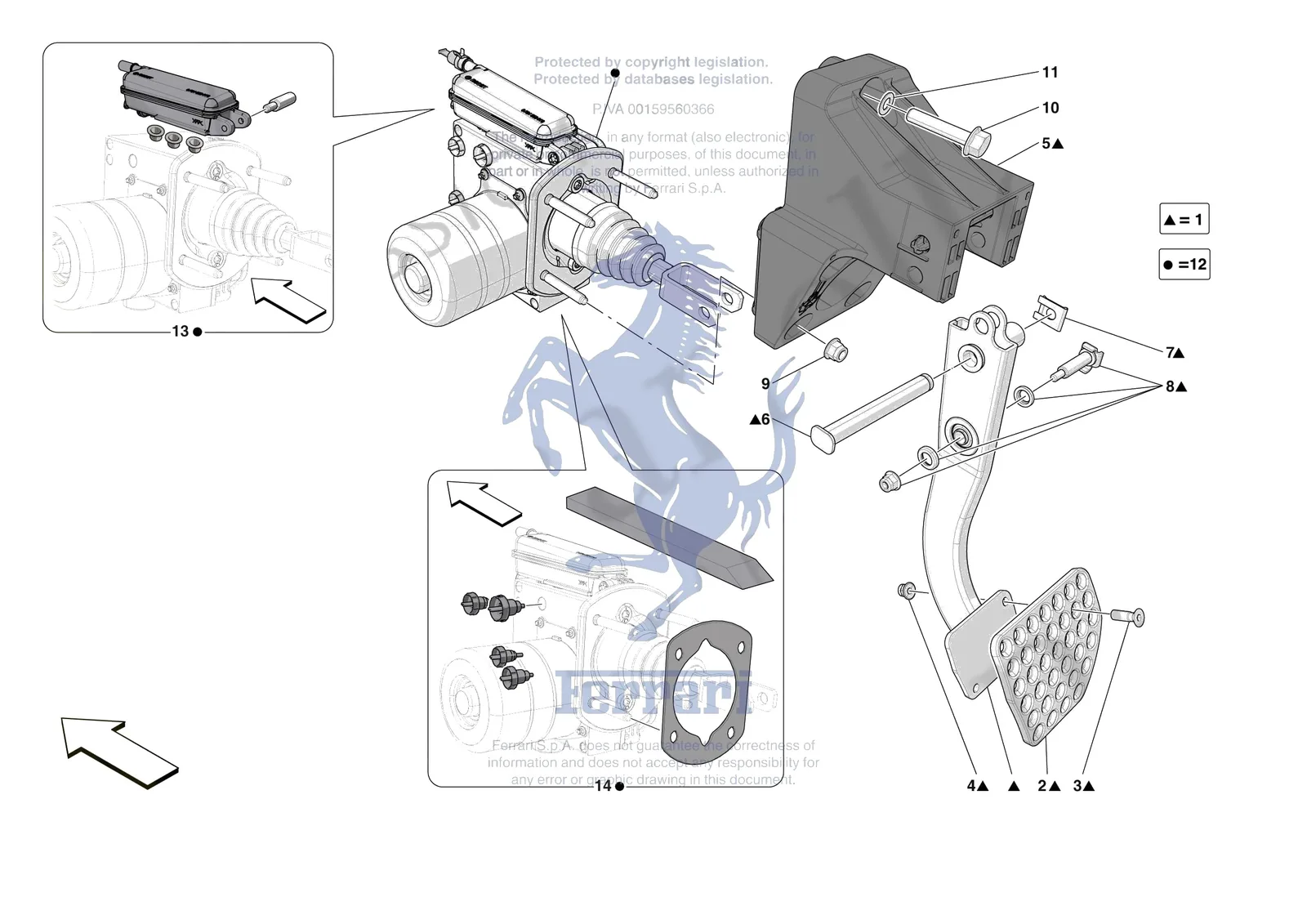

Exploded view of the [mechanical system] - d.20 - pedal board on the Ferrari SF90 XX Spider, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.20 - PEDAL BOARD exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0069.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 10615670 | Ferrari Washer - 10615670 | Superseded | Order 12601374 instead | |
| 10615671 | Ferrari Washer - 10615671 | Superseded | Order 12601374 instead | |
| 10615674 | Ferrari Washer - 10615674 | Superseded | Order 12601374 instead | |
| 10615679 | Ferrari Washer - 10615679 | Superseded | Order 12601374 instead | |
| 12601370 | Ferrari Washer - 12601370 | Superseded | Order 12601374 instead | |
| 12601379 | Ferrari Washer - 12601379 | Superseded | Order 12601374 instead | |
| 1 | 773367 | Ferrari Compl. Pedal Board - 773367 | $1,131.03 | Special order, ships in 7-14 days |
| 1 | 773370 | Ferrari Compl. Pedal Board - 773370 | $1,180.21 | Special order, ships in 7-14 days |
| 2 | 240987 | Ferrari Drilled Plate - 240987 | $417.97 | Special order, ships in 7-14 days |
| 3 | 933730 | Ferrari Screw - 933730 | $17.02 | Special order, ships in 7-14 days |
| 4 | 12578111 | Ferrari Flanged Nyloc Nut - 12578111 | $0.50 | Available, ships in 3-6 days |
| 5 | 773369 | Ferrari Pedal Board Mounting - 773369 | $393.38 | Special order, ships in 7-14 days |
| 5 | 773372 | Ferrari Pedal Board Mounting - 773372 | $368.79 | Special order, ships in 7-14 days |
| 6 | 831281 | Ferrari Brake Pedal Pivot Pin - 831281 | $130.29 | Special order, ships in 7-14 days |
| 7 | 842845 | Ferrari Clip - 842845 | $7.63 | Special order, ships in 7-14 days |
| 8 | 896903 | Ferrari Ipb-Pedal Board Fastener Pin - 896903 | $191.76 | Special order, ships in 7-14 days |
| 9 | 12578211 | Ferrari Flanged Nyloc Nut - 12578211 | $0.57 | Special order, ships in 7-14 days |
| 10 | 16287524 | Ferrari Flanged Bolt M8 x 40 - 16287524 | $2.59 | Available, ships in 3-6 days |
| 11 | 12601374 | Ferrari Wavy Washer 8mm - 12601374 | $3.12 | Available, ships in 3-6 days |
| 12 | 948866 | Ferrari Ipb - 948866 | $6,705.67 | Special order, ships in 7-14 days |
| 13 | 898168 | Ferrari Rsv Manifold Kit - 898168 | $524.51 | Special order, ships in 7-14 days |
| 14 | 898169 | Ferrari Ipb Installation Kit - 898169 | $56.79 | Special order, ships in 7-14 days |
