Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0077)

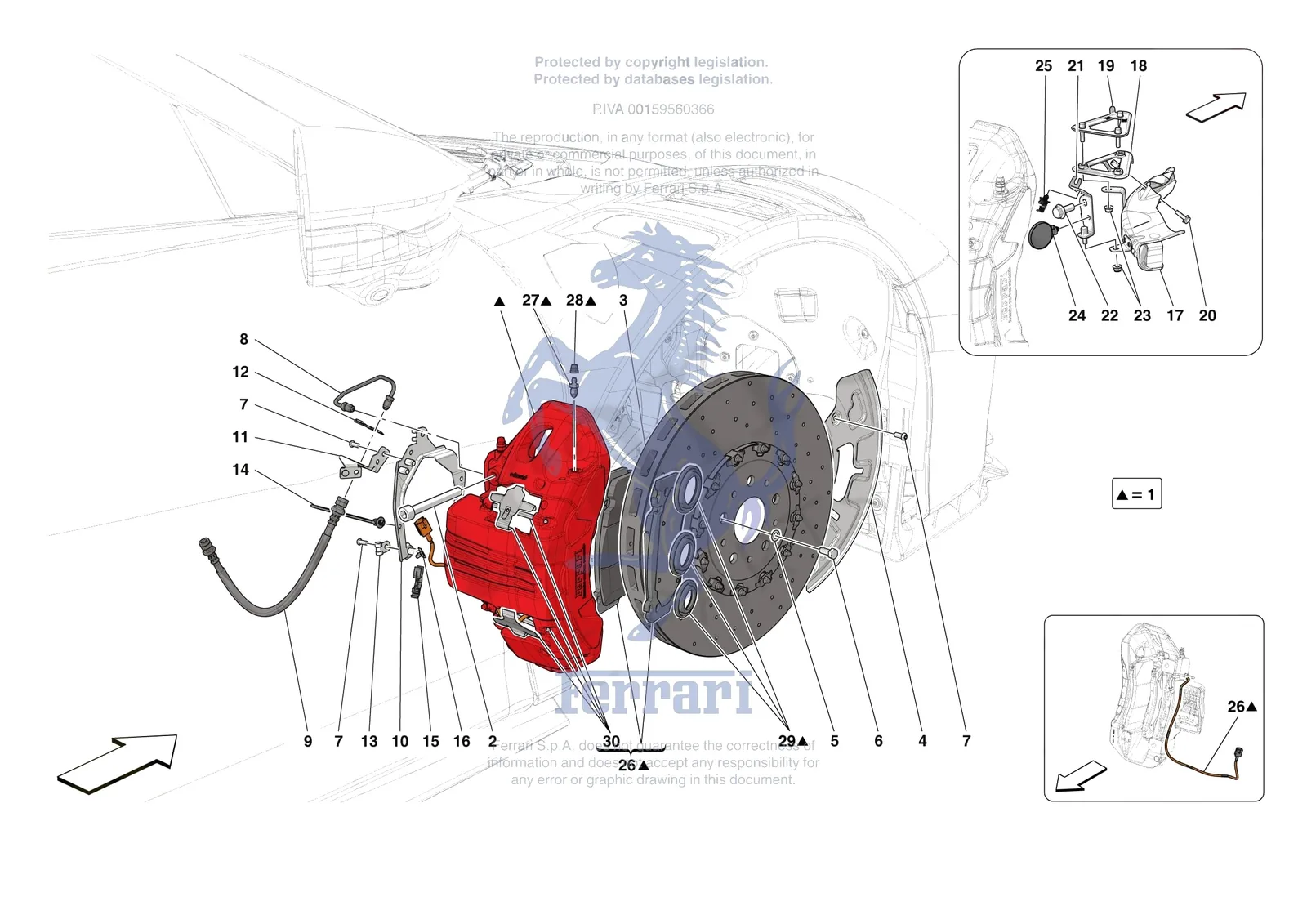

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari SF90 XX Spider, with 60 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/sf90-xx-spider/0077.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12486580 | Ferrari Botton - 12486580 | Superseded | Order 204781 instead | |
| 175871 | Ferrari Clip - 175871 | Superseded | Order 204781 instead | |
| 323365 | Ferrari Connector Fastener Clip - 323365 | Superseded | Order 204781 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 1 | 890716 | Ferrari COMPLETE L.H. FRONT CALIPER - 890716 | Price on request | Contact us for price and availability |
| 1 | 890717 | Ferrari COMPLETE L.H. FRONT CALIPER - 890717 | Price on request | Contact us for price and availability |
| 1 | 890718 | Ferrari COMPLETE L.H. FRONT CALIPER - 890718 | Price on request | Contact us for price and availability |
| 1 | 890719 | Ferrari COMPLETE L.H. FRONT CALIPER - 890719 | Price on request | Contact us for price and availability |
| 1 | 890721 | Ferrari COMPLETE L.H. FRONT CALIPER - 890721 | Price on request | Contact us for price and availability |
| 1 | 890722 | Ferrari COMPLETE L.H. FRONT CALIPER - 890722 | Price on request | Contact us for price and availability |
| 1 | 890742 | Ferrari COMPLETE L.H. FRONT CALIPER - 890742 | Price on request | Contact us for price and availability |
| 1 | 890743 | Ferrari COMPLETE L.H. FRONT CALIPER - 890743 | $8,425.36 | Special order, ships in 7-14 days |
| 1 | 899625 | Ferrari Complete L.H. Front Caliper - 899625 | $8,266.93 | Special order, ships in 7-14 days |
| 1 | 890758 | Ferrari COMPLETE RH FRONT CALIPER - 890758 | Price on request | Contact us for price and availability |
| 1 | 890766 | Ferrari COMPLETE RH FRONT CALIPER - 890766 | Price on request | Contact us for price and availability |
| 1 | 890767 | Ferrari COMPLETE RH FRONT CALIPER - 890767 | Price on request | Contact us for price and availability |
| 1 | 890772 | Ferrari COMPLETE RH FRONT CALIPER - 890772 | Price on request | Contact us for price and availability |
| 1 | 890786 | Ferrari COMPLETE RH FRONT CALIPER - 890786 | Price on request | Contact us for price and availability |
| 1 | 890839 | Ferrari COMPLETE RH FRONT CALIPER - 890839 | Price on request | Contact us for price and availability |
| 1 | 890840 | Ferrari COMPLETE RH FRONT CALIPER - 890840 | Price on request | Contact us for price and availability |
| 1 | 891033 | Ferrari COMPLETE RH FRONT CALIPER - 891033 | Price on request | Contact us for price and availability |
| 1 | 899898 | Ferrari Complete RH Front Caliper - 899898 | $8,266.93 | Special order, ships in 7-14 days |
| 2 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 3 | 833468 | Ferrari Front Brake Disc - 833468 | $9,772.43 | Special order, ships in 7-14 days |
| 3 | 843297 | Ferrari FRONT BRAKE DISC - 843297 | $10,160.30 | Special order, ships in 7-14 days |
| 4 | 321235 | Ferrari Front LH Disc Shield - 321235 | $81.11 | Special order, ships in 7-14 days |
| 4 | 321236 | Ferrari Front RH Disc Shield - 321236 | $81.11 | Special order, ships in 7-14 days |
| 5 | 228132 | Ferrari Spring Washer - 228132 | $0.59 | Available, ships in 3-6 days |
| 6 | 228131 | Ferrari Screw M8 x 20 - 228131 | $1.53 | Available, ships in 3-6 days |
| 7 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 8 | 843130 | Ferrari Tubo Freno Da Pinaz A Flex.D - 843130 | $44.29 | Special order, ships in 7-14 days |
| 8 | 843127 | Ferrari Tubo Freno Da Pinza A Flex.S - 843127 | $44.29 | Special order, ships in 7-14 days |
| 9 | 777000 | Ferrari Brake Hose L.376 mm - 777000 | $103.25 | Available, ships in 3-6 days |
| 10 | 956357 | Ferrari LH Front Brake Hose Mounting - 956357 | $132.94 | Special order, ships in 7-14 days |
| 10 | 956359 | Ferrari RH Front Brake Hose Mounting - 956359 | $132.94 | Special order, ships in 7-14 days |
| 11 | 877584 | Ferrari LH Front Brake Hose Bracket - 877584 | $41.82 | Special order, ships in 7-14 days |
| 11 | 877586 | Ferrari RH Front Brake Hose Bracket - 877586 | $41.82 | Special order, ships in 7-14 days |
| 12 | 326837 | Ferrari Clip - 326837 | $4.77 | Available, ships in 3-6 days |
| 13 | 10440890 | Ferrari P Clip Bracket With Sheath - 10440890 | $1.04 | Available, ships in 3-6 days |
| 14 | 918784 | Ferrari Clamp Hellermann Pa4.6 15 - 918784 | $0.82 | Special order, ships in 7-14 days |
| 15 | 310942 | Ferrari Triple Clip - 310942 | $3.26 | Special order, ships in 7-14 days |
| 16 | 204781 | Ferrari Clip - 204781 | $1.67 | Available, ships in 3-6 days |
| 17 | 876350 | Ferrari Compl. LH Front Brake Air Du - 876350 | $192.03 | Special order, ships in 7-14 days |
| 17 | 876365 | Ferrari Compl. RH Front Brake Air Du - 876365 | $192.03 | Special order, ships in 7-14 days |
| 18 | 957592 | Ferrari Fastener Plate For LH Front - 957592 | $204.34 | Special order, ships in 7-14 days |
| 18 | 957600 | Ferrari Fastener Plate For RH Front - 957600 | $204.34 | Special order, ships in 7-14 days |
| 19 | 957591 | Ferrari Fastener Plate For Front Duc - 957591 | $76.30 | Special order, ships in 7-14 days |
| 20 | 84487600 | Ferrari Screw - 84487600 | $1.34 | Special order, ships in 7-14 days |
| 21 | 876335 | Ferrari Cable Bracket On LH Front Su - 876335 | $86.15 | Special order, ships in 7-14 days |
| 21 | 876349 | Ferrari Cable Bracket On RH Front Su - 876349 | $86.15 | Special order, ships in 7-14 days |
| 22 | 16288434 | Ferrari Screw 10X1.25X - 16288434 | $1.23 | Special order, ships in 7-14 days |
| 23 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 24 | 217854 | Ferrari CLAMP - 217854 | $0.52 | Available, ships in 3-6 days |
| 25 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 26 | 55004277 | Ferrari Set Of Front Pads With Sprin - 55004277 | $5,517.41 | Special order, ships in 7-14 days |
| 26 | 70007774 | Ferrari Set Of Front Pads With Spring - 70007774 | $4,663.43 | Available, ships in 3-6 days |
| 27 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 28 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 29 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 30 | 70004533 | Ferrari Spring And Pin Kit - 70004533 | $238.47 | Special order, ships in 7-14 days |
