Ferrari SF90 XX Spider — [MECHANICAL SYSTEM] - D.36 - HV BATTERY COOLING (diagram 0091)

Exploded view of the [mechanical system] - d.36 - hv battery cooling on the Ferrari SF90 XX Spider, with 48 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

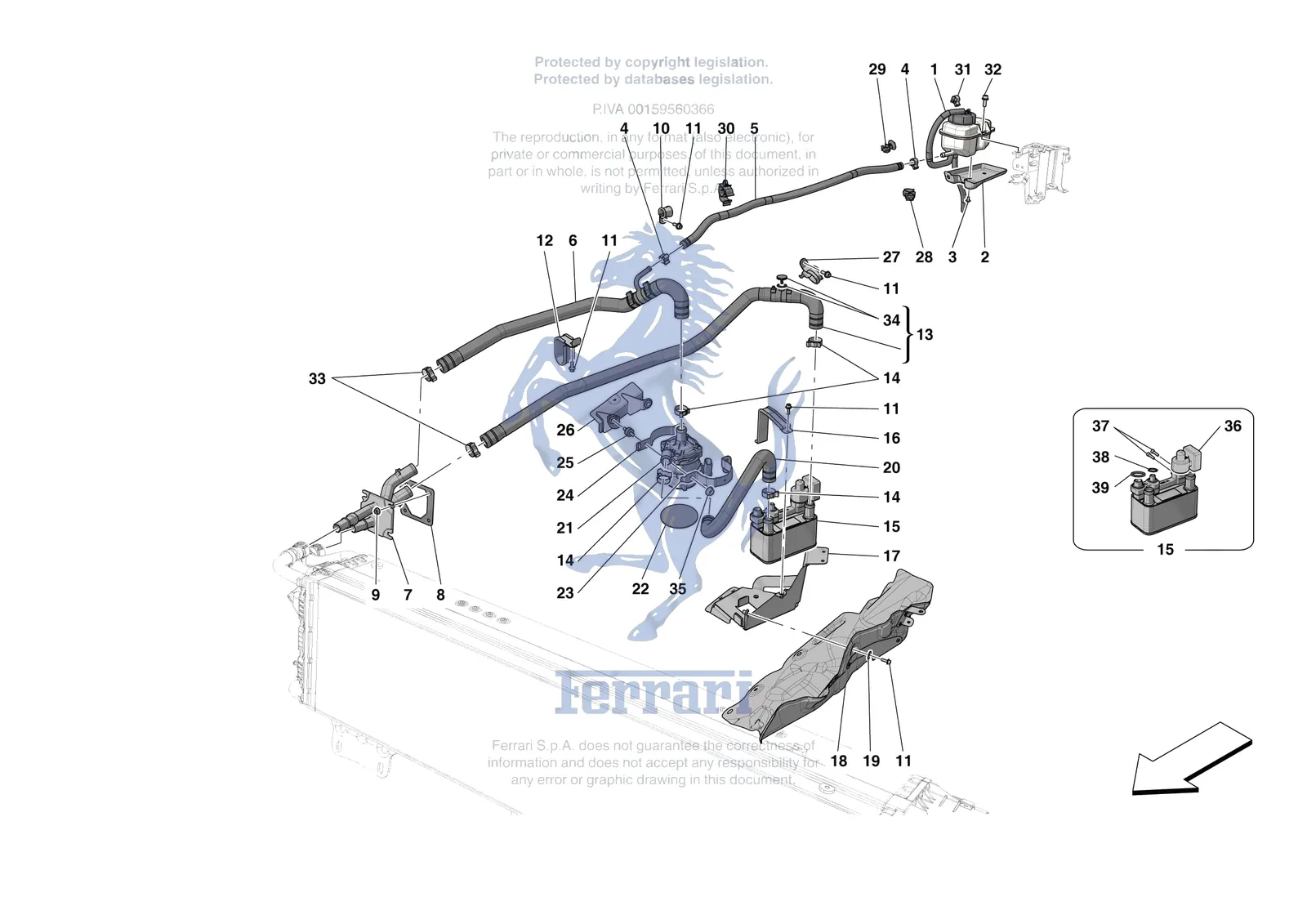

Ferrari SF90 XX Spider [MECHANICAL SYSTEM] - D.36 - HV BATTERY COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
198253Ferrari Clip - 198253$7.40Special order, ships in 7-14 days
262112Ferrari Collar - 262112SupersededOrder 262111 instead
852488Ferrari Manicotto Chiller Parafiam - 852488$221.59Special order, ships in 7-14 days
834147Ferrari Manicotto Pompa Parafiamma - 834147$492.43Special order, ships in 7-14 days
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
1963943Ferrari Serbatoio Raff. Batterie Cpl - 963943$320.06Special order, ships in 7-14 days
2911872Ferrari Riparo Serbatoio Batterie - 911872$108.31Special order, ships in 7-14 days
315689501Ferrari Screw - 15689501$0.50Available, ships in 3-6 days
315783204Ferrari Screw - 15783204$0.38Available, ships in 3-6 days
413125470Ferrari Collar - 13125470SupersededOrder 13126970 instead
5842839Ferrari Manicotto Riempimento 14X7 L - 842839$71.38Special order, ships in 7-14 days
6817301Ferrari Fireproof Pump Sleeve - 817301$517.04Special order, ships in 7-14 days
7834061Ferrari Piastra Passaparete Cpl - 834061$467.80Special order, ships in 7-14 days
8836149Ferrari Guarnizione Per Piastra Pass - 836149$37.18Special order, ships in 7-14 days
914059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
1010441490Ferrari/Maserati Retaining Clip - 10441490$1.35In stock
11256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
12820193Ferrari Part Search Results - 820193$21.85Special order, ships in 7-14 days
13817302Ferrari Manicotto Chiller Parafiam - 817302$224.04Special order, ships in 7-14 days
14830033Ferrari Collar - 830033$4.56Special order, ships in 7-14 days
15817608Ferrari Chiller - 817608$2,294.87Special order, ships in 7-14 days
16895649Ferrari HV Battery Upper Chiller Bracket - 895649$39.37Special order, ships in 7-14 days
17834187Ferrari Chiller Bracket - 834187$270.83Special order, ships in 7-14 days
18911771Ferrari Riparo Calore Imp. Raffredd - 911771$243.74Special order, ships in 7-14 days
1912643701Ferrari Flat Washer - 12643701$0.12Available, ships in 3-6 days
20820185Ferrari Manicotto Chiller Pompa - 820185$83.68Special order, ships in 7-14 days
21908587Ferrari Pump - 908587$1,661.04Special order, ships in 7-14 days
22953350Ferrari Tampone Circolare Diametro 8 - 953350$5.14Special order, ships in 7-14 days
23820192Ferrari Cavallotto Pompa - 820192$39.37Special order, ships in 7-14 days
24820191Ferrari Pump Mounting Bracket - 820191$36.92Special order, ships in 7-14 days
25267798Ferrari Plug - 267798$15.47Special order, ships in 7-14 days
26820190Ferrari Bracket - Cooling Pump to Chassis - 820190$123.09Special order, ships in 7-14 days
27881776Ferrari Staffetta Con Guaina Diametr - 881776$34.44Special order, ships in 7-14 days
28912409Ferrari Mollett.Rot M+F ?10.5-12.5 - 912409$2.61Special order, ships in 7-14 days
29912384Ferrari Rotating Clip - 912384$2.11Special order, ships in 7-14 days
30206536Ferrari Clip D.14 - 206536$0.92Special order, ships in 7-14 days
31171406Ferrari Hose Retaining Clip - 171406$1.42Available, ships in 3-6 days
32231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
33262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
3514039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
3515896214Ferrari Nut M6 x 5 - 15896214SupersededOrder 14039614 instead
36917978Ferrari Expansion Valve - 917978$831.68Special order, ships in 7-14 days
37917979Ferrari Countersunk Screw - 917979$2.38Special order, ships in 7-14 days
38819882Ferrari Washer - 819882$10.68Special order, ships in 7-14 days
39908536Ferrari Seal Washer - 908536$3.91Special order, ships in 7-14 days

All SF90 XX Spider diagrams
